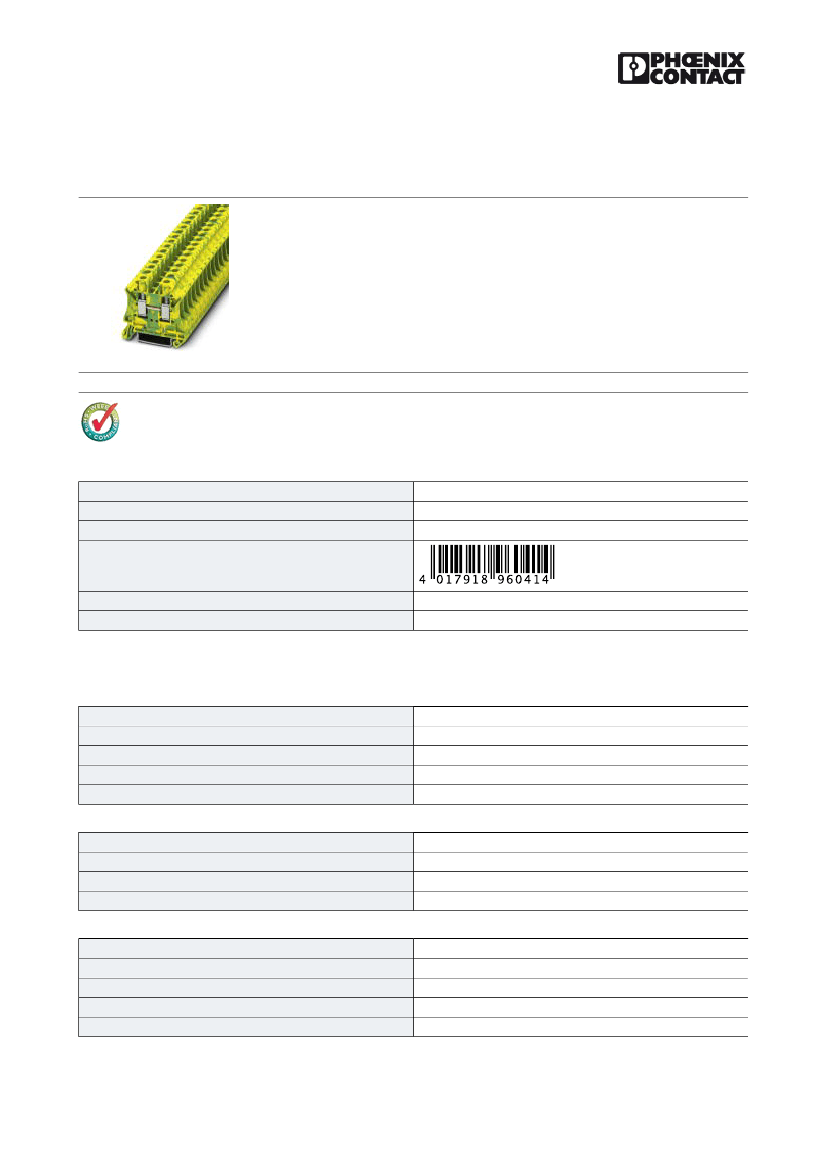

Feed-through terminal block - UT 6 PE - 3044157
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Feed-through terminal block, Connection method: Screw connection, Cross section: 0.2 mm² - 10
mm², AWG 24 - 8, Width: 8.2 mm, Color: green-yellow, Mounting type: NS 35/7.5, NS 35/15
Key commercial data
Packing unit
Minimum order quantity
Catalog page
GTIN
Custom tariff number
Country of origin
85369010
GERMANY
1
50
Page 35 (CL1-2011)
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
1
2
green-yellow
PA
V0
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
8.2 mm
47.7 mm
47.5 mm
55 mm
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
57 A
8 kV
3
III
I
03.10.2012 Page 1 / 13
https://www.phoenixcontact.com/us/produkte/3044157
Feed-through terminal block - UT 6 PE - 3044157
Technical data
Technical data
Connection in acc. with standard
Open side panel
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Oscillation, broadband noise test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Shock test result
Temperature index, insulating material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
IEC 60947-7-2
ja
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 1, class B, on vehicle body
f1 = 5 Hz to f2 = 150 Hz
0.02 g²/Hz
0.8 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
5g
30 ms
3
X-, Y- and Z-axis (pos. and neg.)
Test passed
130 °C
-60 °C
Connection data
Note
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule without plastic
sleeve min.
Conductor cross section stranded, with ferrule without plastic
sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve
min.
Conductor cross section stranded, with ferrule with plastic sleeve
max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, max.
Note: Product releases, connection cross sections and notes on
connecting aluminum cables can be found in the download area.
0.2 mm²
10 mm²
0.2 mm²
10 mm²
24
8
0.25 mm²
6 mm²
0.25 mm²
6 mm²
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.5 mm²
4 mm²
03.10.2012 Page 2 / 13
https://www.phoenixcontact.com/us/produkte/3044157
Feed-through terminal block - UT 6 PE - 3044157
Technical data
Connection data
2 conductors with same cross section, stranded, ferrules without
plastic sleeve, min.
2 conductors with same cross section, stranded, ferrules without
plastic sleeve, max.
Connection method
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
0.25 mm²
1.5 mm²
Screw connection
10 mm
A5
M4
1.5 Nm
1.8 Nm
Classifications
eclass
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27141118
27141118
27141118
27141118
27141141
27141141
etim
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000901
EC000901
EC000901
EC000901
unspsc
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
CSA / UL Recognized / VDE report with production monitoring / cUL Recognized / LR / GL / DNV / RS / IECEE CB Scheme / GOST /
cULus Recognized
03.10.2012 Page 3 / 13
https://www.phoenixcontact.com/us/produkte/3044157
Feed-through terminal block - UT 6 PE - 3044157
Approvals
IECEE CB Scheme
mm²/AWG/kcmil
0.2-6
GOST
cULus Recognized

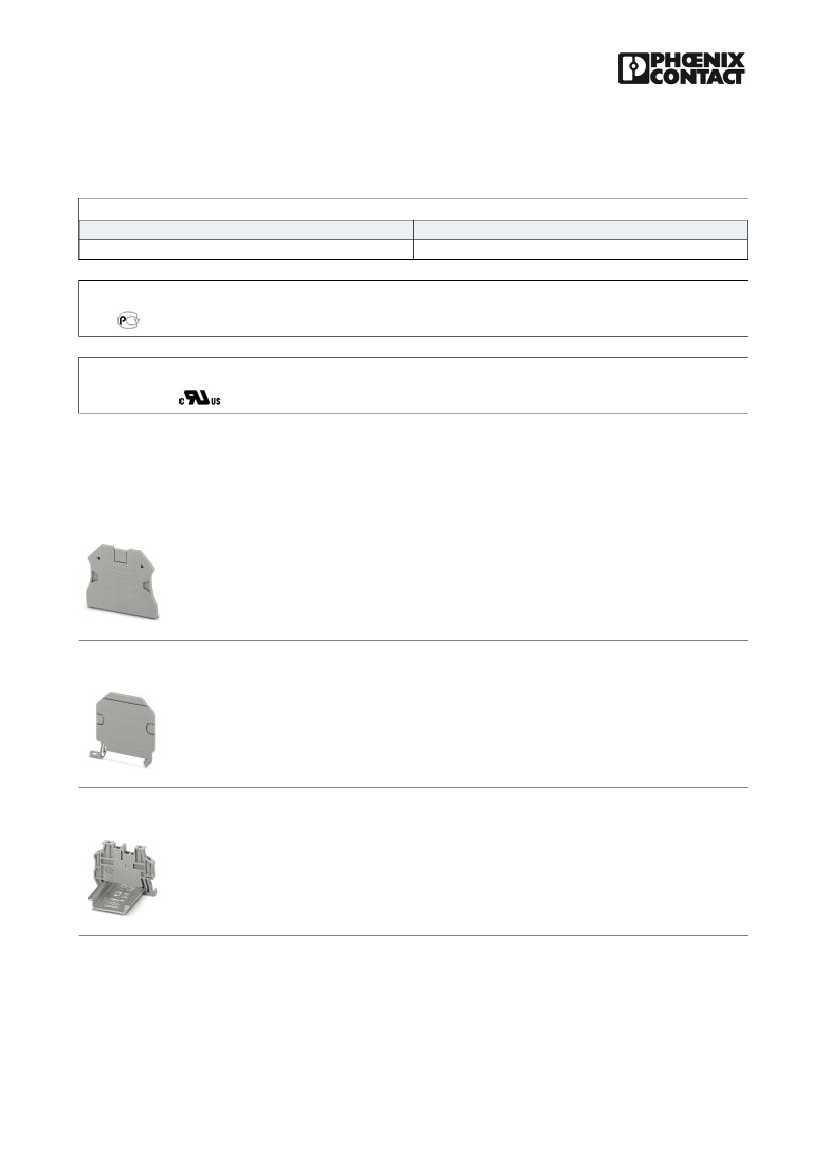

Accessories
Accessories
Assembly
End cover - D-UT 2,5/10 - 3047028
End cover, Length: 47.7 mm, Width: 2.2 mm, Height: 48.4 mm, Color: gray
Partition plate - ATP-UT - 3047167
Partition plate, Length: 50 mm, Width: 2.2 mm, Height: 48 mm, Color: gray
End clamp - CLIPFIX 35-5 - 3022276
Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, can be fitted with ZB 5 and ZBF 5
zack marker strip, KLM 2, KLM3, and KML3L terminal strip marker, parking option for FBS...5, FBS...6, KSS
5, KSS 6, width: 5.15 mm, color: gray
03.10.2012 Page 5 / 13
