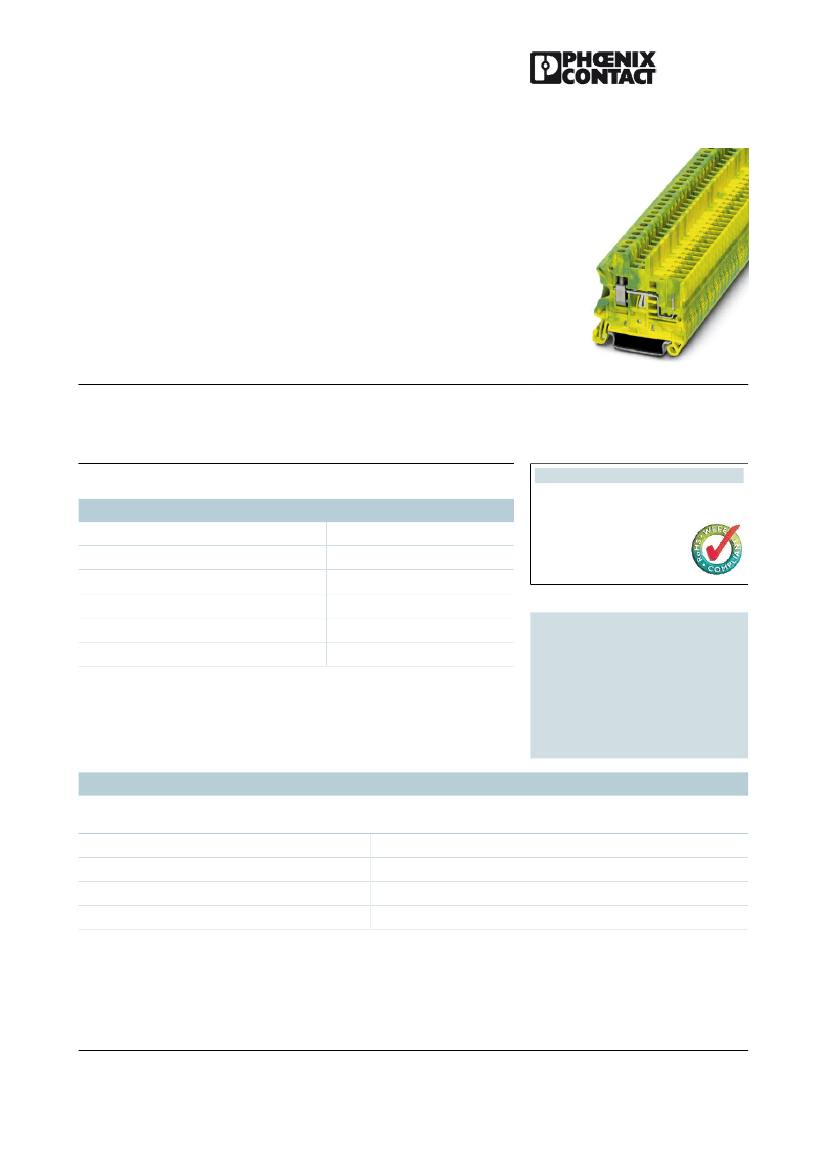

Extract from the online
catalog
UT 2,5/1P-PE
Order No.: 3045033
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3045033
Screw terminal block, Type of connection: Screw connection, Screw
connection, Cross section: 0.14 mm² - 4 mm², AWG 26 - 12, Width: 5.2
mm, Color: green-yellow, Mounting type: NS 35/7.5, NS 35/15
Product notes
Commercial data
GTIN (EAN)
sales group
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918975371
A873
50 pcs.
85369010
0.011375 KG
Page 242 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
01/01/2003
Technical data
General
Number of levels
Number of connections
Color
Insulating material
1
2
green-yellow
PA
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 11
Oct 27, 2010
UT 2,5/1P-PE
Order No.: 3045033
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3045033
Inflammability class acc. to UL 94
Bridge accessories
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
Technical data
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Open side panel
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
V0
3030213 FBS 10-5
5.2 mm
47.6 mm
47.5 mm
55 mm
6 kV
3
III
I
IEC 61984
ja
0.14 mm²
4 mm²
0.14 mm²
4 mm²
26
12
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 11
Oct 27, 2010
UT 2,5/1P-PE
Order No.: 3045033
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3045033
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
Type of connection
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Certificates / Approvals
0.5 mm²
1.5 mm²
0.14 mm²
1.5 mm²
Screw connection
9 mm
A3
M3
0.5 Nm
0.6 Nm
Certification
CSA
AWG/kcmil
CUL
AWG/kcmil
UL
AWG/kcmil
Accessories
Item
Assembly
3047167
3022276
ATP-UT
CLIPFIX 35-5
Designation
CSA, CUL, UL
26-12
26-12
26-12
Description
Partition plate, Length: 50 mm, Width: 2 mm, Height: 48 mm,
Color: gray
Snap-on end bracket, for NS 35/7.5 or NS 35/15 DIN rail, can be
fitted with Zack strip ZB 5 and ZBF 5, terminal strip marker KLM
2 and KLM, parking facility for FBS...5, FBS...6, KSS 5, KSS 6,
width: 5,15 mm, color: gray
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 11
Oct 27, 2010
UT 2,5/1P-PE
Order No.: 3045033
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3045033
3047154
0801762
1207640
1207653
1207666
0801733
0801681
1201756
1201895
1207679
1207682
1207695
1201730
1201714
1201798
D-UT 2,5/1P
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 755MM
NS 35/ 7,5 PERF 955MM
NS 35/ 7,5 PERF 1155MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/15 AL UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 755MM
NS 35/15 PERF 955MM
NS 35/15 PERF 1155MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
End cover, Length: 47.6 mm, Width: 2.2 mm, Height: 48.4 mm,
Color: gray
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
NS 35 DIN rail, height 7.5 mm, length 755 mm
NS35 DIN rail, height 7.5 mm, length 955 mm
NS 35 DIN rail, height 7.5 mm, length 1155 mm
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
NS 35 DIN rail, perforated, height 15 mm, length 755 mm
NS 35 DIN rail, perforated, height 15 mm, length 955 mm
NS 35 DIN rail, perforated, height 15 mm, length 1155 mm
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Bridges
3030161
3030174
3030187
3030190
3030213
3030226
3038930
General
3060445
UT 2,5/1P-F
Screw flange, for screwing COMBI plugs, with the same structure
and pitch as the relevant COMBI terminal blocks
FBS 2-5
FBS 3-5
FBS 4-5
FBS 5-5
FBS 10-5
FBS 20-5
FBS 50-5
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge, Number of positions: 20, Color: red
Plug-in bridge, Number of positions: 50, Color: red
Marking
0811228
X-PEN 0,35
Marker pen without ink cartridge, for manual labeling of markers,
labeling extremely wipe-proof, line thickness 0.35 mm
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 11
Oct 27, 2010
UT 2,5/1P-PE
Order No.: 3045033
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3045033
1050017
5060906
ZB 5,LGS:FORTL.ZAHLEN
ZB 5/WH-100:UNBEDRUCKT
Zack marker strip, 10-section, printed horizontally: with the
numbers 1 - 10, 11 - 20 and so on up to 491 - 500, color: white
Zack strip, unprinted: 10-section, for individual labeling with M-
PEN, ZB-T or CMS system, large batch, sufficient for labeling
1000 terminal blocks, for a terminal width of 5.2 mm, color: White
Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
1050295
ZB 5:SO/CMS
Plug/Adapter
0201689
0201676
0201663
0201744
3030925
3030983
Tools
1205053
SZS 0,6X3,5
Actuation tool, for ST terminal blocks, insulated, also suitable
for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-
component grip, with non-slip grip
MPS-IH BU
MPS-IH RD
MPS-IH WH
MPS-MT
PAI-4
PS-5
Insulating sleeve, Color: blue
Insulating sleeve, Color: red
Insulating sleeve, Color: white
Test plugs
Test adapter, Color: gray
Test adapter, Color: red
Additional products
Item
Plug/Adapter
3040258
SP 2,5/ 1
Connectors, Type of connection: Spring-cage connection, Number
of positions: 1, Cross section: 0.08 mm² - 4 mm², AWG 28 - 12,
Width: 5.2 mm, Height: 39 mm, Color: gray
Connectors, Type of connection: Spring-cage connection, Number
of positions: 1, Cross section: 0.08 mm² - 4 mm², AWG 28 - 12,
Width: 5.2 mm, Height: 39 mm, Color: blue
Connectors, Type of connection: Spring-cage connection, Number
of positions: 1, Cross section: 0.08 mm² - 4 mm², AWG 28 - 12,
Width: 5.2 mm, Height: 39 mm, Color: green-yellow
Connectors, Type of connection: Spring-cage connection, Number
of positions: 2, Cross section: 0.08 mm² - 4 mm², AWG 28 - 12,
Width: 10.4 mm, Height: 39 mm, Color: gray
Connectors, Type of connection: Spring-cage connection, Number
of positions: 3, Cross section: 0.08 mm² - 4 mm², AWG 28 - 12,
Width: 15.6 mm, Height: 39 mm, Color: gray
Connectors, Type of connection: Spring-cage connection, Number
of positions: 4, Cross section: 0.08 mm² - 4 mm², AWG 28 - 12,
Width: 20.8 mm, Height: 39 mm, Color: gray
Designation
Description
3040698
SP 2,5/ 1 BU
3040708
SP 2,5/ 1 GNYE
3040261
SP 2,5/ 2
3040274
SP 2,5/ 3
3040287
SP 2,5/ 4
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 5 / 11
Oct 27, 2010
