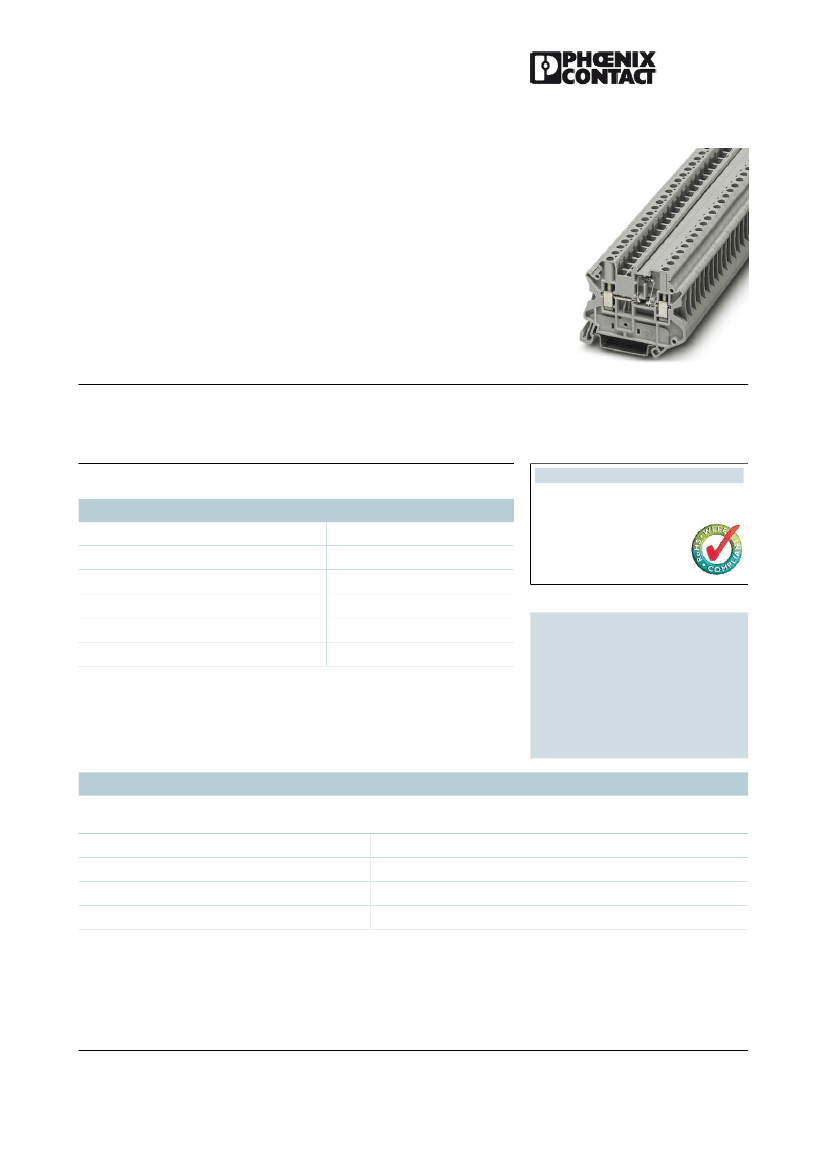

UT 4-MTD-DIO/L-R-P/P
Order No.: 3046346
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3046346
Component terminal block, Type of connection: Screw connection,
Screw connection, Cross section: 0.14 mm² - 6 mm², AWG 26 - 10,
Width: 6.2 mm, Color: gray, Mounting type: NS 35/7.5, NS 35/15
Product notes
Commercial data
GTIN (EAN)
Note
sales group
Pack
Customs tariff
Weight/Piece
4017918958602
Made-to-order
A842
50 pcs.
85369010
0.01215 KG
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
06/01/2006
Technical data
General
Number of levels
Number of connections
Color
Insulating material
1
2
gray
PA
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 6
Oct 27, 2010
UT 4-MTD-DIO/L-R-P/P
Order No.: 3046346
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3046346
Inflammability class acc. to UL 94
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
Technical data
Rated surge voltage
Surge voltage category
Nominal current I
N
Nominal voltage U
N
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
V0
6.2 mm
57.8 mm
47.5 mm
55 mm
8 kV
III
0.5 A
500 V
0.14 mm²
6 mm²
0.14 mm²
6 mm²
26
10
0.14 mm²
4 mm²
0.14 mm²
4 mm²
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 6
Oct 27, 2010
UT 4-MTD-DIO/L-R-P/P
Order No.: 3046346
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3046346
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Type of connection
Stripping length
Internal cylindrical gage
Tightening torque, min
Tightening torque max
Certificates / Approvals
0.5 mm²
2.5 mm²
Screw connection
9 mm
A4
0.6 Nm
0.8 Nm
Certification
CSA
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
CUL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
UL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
Accessories
Item
Assembly
3022276
CLIPFIX 35-5
Designation
CSA, CUL, DNV, GL, LR, UL
300 V
1A
26-10
300 V
1A
26-10
300 V
1A
26-10
Description
Snap-on end bracket, for NS 35/7.5 or NS 35/15 DIN rail, can be
fitted with Zack strip ZB 5 and ZBF 5, terminal strip marker KLM
2 and KLM, parking facility for FBS...5, FBS...6, KSS 5, KSS 6,
width: 5,15 mm, color: gray
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 6
Oct 27, 2010
UT 4-MTD-DIO/L-R-P/P
Order No.: 3046346
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3046346
3047141
0801762
1207640
1207653
1207666
0801733
0801681
1201756
1201895
1207679
1207682
1207695
1201730
1201714
1201798
D-UT 2,5/4-TWIN
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 755MM
NS 35/ 7,5 PERF 955MM
NS 35/ 7,5 PERF 1155MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/15 AL UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 755MM
NS 35/15 PERF 955MM
NS 35/15 PERF 1155MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
End cover, Length: 57.8 mm, Width: 2.2 mm, Height: 47.5 mm,
Color: gray
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
NS 35 DIN rail, height 7.5 mm, length 755 mm
NS35 DIN rail, height 7.5 mm, length 955 mm
NS 35 DIN rail, height 7.5 mm, length 1155 mm
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
NS 35 DIN rail, perforated, height 15 mm, length 755 mm
NS 35 DIN rail, perforated, height 15 mm, length 955 mm
NS 35 DIN rail, perforated, height 15 mm, length 1155 mm
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Bridges
3030336
3030242
3030255
3030349
3030271
3030365
Marking
1051993
0811228
1051016
B-STIFT
X-PEN 0,35
ZB 6,LGS:FORTL.ZAHLEN
Marker pen, for manual labeling of unprinted Zack strips, smear-
proof and waterproof, line thickness 0.5 mm
Marker pen without ink cartridge, for manual labeling of markers,
labeling extremely wipe-proof, line thickness 0.35 mm
Zack marker strip, 10-section, printed horizontally: with the
numbers 1 - 10, 11 - 20 and so on up to 491 - 500, color: white
FBS 2-6
FBS 3-6
FBS 4-6
FBS 5-6
FBS 10-6
FBS 20-6
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge, Number of positions: 20, Color: red
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 6
Oct 27, 2010
UT 4-MTD-DIO/L-R-P/P
Order No.: 3046346
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3046346
1051032
1051029
1051045
1050499
1051003
ZB 6,LGS:GLEICHE ZAHLEN
ZB 6,QR:FORTL.ZAHLEN
ZB 6,QR:GLEICHE ZAHLEN
ZB 6:SO/CMS
ZB 6:UNBEDRUCKT
Zack marker strip, printed horizontally: 10-section, with identical
numbers 1/1/1, 2/2/2, and so on up to 100, color: white
Zack marker strip, 10-section, printed vertically: with consecutive
numbers 1 - 10, 11 - 20, and so on up to 491 - 500, color: white
Zack marker, labeled vertically: 10-section, with identical numbers,
1/1/1, 2/2/2 etc. up to 1000/1000/1000, color: White
Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
Zack strip, unprinted, strips with 10 labels for individual labeling
with M-PEN or CMS system, for terminal block width: 6.2 mm,
color: white
Plug/Adapter
0201731
0201702
0201676
0201663
0201744
3030925
3030996
Tools
1205053
SZS 0,6X3,5
Actuation tool, for ST terminal blocks, insulated, also suitable
for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-
component grip, with non-slip grip
MPS-IH BK
MPS-IH GN
MPS-IH RD
MPS-IH WH
MPS-MT
PAI-4
PS-6
Insulating sleeve, Color: black
Insulating sleeve, Color: green
Insulating sleeve, Color: red
Insulating sleeve, Color: white
Test plugs
Test adapter, Color: gray
Test adapter, Color: red
Diagrams/Drawings
Circuit diagram
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 5 / 6
Oct 27, 2010
