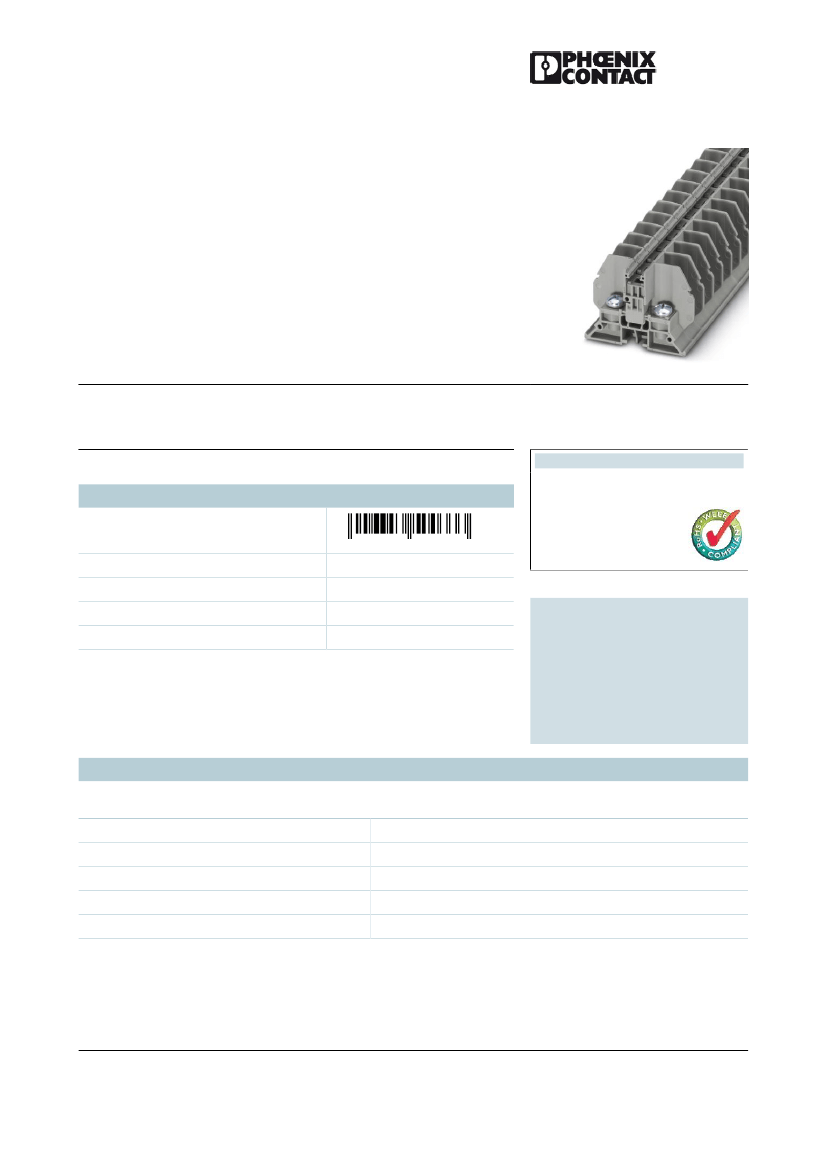

RSC 5-F
Order No.: 3058156
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3058156
Feed-through terminal block with bolt connection method, cross
2
section: 0.1 - 10 mm , AWG: 26 - 8, width 13 mm, color: gray
Product notes
Commercial data
GTIN (EAN)
4
046356
500333
WEEE/RoHS-compliant since:
03/06/2009
sales group
Pack
Customs tariff
Catalog page information
A006
50 pcs.
85369010
Page 533 (CL1-2011)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class acc. to UL 94
1
2
gray
PA
V0
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 5
Jul 28, 2011
RSC 5-F
Order No.: 3058156
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3058156
Dimensions
Width
Length
Height
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Nominal current I
N
Nominal voltage U
N
Open side panel
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Connection method
Screw thread
Tightening torque, min
Tightening torque max
Certificates / Approvals
0.1 mm²
10 mm²
0.1 mm²
10 mm²
26
8
Bolt connection
M5
2 Nm
2.2 Nm
57 A (with 10 mm conductor cross section)
8 kV
3
III
I
57 A
800 V
ja
2
13 mm
53.3 mm
37 mm
Certification
CB, UL, VDE-PZI
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 5
Jul 28, 2011
RSC 5-F
Order No.: 3058156
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3058156
Accessories
Item
Assembly
3022218
CLIPFIX 35
Snap-on end bracket, for 35 mm NS 35/7.5 or NS 35/15 DIN
rail, can be fitted with Zack strip ZB 8 and ZB 8/27, terminal strip
marker KLM 2 and KLM, width: 9.5 mm, color: gray
End clamp, for assembly on NS 32 or NS 35/7.5 DIN rail
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
Tragschiene, Material: Stahl verzinkt und dickschichtpassiviert,
gelocht, Höhe 7,5 mm, Breite 35 mm, Länge: 2000 mm
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
Tragschiene, profil-gezogen, hohe Ausführung, ungelocht 1,5 mm
dick, Material: Aluminium, Höhe 15 mm, Breite 35 mm, Länge
2000 mm
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
Tragschiene, Material: Stahl verzinkt und dickschichtpassiviert,
gelocht, Höhe 15 mm, Breite 35 mm, Länge: 2000 mm
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Separating plate, Length: 14 mm, Height: 16 mm, Color: gray
Designation
Description
1201442
0801762
0801733
0801681
1201756
E/UK
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/15 AL UNPERF 2000MM
1201895
1201730
1201714
1201798
2770215
General
3058017
3059647
3059126
3059663
1205163
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
TS-KK 3
AP RSC
D-RSC 5-F
FB 10-13
FB 10-13 ISO
SZK PH2 VDE
Cover profile, for covering terminal strips, directly snapped onto
RBO... and RSC... terminal blocks. Length supplied: 1 m
Fixed bridge, Number of positions: 10, Color: silver
Bridge bar isolator, Number of positions: 10, Color: silver
Screwdriver, PH crosshead, VDE insulated, size: PH 2 x 100 mm,
2-component grip, with non-slip grip
Marking
0829131
0829133
ZB 13:UNBEDRUCKT
ZBF 13:UNBEDRUCKT
Markers for 13 mm clamping width
Markers for 13 mm clamping width
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 5
Jul 28, 2011
