Extract from the online
catalog

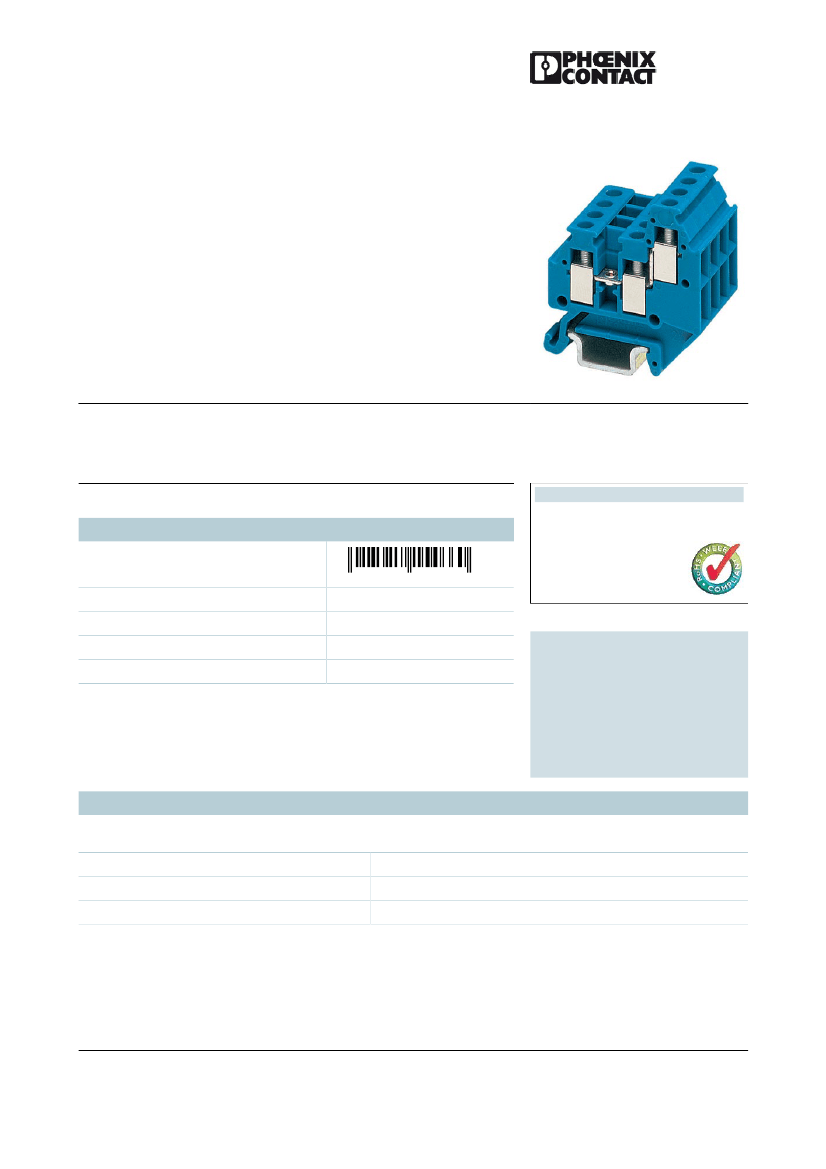

MT 1,5-TWIN BU
Order No.: 3025532
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3025532
Feed-through modular terminal block, Cross section: 0.14 mm² - 1.5
mm², AWG: 26 - 16, Connection type: Screw connection, Width: 4.2
mm, Color: blue, Mounting type: NS 15
Product notes
Commercial data
GTIN (EAN)
4
017918
154660
WEEE/RoHS-compliant since:
01/01/2003
sales group
Pack
Customs tariff
Catalog page information
A100
50 pcs.
85369010
Page 429 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
Color
2
3
blue
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 5
Jan 19, 2011
MT 1,5-TWIN BU
Order No.: 3025532
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3025532
Insulating material
Inflammability class acc. to UL 94
Dimensions
Width
Length
Technical data
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
PA
V0
4.2 mm
28 mm
4 kV
3
III
I
IEC 60947-7-1
17.5 A (the maximum load current must not be exceeded by the
total current of all connected conductors)
400 V
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
26
16
0.25 mm²
0.75 mm²
0.25 mm²
0.75 mm²
0.14 mm²
0.5 mm²
0.14 mm²
0.5 mm²
0.25 mm²
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 5
Jan 19, 2011
MT 1,5-TWIN BU
Order No.: 3025532
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3025532
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
Type of connection
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Certificates / Approvals
0.34 mm²
Screw connection
6 mm
A1
M2
0.22 Nm
0.25 Nm
Certification
CCA, DNV, GL, GOST, KEMA, UL
Accessories
Item
Assembly
3025545
1401637
1401763
1401682
1401695
D-MT 1,5-TWIN BU
E/MBK
NS 15 AL PERF 2000MM
NS 15 PERF 2000MM
NS 15 UNPERF 2000MM
End cover, Length: 28 mm, Width: 1 mm, Color: blue
End clamp, width: 6.2 mm, color: gray
DIN rail, material: Aluminum, perforated, height 5.5 mm, width 15
mm, length: 2 m
DIN rail, material: steel, perforated, height 5.5 mm, width 15 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 5.5 mm, width 15
mm, length: 2 m
Designation
Description
Bridges
3001569
3001572
3001585
3001598
3001608
3001624
3001637
FBRN 4-4 N
FBRN 5-4 N
FBRN 6-4 N
FBRN 7-4 N
FBRN 8-4 N
FBRN 10-4 N
FBRN 20-4 N
Fixed bridge, Number of positions: 4, Color: aluminum
Fixed bridge, Number of positions: 5, Color: aluminum
Fixed bridge, Number of positions: 6, Color: aluminum
Fixed bridge, Number of positions: 7, Color: aluminum
Fixed bridge, Number of positions: 8, Color: aluminum
Fixed bridge, Number of positions: 10, Color: silver
Fixed bridge, Number of positions: 20, Color: aluminum
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 5
Jan 19, 2011
MT 1,5-TWIN BU
Order No.: 3025532
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3025532
Marking
0803634
ZBFM 4:SO/CMS
Special printing, Zack marker sheet, flat, 100-section, divisible,
marking according to customer requirements
Tools
1205037
SZS 0,4X2,5 VDE
Screwdriver, bladed, VDE insulated, size: 0.4 x 2.5 x 80 mm, 2-
component grip, with non-slip grip
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 5
Jan 19, 2011
MT 1,5-TWIN BU
Order No.: 3025532
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3025532
Address
PHOENIX CONTACT Inc., USA
586 Fulling Mill Road
Middletown, PA 17057,USA
Phone (800) 888-7388
Fax (717) 944-1625
http://www.phoenixcon.com
© 2010 Phoenix Contact
Technical modifications reserved;
