Electronic housing - ME MAX 45 SF G 2-2 KMGY - 2869375
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

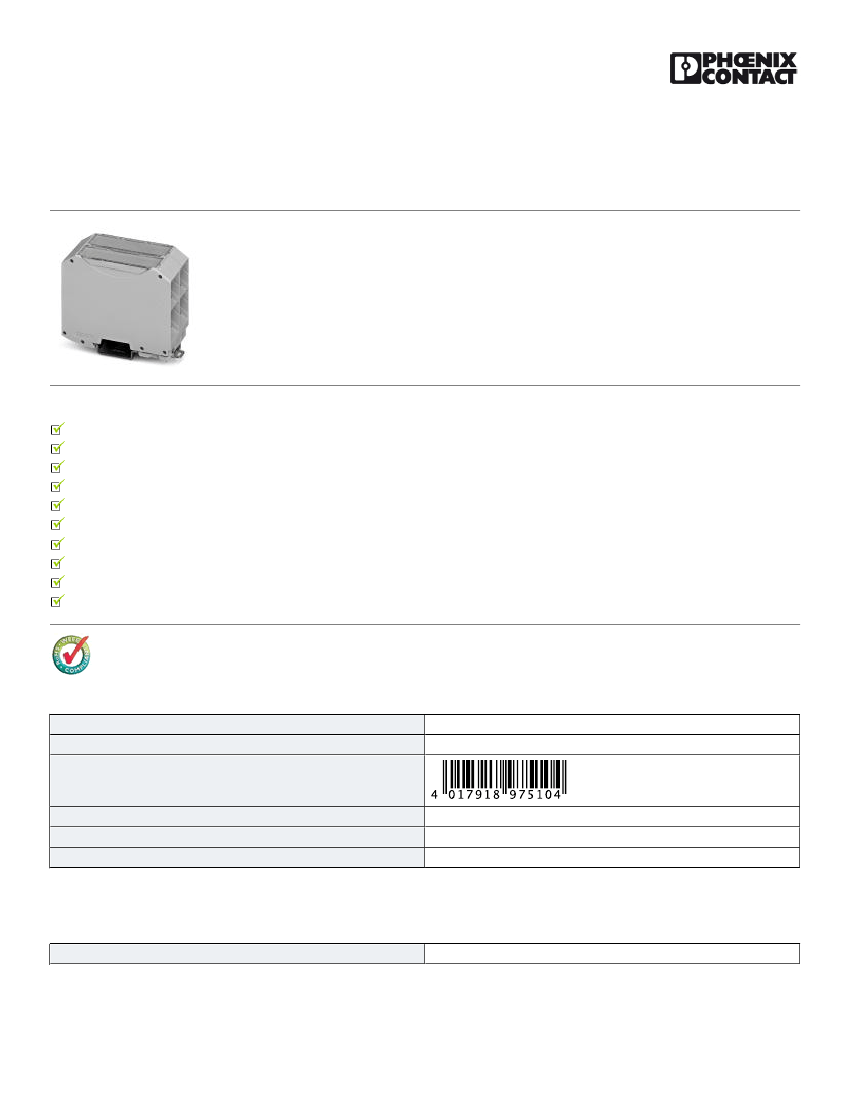

Electronic housing consisting of: Housing shells left and right, 2x front plate, 2x transparent cover, intermediate
element, metal foot catch and spring, enclosed housing, 32-pos. (8 x 4 pos.), design: Extra flat, width: 45 mm,
color: Light gray
Product Features
Plug-in connection with screw, spring-cage or fast connection technology
DIN rail bus connector as an option
Labels for additional labeling as an option
Large PCB surface despite compact housing dimensions
Large front surface for high-pos. plugs or operating and setting elements
The fitted cover is easy to adapt and print
Easy module replacement without interrupting the contact chain
Functional earth ground contact as an option
Fixed or plug-in connection technology can be combined on up to three connection levels, with different pitches
Transparent front cover can be swiveled
Key commercial data
Packing unit
Minimum order quantity
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
57.86 GRM
85369010
Germany
11
10 1
Technical data
General
Housing type
Complete housing
11.11.2013 Page 1 / 5
https://www.phoenixcontact.com/us/products/2869375
Electronic housing - ME MAX 45 SF G 2-2 KMGY - 2869375
Technical data
General
Housing material
Color
Polyamide
light gray
Ambient conditions
Ambient temperature (operation)
-40 °C ... 105 °C
Dimensions
Length
Constructional height
Width
85 mm
70.4 mm
45 mm
Technical data
Inflammability class according to UL 94
Power dissipation at 20°C in the horizontal mounting position
Number of positions
V0
5.5 W 9.6 W
32
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27180401
27180401
27180506
27180506
27180802
27182702
27182702
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001031
EC001031
EC001031
EC001031
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31261501
31261501
31261501
31261501
31261501
11.11.2013 Page 2 / 5
https://www.phoenixcontact.com/us/products/2869375
Electronic housing - ME MAX 45 SF G 2-2 KMGY - 2869375
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
cUL Recognized
cULus Recognized
Accessories
Accessories
Ground contact
Electronic housing - ME FE-CONTACT - 2908294
Functional earth ground contact, for intermediate elements.
Drawings
11.11.2013 Page 3 / 5
https://www.phoenixcontact.com/us/products/2869375
Electronic housing - ME MAX 45 SF G 2-2 KMGY - 2869375
Dimensioned drawing
45
Dimensioned drawing
85
45
7
16,05
1,75
20,85
2,3
1,75

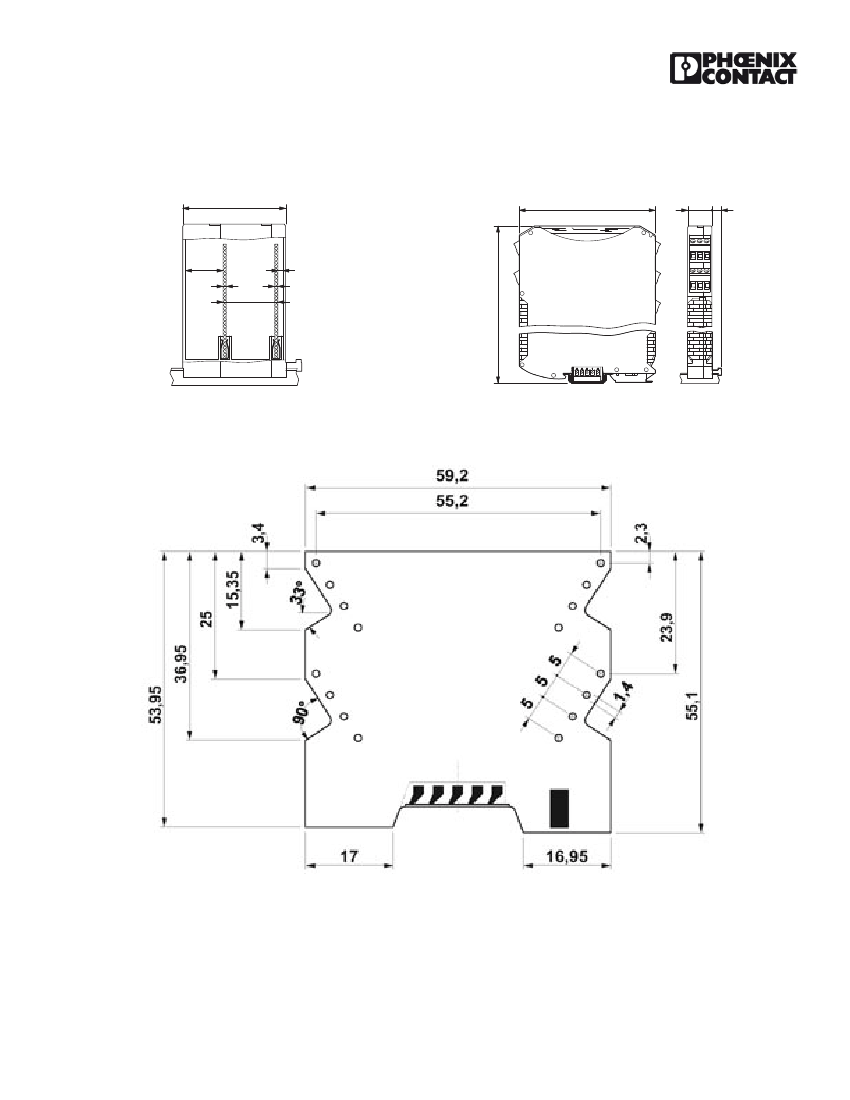

Housing inner dimensions ME MAX... Flat/extra-flat
Dimensioned drawing
Dimensional drawing of the ME MAX ...SF 2-2 PCB for plug connection (MSTBO), view: Component side
70,4
11.11.2013 Page 4 / 5
https://www.phoenixcontact.com/us/products/2869375
Electronic housing - ME MAX 45 SF G 2-2 KMGY - 2869375
Dimensioned drawing

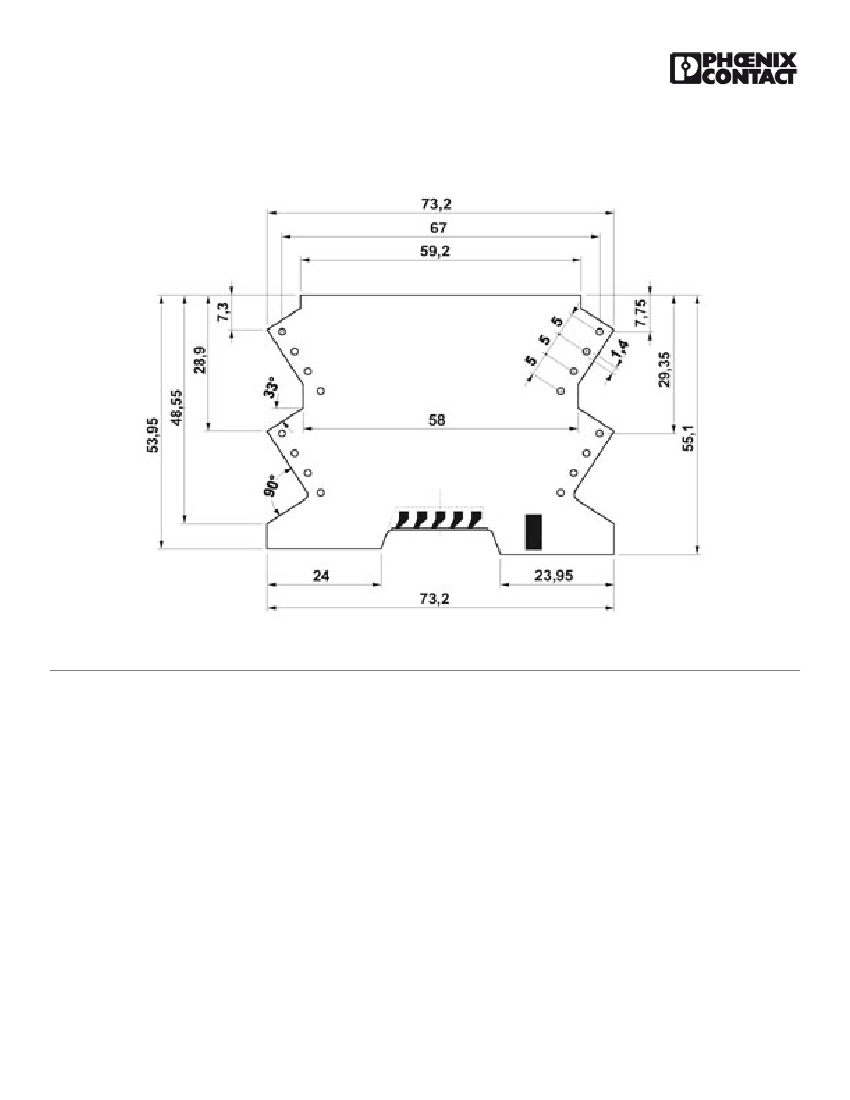

Dimensional drawing of the ME MAX ...SF 2-2 PCB for PCB terminal block connection (MKDSO), view: Component side
© Phoenix Contact 2013 - all rights reserved
http://www.phoenixcontact.com
11.11.2013 Page 5 / 5
