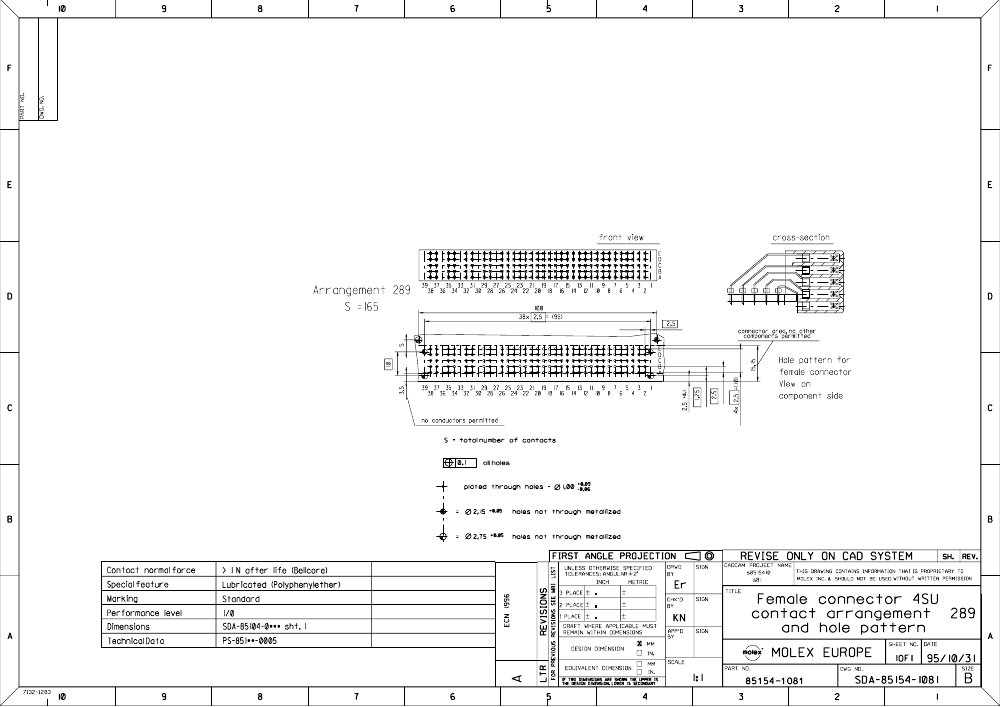

85154-1081: DescriptionBoard Connector, 165 Contact(s), 5 Row(s), Female, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Gray Insulator, Plug; CategoryThe connector The connector; File Size61KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

85154-1081 Overview

Board Connector, 165 Contact(s), 5 Row(s), Female, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Gray Insulator, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT,TRAY PACKAGING
body width	0.512 inch
subject depth	0.935 inch
body length	3.932 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (80)
Contact completed and terminated	NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.0008 N
Insulation resistance	1000000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYCARBONATE
MIL compliance	NO
Manufacturer's serial number	85154
Plug contact pitch	0.098 inch
Match contact row spacing	0.098 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.4892 mm
Plating thickness	80u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	165
Evacuation force-minimum value	.6116 N
Base Number Matches	1
