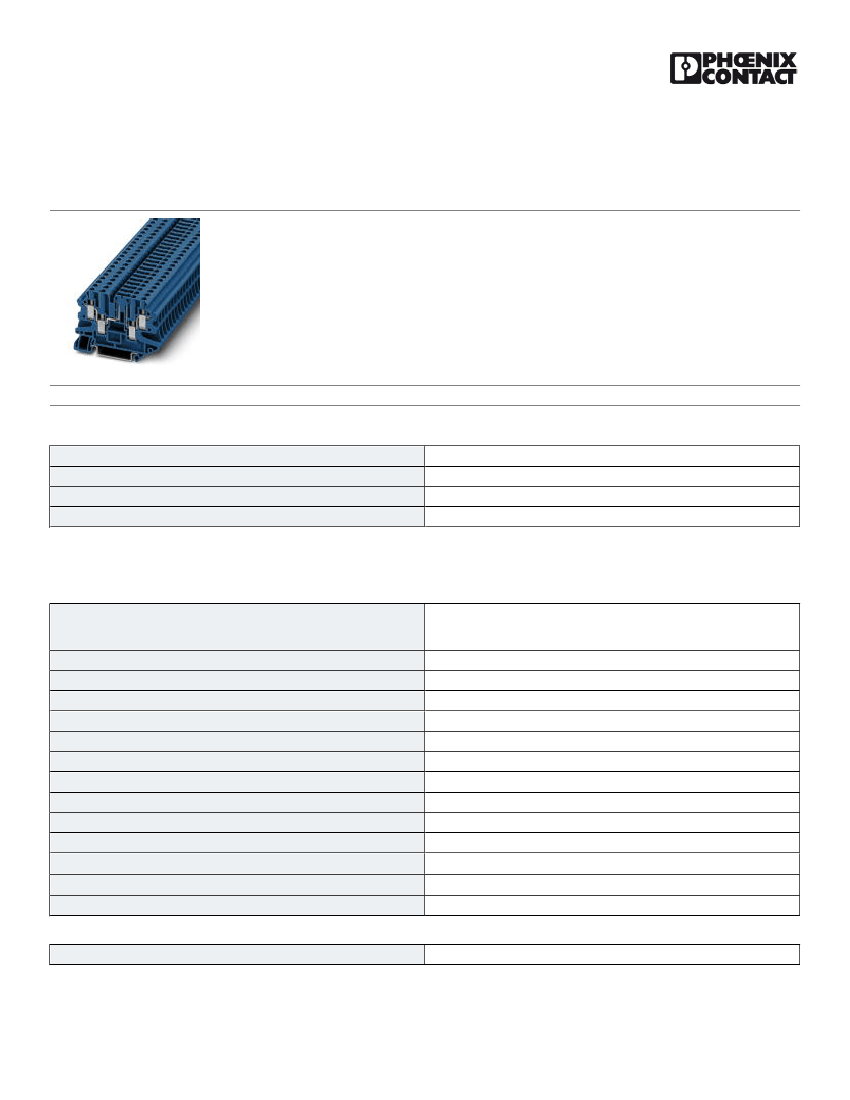

Feed-through terminal block - UT 4-QUATTRO-TG BU - 3073076
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Feed-through terminal block, Connection type: Screw connection, Cross section: 0.14 mm² - 6 mm²,
AWG: 26 - 10, Nominal current: 20 A, Nominal voltage: 500 V, Length: 65.4 mm, Width: 6.2 mm, Color: blue,
Assembly: NS 35/7,5, NS 35/15
Key commercial data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
11
50 1
85369010
Poland
Technical data
General
Note
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
The max. load current must not be exceeded by the total current of all
connected conductors.
Current and voltage are determined by the plug used.
1
4
blue
PA
V0
6 kV
3
III
I
IEC 60947-7-1
20 A
500 V
ja
Dimensions
Width
6.2 mm
01.11.2013 Page 1 / 18
https://www.phoenixcontact.com/us/products/3073076
Feed-through terminal block - UT 4-QUATTRO-TG BU - 3073076
Technical data
Dimensions
Length
Height NS 35/7,5
Height NS 35/15
65.4 mm
47.5 mm
55 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
0.14 mm²
6 mm²
26
10
0.14 mm²
6 mm²
26
10
0.14 mm²
4 mm²
0.14 mm²
4 mm²
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
2.5 mm²
sleeve, max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Connection method
Stripping length
Screw thread
Tightening torque, min
Tightening torque max
0.14 mm²
1.5 mm²
Screw connection
9 mm
M3
0.6 Nm
0.8 Nm
Classifications
eCl@ss
eCl@ss 4.0
27141199
01.11.2013 Page 2 / 18
https://www.phoenixcontact.com/us/products/3073076
Feed-through terminal block - UT 4-QUATTRO-TG BU - 3073076
Classifications
eCl@ss
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141199
27141145
27141145
27141133
27141133
27141133
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000886
EC000886
EC000902
EC000902
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211827
39121424
39121424
39121424
39121424
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / CSA / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
01.11.2013 Page 3 / 18
https://www.phoenixcontact.com/us/products/3073076
Feed-through terminal block - UT 4-QUATTRO-TG BU - 3073076
Approvals
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-10
20 A
300 V
C
26-10
20 A
150 V
D
26-10
10 A
300 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-10
20 A
300 V
C
26-10
20 A
150 V
D
26-10
10 A
300 V
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-10
16 A
300 V
C
26-10
16 A
150 V
D
26-10
10 A
300 V
cULus Recognized
Accessories
Accessories
Bridge
Plug-in bridge - FBS 2-6 - 3030336
Plug-in bridge, Number of positions: 2, Color: red
01.11.2013 Page 4 / 18
https://www.phoenixcontact.com/us/products/3073076
Feed-through terminal block - UT 4-QUATTRO-TG BU - 3073076
Accessories
Plug-in bridge - FBS 3-6 - 3030242
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge - FBS 4-6 - 3030255
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge - FBS 5-6 - 3030349
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge - FBS 10-6 - 3030271
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge - FBS 20-6 - 3030365
Plug-in bridge, Number of positions: 20, Color: red
01.11.2013 Page 5 / 18
