Feed-through terminal block - UK 16 BU - 3006098
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

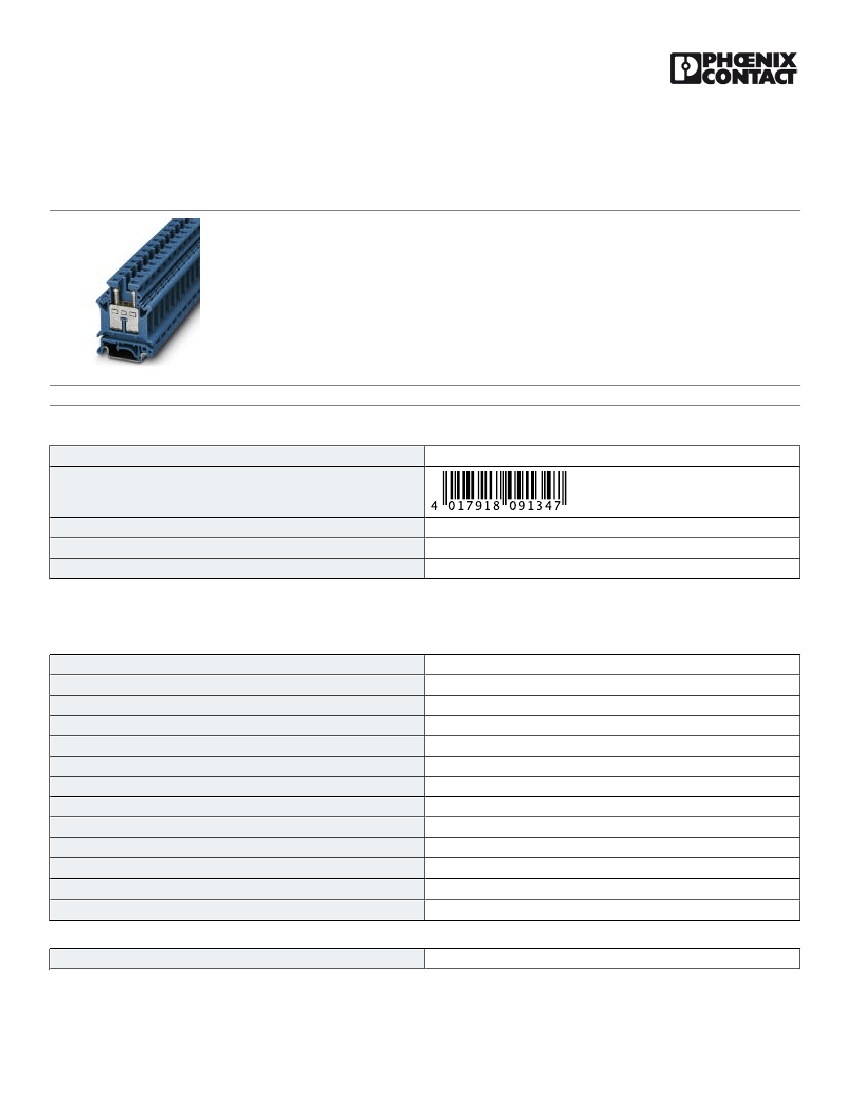

Feed-through terminal block, Connection method: Screw connection, Cross section: 0.5 mm² - 16 mm²,
AWG: 20 - 6, Width: 10.2 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15, NS 32
Key commercial data
Packing unit
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
21.0 GRM
85369010
Germany
11
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
1
2
blue
PA
V2
8 kV
3
III
I
IEC / EN
76 A
800 V
ja
Dimensions
Width
10.2 mm
18.11.2013 Page 1 / 16
https://www.phoenixcontact.com/us/products/3006098
Feed-through terminal block - UK 16 BU - 3006098
Technical data
Dimensions
Length
Height NS 35/7,5
Height NS 35/15
Height NS 32
42.5 mm
54 mm
61.5 mm
59 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
0.5 mm²
16 mm²
20
6
0.5 mm²
10 mm²
20
8
0.5 mm²
10 mm²
0.5 mm²
10 mm²
0.5 mm²
4 mm²
0.5 mm²
4 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
6 mm²
sleeve, max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Connection method
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
0.5 mm²
4 mm²
Screw connection
11 mm
B6
M4
1.5 Nm
1.8 Nm
18.11.2013 Page 2 / 16
https://www.phoenixcontact.com/us/products/3006098
Feed-through terminal block - UK 16 BU - 3006098
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141120
27141120
27141120
27141120
27141120
27141120
27141120
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC000897
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
cUL Recognized / GOST / GL / DNV / GOST
Ex Approvals
Approvals submitted
Approval details
18.11.2013 Page 3 / 16
https://www.phoenixcontact.com/us/products/3006098
Feed-through terminal block - UK 16 BU - 3006098
Approvals
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
24-6
65 A
600 V
GOST
GL
DNV
GOST

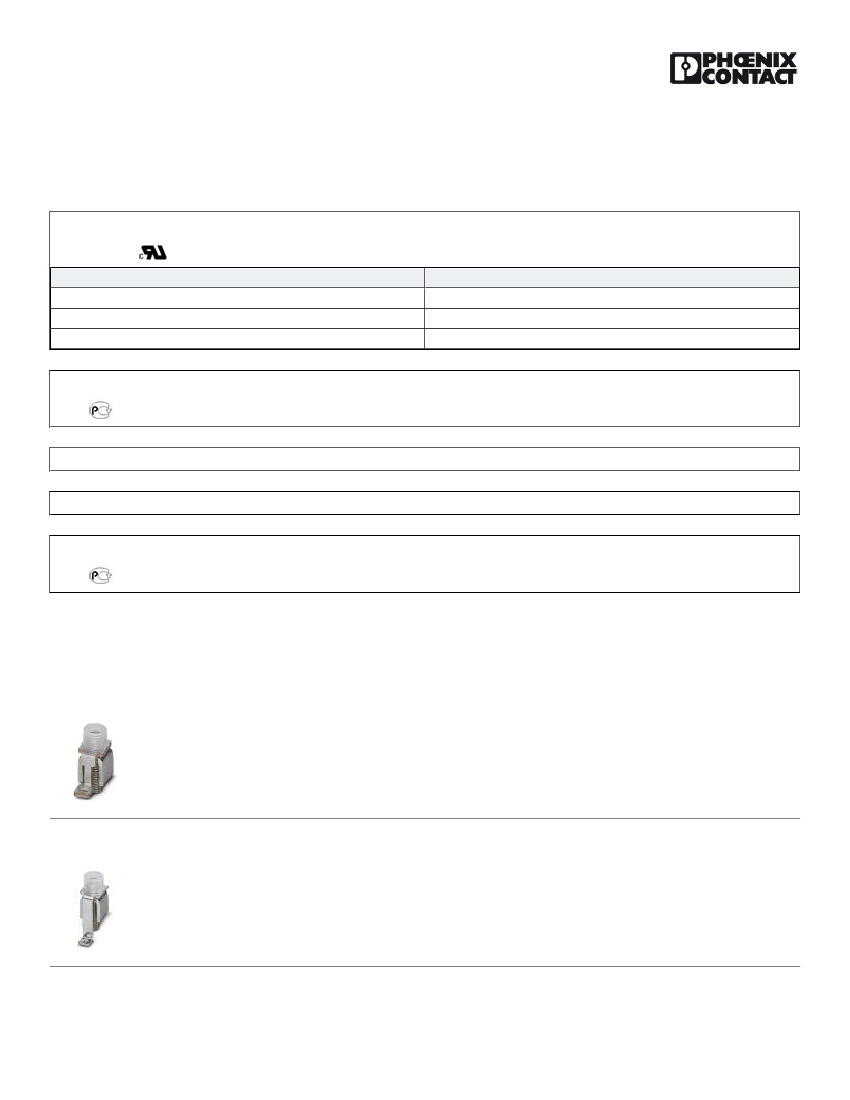

Accessories
Accessories
Bridge
Step bracket - STL 35/16 - 0204097
Step bracket, Number of positions: 2, Color: white aluminum
Step bracket - STL 16/10 - 0204518
Step bracket, Number of positions: 2, Color: white aluminum
18.11.2013 Page 4 / 16
https://www.phoenixcontact.com/us/products/3006098
Feed-through terminal block - UK 16 BU - 3006098
Accessories

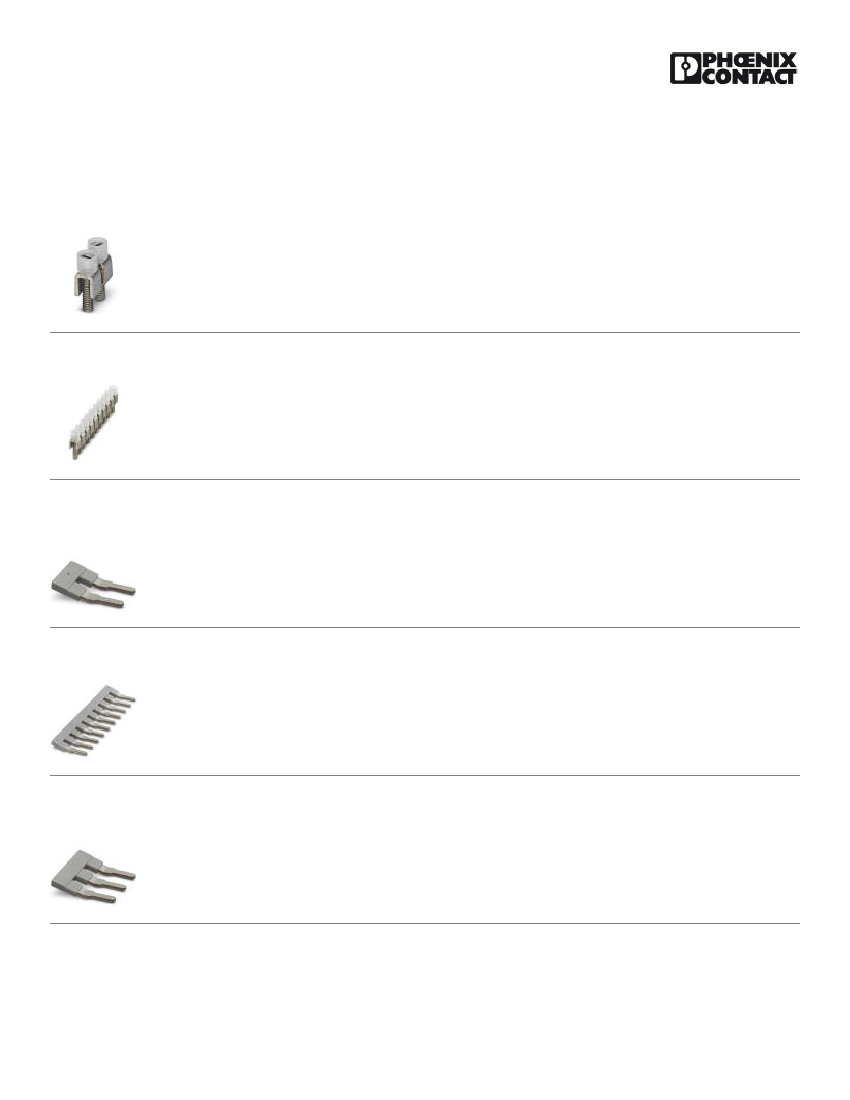

Fixed bridge - FBI 2-10 - 0203483
Fixed bridge, Number of positions: 2, Color: silver
Fixed bridge - FBI 10-10 - 0203276
Fixed bridge, Number of positions: 10, Color: silver
Insertion bridge - EB 2-10 - 0203153
Insertion bridge, Number of positions: 2, Color: gray
Insertion bridge - EB 10-10 - 0203137
Insertion bridge, Number of positions: 10, Color: gray
Insertion bridge - EB 3-10 - 0203328
Insertion bridge, Number of positions: 3, Color: gray
18.11.2013 Page 5 / 16
