5530843-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5530843-1

5530843-1: DescriptionCONN SEC II 12 POS 100C/L; CategoryThe connector The connector; File Size450KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5530843-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5530843-1	-	-	View	Buy Now

5530843-1 Overview

CONN SEC II 12 POS 100C/L

5530843-1 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Factory Lead Time	10 weeks
Board mount options	SOLDER HOLDING POSTS
body width	0.368 inch
subject depth	0.55 inch
body length	1.46 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	5530843
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.81 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	12
Base Number Matches	1

Preview

Download Datasheet

View All

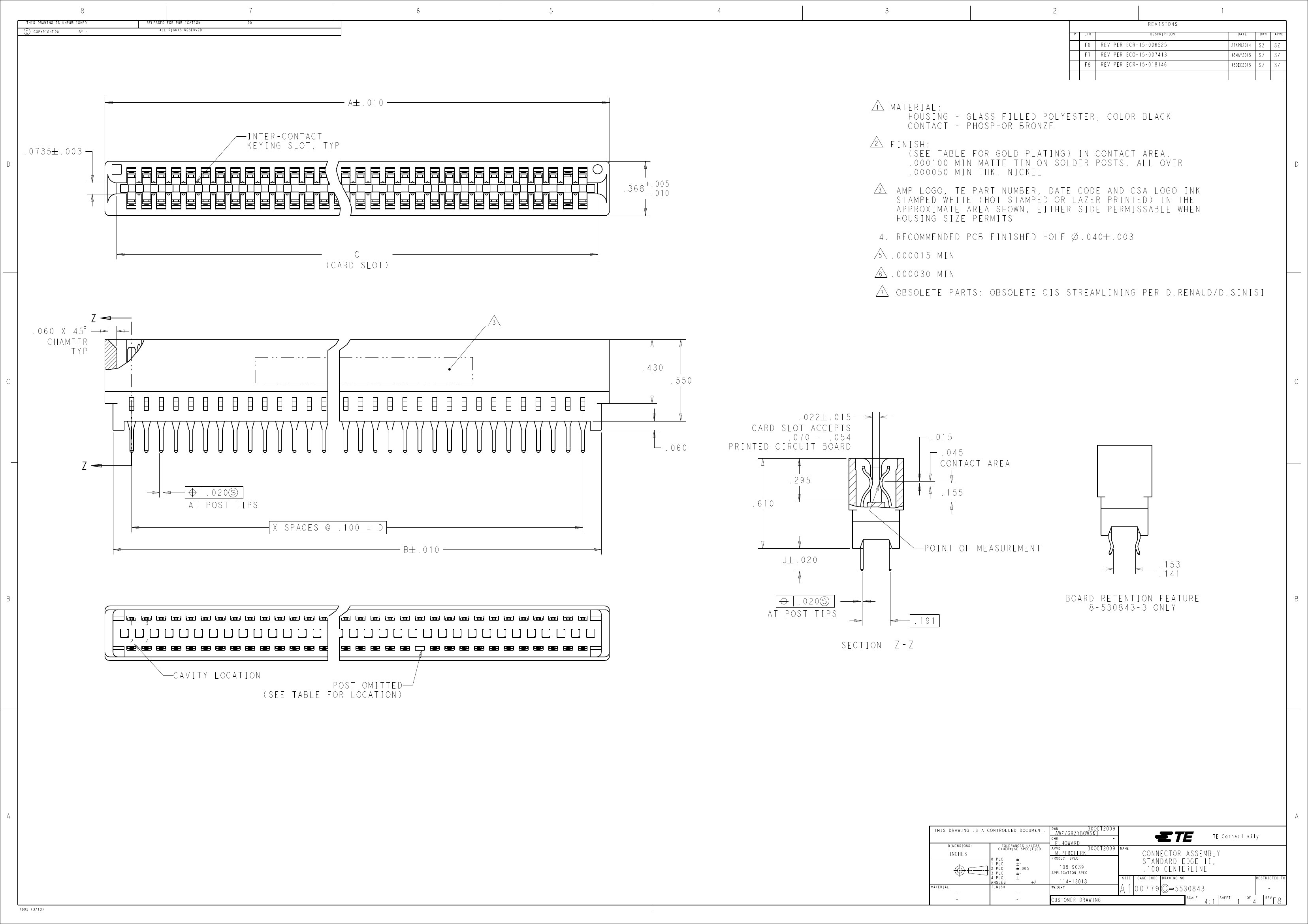

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REV PER ECR-15-006525

REV PER ECO-15-007413

REV PER ECR-15-018146

27APR2014

18MAY2015

15DEC2015

A # .010

INTER-CONTACT

KEYING SLOT, TYP

MATERIAL:

HOUSING - GLASS FILLED POLYESTER, COLOR BLACK

CONTACT - PHOSPHOR BRONZE

FINISH:

(SEE TABLE FOR GOLD PLATING) IN CONTACT AREA.

.000100 MIN MATTE TIN ON SOLDER POSTS. ALL OVER

.000050 MIN THK. NICKEL

AMP LOGO, TE PART NUMBER, DATE CODE AND CSA LOGO INK

STAMPED WHITE (HOT STAMPED OR LAZER PRINTED) IN THE

APPROXIMATE AREA SHOWN, EITHER SIDE PERMISSABLE WHEN

HOUSING SIZE PERMITS

n .040 # .003

.0735 # .003

.368

+.005

-.010

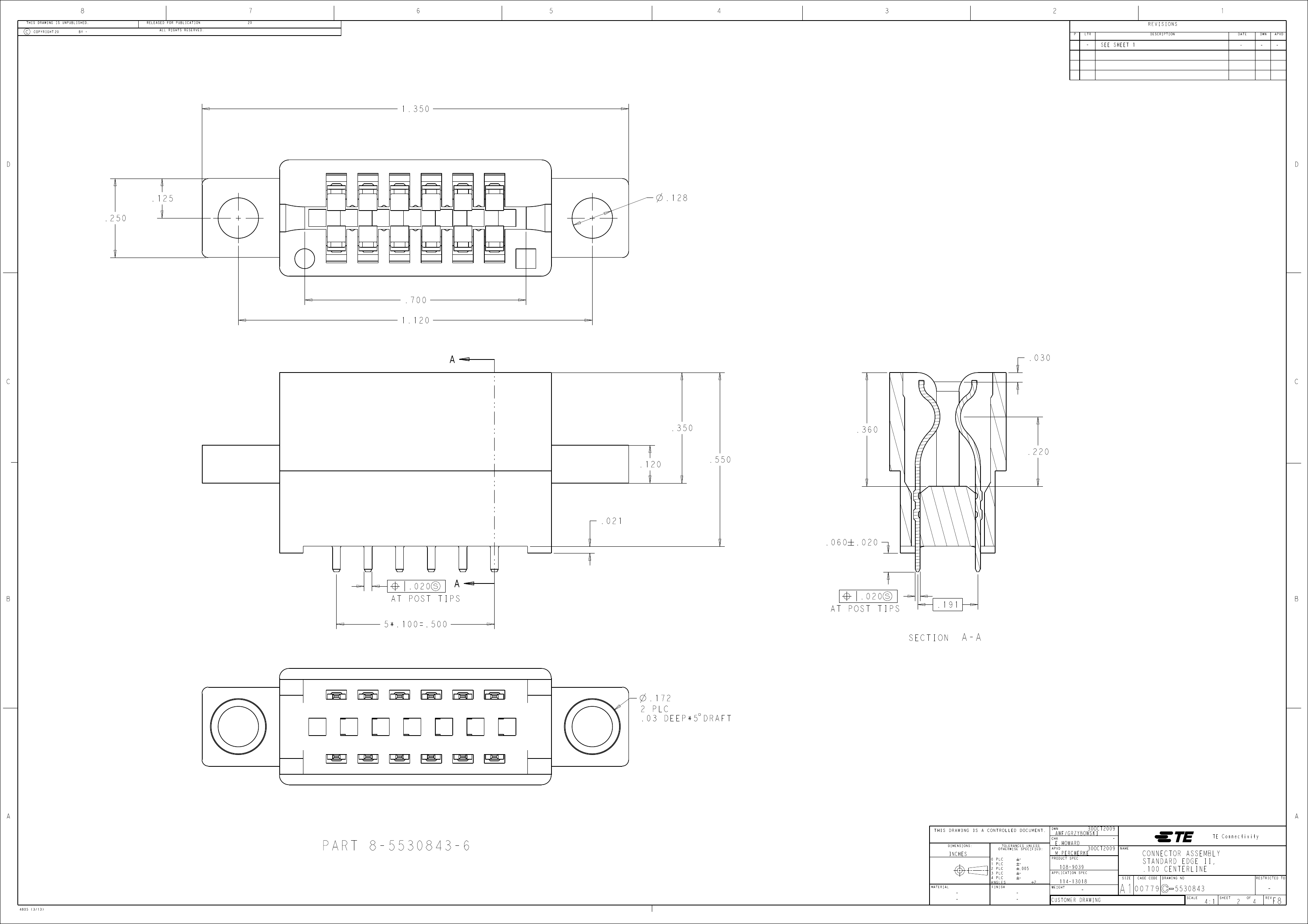

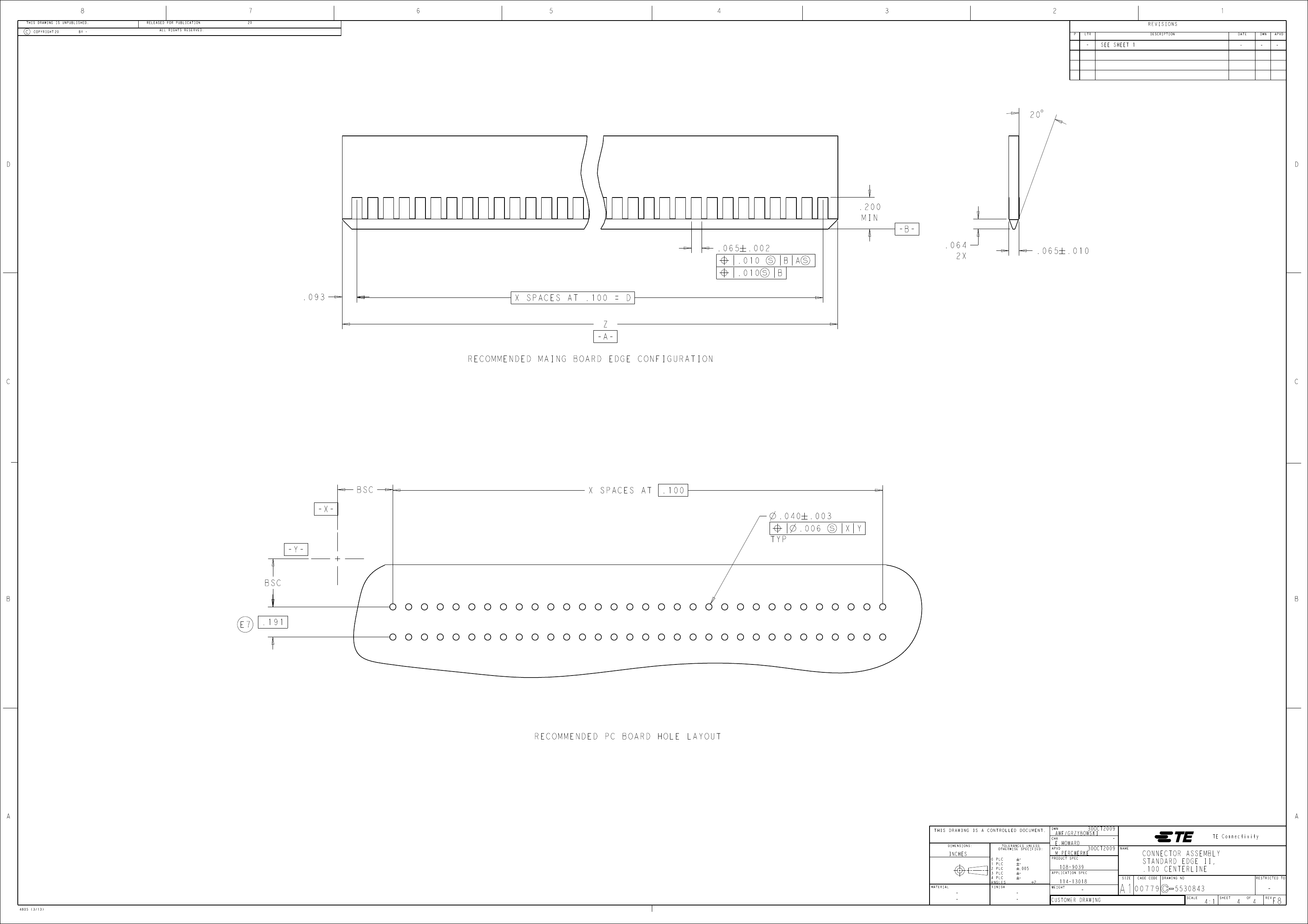

4. RECOMMENDED PCB FINISHED HOLE

(CARD SLOT)

.000015 MIN

.000030 MIN

OBSOLETE PARTS: OBSOLETE CIS STREAMLINING PER D.RENAUD/D.SINISI

.060 X 45 $

CHAMFER

TYP

.430

.550

.060

.022 # .015

CARD SLOT ACCEPTS

.070 - .054

PRINTED CIRCUIT BOARD

.015

.045

CONTACT AREA

.155

.295

AT POST TIPS

X SPACES

@ .100 = D

B # .010

J # .020

.610

POINT OF MEASUREMENT

.153

.141

BOARD RETENTION FEATURE

8-530843-3 ONLY

AT POST TIPS

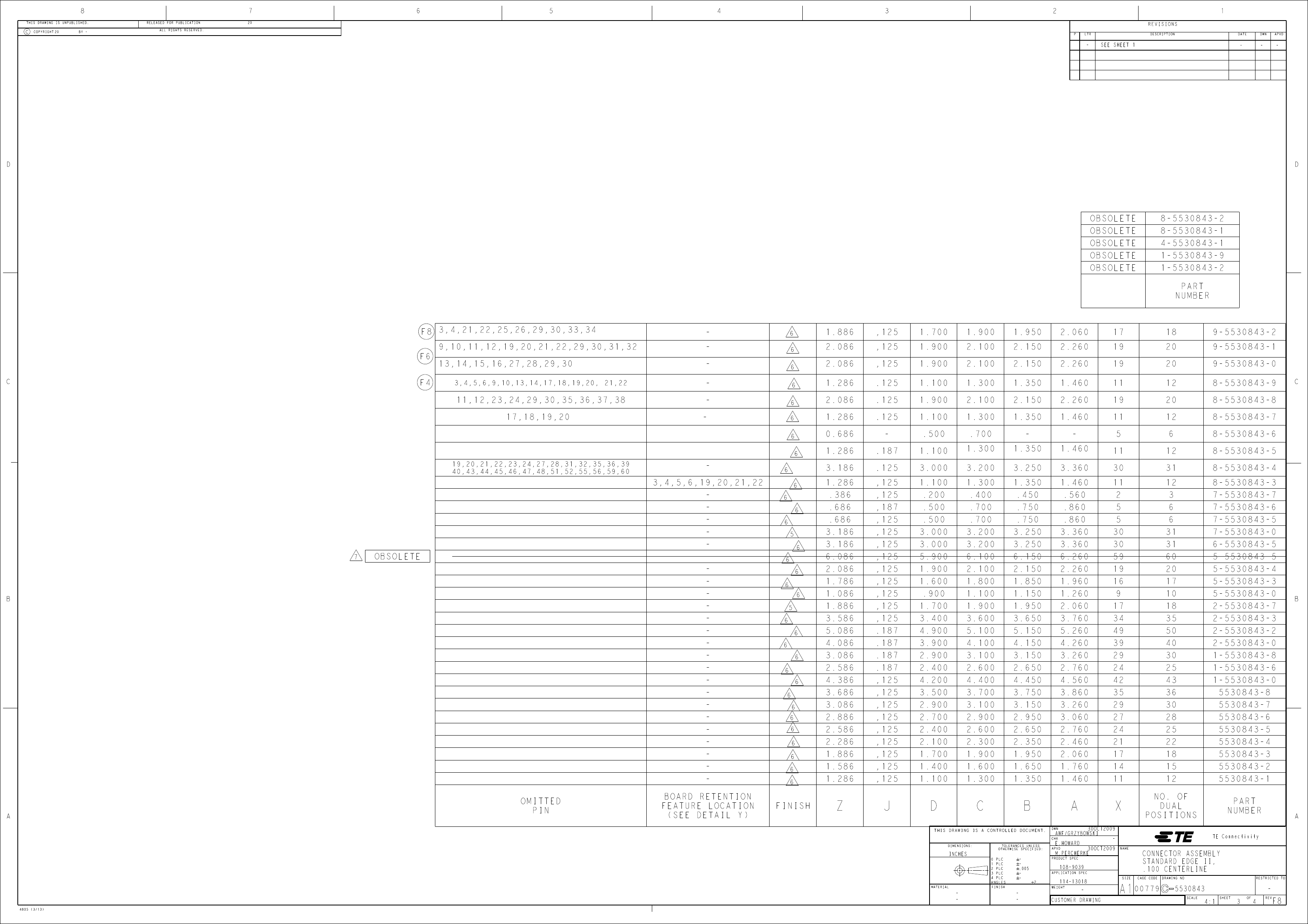

SECTION

CAVITY LOCATION

.191

Z-Z

POST OMITTED

(SEE TABLE FOR LOCATION)

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

30OCT2009

AWF/GRZYBOWSKI

E.HOWARD

M.PERCHERKE

108-9039

30OCT2009

NAME

TE Connectivity

INCHES

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.005

PRODUCT SPEC

APPLICATION SPEC

WEIGHT

114-13018

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

CONNECTOR ASSEMBLY

STANDARD EDGE II,

.100 CENTERLINE

DRAWING NO

RESTRICTED TO

5530843

SCALE

4805 (3/13)

4:1

SHEET

REV

5530843-1 Related Products

	5530843-1	7-5530843-7	5530843-3	8-5530843-3	5530843-8	7-5530843-6	5-5530843-0
Description	CONN SEC II 12 POS 100C/L	CONN SEC II 3 POS 100C/L	CONN SEC II 18 POS 100C/L	CONN SEC II 12 POS 100C/L	CONN SEC II 36 POS 100C/L	CONN SEC II 6 POS 100C/L	Card edge connector female 20 position pitch 2.54mm
Brand Name	AMP	-	AMP	AMP	AMP	-	AMP
Is it lead-free?	Lead free	-	Contains lead	-	Lead free	-	Lead free
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	-	conform to
Reach Compliance Code	compliant	-	compliant	compliant	compliant	-	compliant
Factory Lead Time	10 weeks	-	13 weeks	7 weeks	18 weeks	-	14 weeks
Board mount options	SOLDER HOLDING POSTS	-	-	SOLDER HOLDING POSTS	SOLDER HOLDING POSTS	-	SOLDER HOLDING POSTS
body width	0.368 inch	-	-	0.368 inch	0.368 inch	-	0.368 inch
subject depth	0.55 inch	-	-	0.55 inch	0.55 inch	-	0.55 inch
body length	1.46 inch	-	-	1.46 inch	3.86 inch	-	1.26 inch
Body/casing type	RECEPTACLE	-	-	RECEPTACLE	RECEPTACLE	-	RECEPTACLE
Connector type	CARD EDGE CONNECTOR	-	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	-	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Contact point gender	FEMALE	-	FEMALE	FEMALE	FEMALE	-	FEMALE
Contact material	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
contact mode	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Contact resistance	10 mΩ	-	-	10 mΩ	10 mΩ	-	10 mΩ
Contact style	BELLOWED TYPE	-	-	BELLOWED TYPE	BELLOWED TYPE	-	BELLOWED TYPE
DIN compliance	NO	-	NO	NO	NO	-	NO
Dielectric withstand voltage	1400VAC V	-	-	1400VAC V	1400VAC V	-	1400VAC V
Durability	250 Cycles	-	-	250 Cycles	250 Cycles	-	250 Cycles
Filter function	NO	-	NO	NO	NO	-	NO
IEC compliance	NO	-	NO	NO	NO	-	NO
Insulation resistance	5000000000 Ω	-	-	5000000000 Ω	5000000000 Ω	-	5000000000 Ω
Insulator color	BLACK	-	-	BLACK	BLACK	-	BLACK
insulator material	GLASS FILLED POLYESTER	-	-	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	-	GLASS FILLED POLYESTER
MIL compliance	NO	-	NO	NO	NO	-	NO
Manufacturer's serial number	5530843	-	-	5530843	5530843	-	5530843
Plug contact pitch	0.1 inch	-	-	0.1 inch	0.1 inch	-	0.1 inch
Match contact row spacing	0.1 inch	-	-	0.1 inch	0.1 inch	-	0.1 inch
Mixed contacts	NO	-	NO	NO	NO	-	NO
Installation option 1	LOCKING	-	-	LOCKING	LOCKING	-	LOCKING
Installation method	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT
Installation type	BOARD	-	BOARD	BOARD	BOARD	-	BOARD
Number of connectors	ONE	-	-	ONE	ONE	-	ONE
PCB row number	2	-	-	2	2	-	2
Number of rows loaded	2	-	2	2	2	-	2
Maximum operating temperature	85 °C	-	-	85 °C	85 °C	-	85 °C
Minimum operating temperature	-55 °C	-	-	-55 °C	-55 °C	-	-55 °C
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
PCB contact row spacing	3.81 mm	-	-	3.81 mm	3.81 mm	-	3.81 mm
Plating thickness	30u inch	-	-	30u inch	30u inch	-	30u inch
Rated current (signal)	3 A	-	-	3 A	3 A	-	3 A
Guideline	UL	-	-	UL	UL	-	UL
reliability	COMMERCIAL	-	-	COMMERCIAL	COMMERCIAL	-	COMMERCIAL
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm
Termination type	SOLDER	-	SOLDER	SOLDER	SOLDER	-	SOLDER
Total number of contacts	12	-	18	12	36	-	20
Base Number Matches	1	-	1	1	1	-	1
