5962-7802301M2A datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> 5962-7802301M2A

5962-7802301M2A: DescriptionLine Driver, 4 Func, 4 Driver, CQCC20, 0.358 X 0.358 INCH, 0.100 HEIGHT, CERAMIC, LCC-20; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size227KB，11 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

5962-7802301M2A Overview

Line Driver, 4 Func, 4 Driver, CQCC20, 0.358 X 0.358 INCH, 0.100 HEIGHT, CERAMIC, LCC-20

5962-7802301M2A Parametric

Parameter Name	Attribute value
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Differential output	YES
Number of drives	4
Input properties	STANDARD
Interface integrated circuit type	LINE DRIVER
Interface standards	GENERAL PURPOSE
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
Number of functions	4
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	QUAD
maximum transmission delay	30 ns
Base Number Matches	1

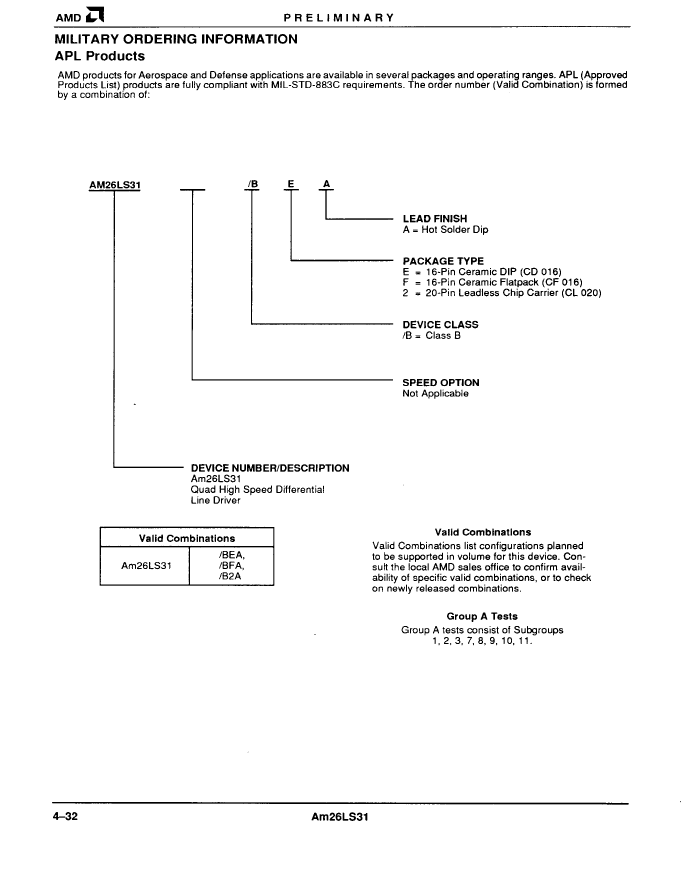

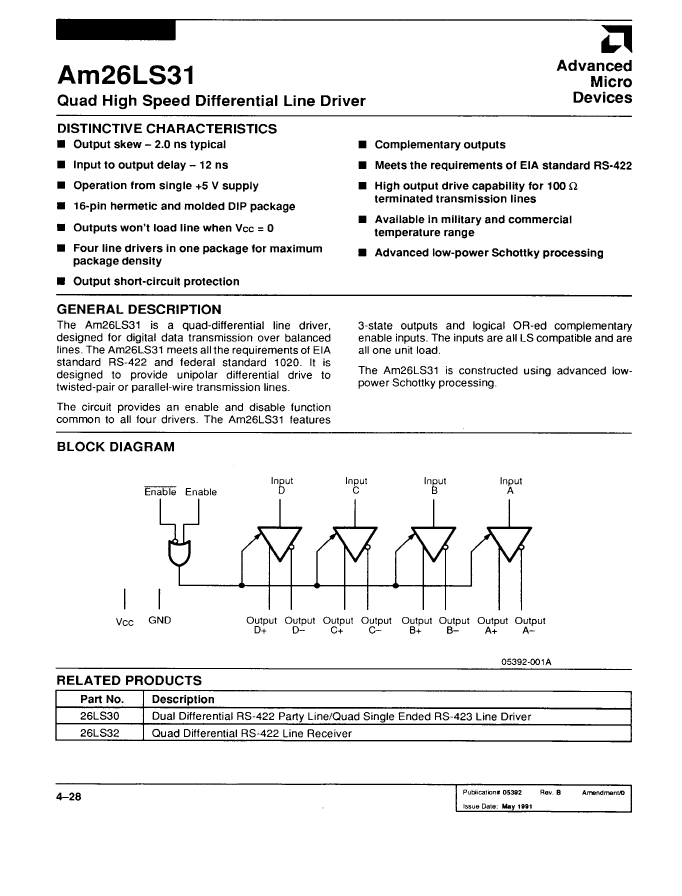

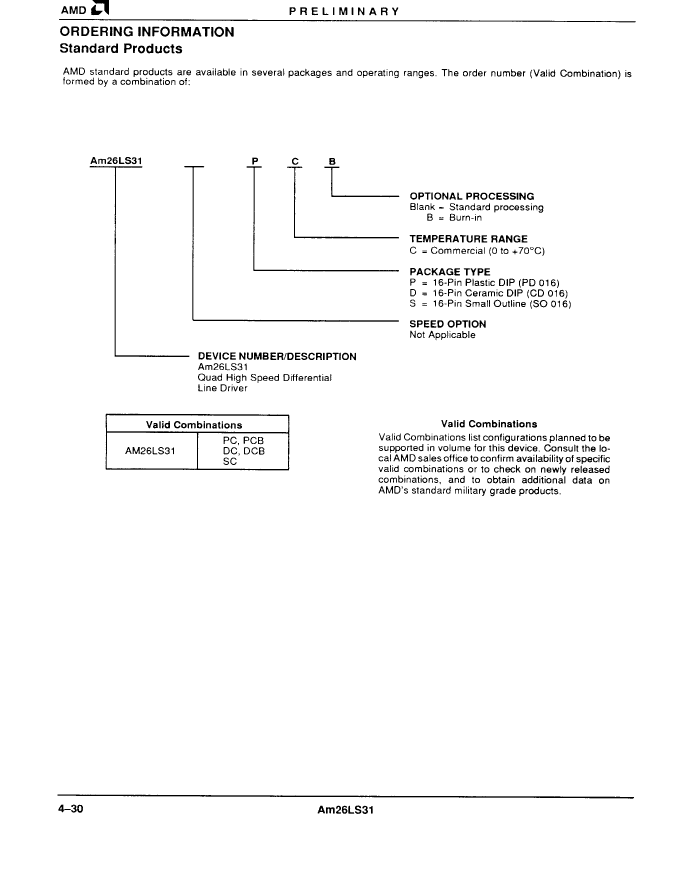

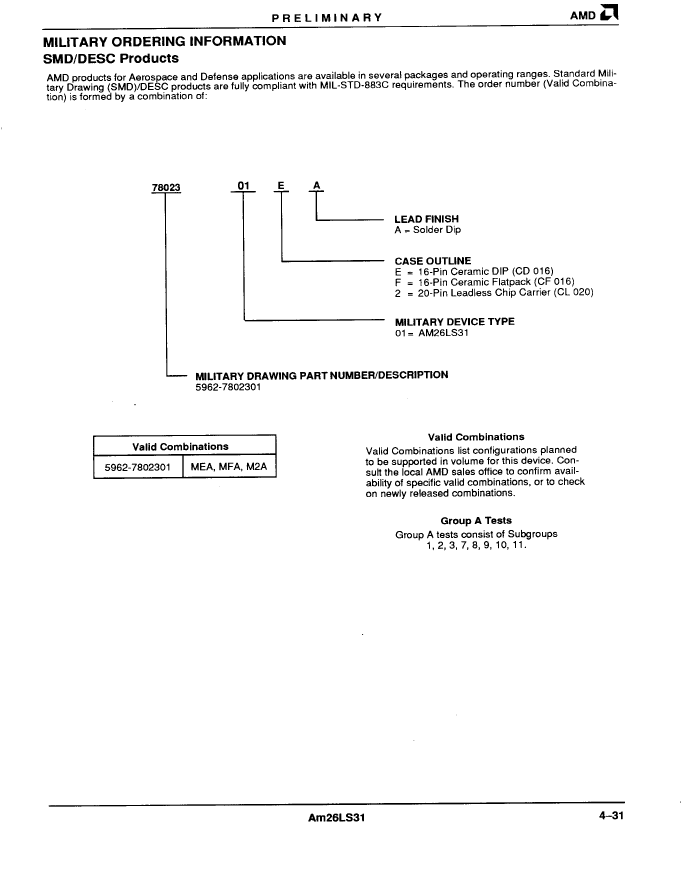

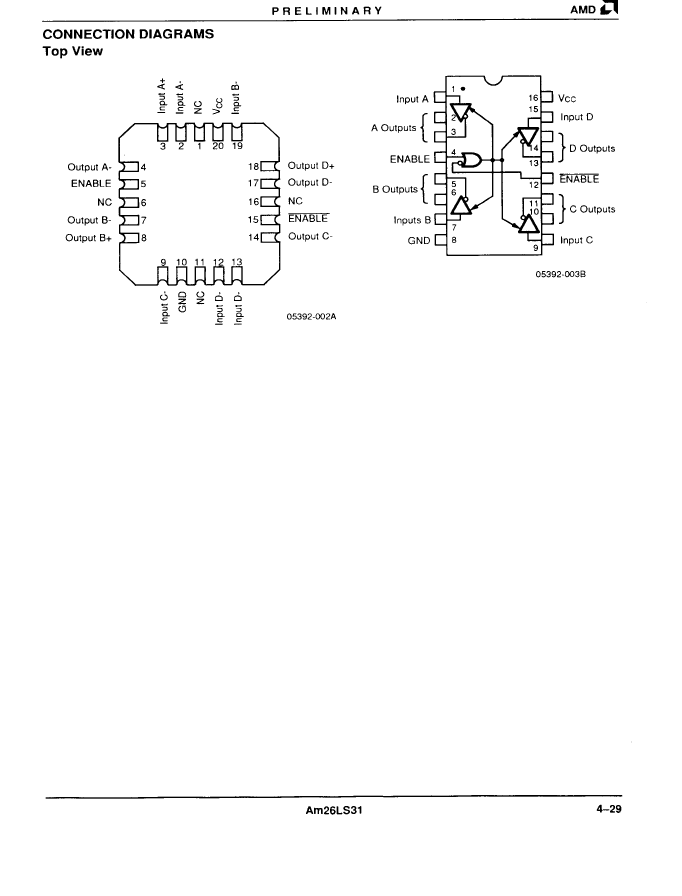

Preview

Download Datasheet

View All

5962-7802301M2A Related Products

	5962-7802301M2A	AM26LS31/B2A	AM26LS31/BEA	AM26LS31DCB	AM26LS31/BFA	5962-7802301MEA	5962-7802301MFA
Description	Line Driver, 4 Func, 4 Driver, CQCC20, 0.358 X 0.358 INCH, 0.100 HEIGHT, CERAMIC, LCC-20	Line Driver, 4 Func, 4 Driver, BIPolar, CQCC20, LLCC-20	Line Driver, 4 Func, 4 Driver, BIPolar, CDIP16, CERAMIC, DIP-16	Line Driver, 4 Func, 4 Driver, BIPolar, CDIP16, CERAMIC, DIP-16	Line Driver, 4 Func, 4 Driver, BIPolar, CDFP16, CERAMIC, FP-16	Line Driver, 4 Func, 4 Driver, BIPolar, CDIP16,	Line Driver, 4 Func, 4 Driver, BIPolar, CDFP16,
package instruction	QCCN,	QCCN, LCC20,.35SQ	DIP, DIP16,.3	DIP, DIP16,.3	DFP, FL16,.3	DIP,	DFP,
Reach Compliance Code	unknown	unknow	unknow	unknow	unknow	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Differential output	YES	YES	YES	YES	YES	YES	YES
Number of drives	4	4	4	4	4	4	4
Input properties	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER
Interface standards	GENERAL PURPOSE	EIA-422; FED STD 1020	EIA-422; FED STD 1020	EIA-422; FED STD 1020	EIA-422; FED STD 1020	EIA-422; FED STD 1020	EIA-422; FED STD 1020
JESD-30 code	S-CQCC-N20	S-CQCC-N20	R-GDIP-T16	R-GDIP-T16	R-GDFP-F16	R-GDIP-T16	R-GDFP-F16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Number of functions	4	4	4	4	4	4	4
Number of terminals	20	20	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	QCCN	DIP	DIP	DFP	DIP	DFP
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	FLATPACK	IN-LINE	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.25 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.75 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	YES	NO	YES
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT
Terminal location	QUAD	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL
maximum transmission delay	30 ns	30 ns	30 ns	30 ns	30 ns	30 ns	30 ns
Base Number Matches	1	1	1	1	1	1	1
Parts packaging code	QLCC	QLCC	DIP	DIP	DFP	-	-
Contacts	20	20	16	16	16	-	-
Filter level	MIL-STD-883	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-	38535Q/M;38534H;883B	-	-
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	-	-
High level input current maximum value	-	0.00002 A	0.00002 A	0.00002 A	0.00002 A	-	-
length	-	8.89 mm	19.431 mm	19.431 mm	10.16 mm	19.43 mm	-
Minimum output swing	-	2 V	2 V	2 V	2 V	-	-
Output characteristics	-	3-STATE	3-STATE	3-STATE	3-STATE	-	-
Output polarity	-	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	-	-
Encapsulate equivalent code	-	LCC20,.35SQ	DIP16,.3	DIP16,.3	FL16,.3	-	-
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-
power supply	-	5 V	5 V	5 V	5 V	-	-
Maximum seat height	-	2.54 mm	5.08 mm	5.08 mm	2.159 mm	5.08 mm	2.032 mm
technology	-	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	-	-
Terminal pitch	-	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-
width	-	8.89 mm	7.62 mm	7.62 mm	6.731 mm	7.62 mm	6.35 mm
