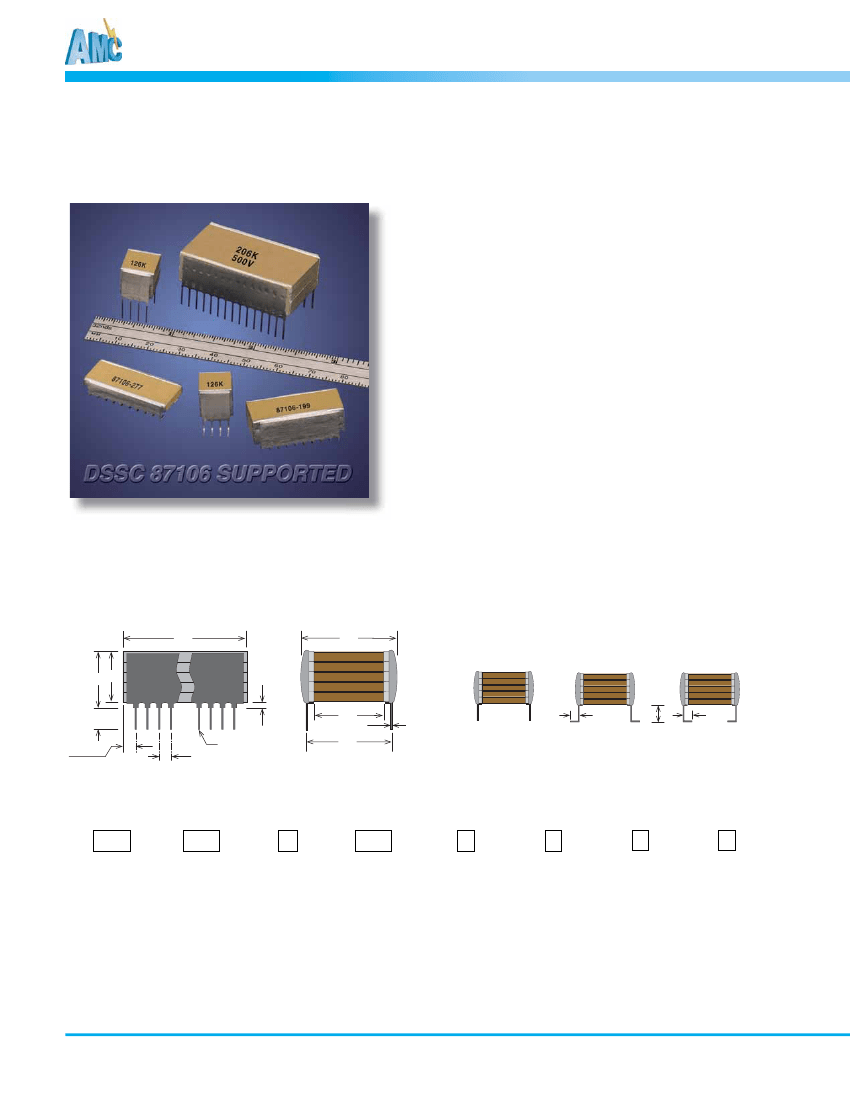

Switch-Mode ceramic capacitors feature large capacitance
values and exhibit low ESR (equivalent series resistance)
and low ESL (equivalent series inductance) making them
well suited for high power and high frequency applications
where tantalum or aluminum electrolytic capacitors may
not be suitable. AMC offers two series of these devices.
The P-Series feature mechanical and pin-out configurations
per DSCC 87106 and 88011 drawings while the E-Series
feature mechanical and pin-out configurations more
common in European design applications.
K
EY
F
EATURES
• P-Series Approved to DSCC Drawings 87106 & 88011
MIL-PRF-49470
• E-Series Common European Lead Styles available to
MIL-PRF-49470 requirements.
• NPO & X7R Dielectrics, 50 to 500 VDC Ratings
• Low ESR / Low ESL, Ideal for SMPS Filtering Applications
M
ECHANICAL
C
HARACTERISTICS
D
E
• Custom Sizes, Voltages, and Values Available
Straight Lead
B A
L-Lead
J-Lead
.070"
±
.010
.250" MIN
.055"
±
.010
.020"
±
.002
.100" MAX
.025" MIN
.100" TYP
F
.010"
±
.002
.050" min
.050" min
C
H
OW TO
O
RDER
201
VOLTAGE
Standard Voltages:
500 = 50 V
101 = 100 V
201 = 200 V
501 = 500 V
P03
CASE SIZE
See Chart
W
DIELECTRIC
N = NPO
B = BX
W = X7R
275
CAPACITANCE
1st two digits are
significant; third digit
denotes number of
zeros.
101 = 100 pF
102 = 1000 pF
103 = 0.01 µF
105 = 1.00 µF
K
TOLERANCE
J = ± 5%
K = ± 10%
L = ± 15%
M
N
Z
P
=
=
=
=
± 20%
± 30%
+80% -20%
+100% -0%
J
LEAD STYLE
J = “J” Leads
(formed in)
K = “J” Leads with
reduced height of
.045” +/- .010”
L = “L” Leads
(formed out)
M = “L” Leads with
reduced height of
.045” +/- .010”
N = Straight Lead
4
MARKING
3 = Specified
4 = Standard
Marking
H
SPECIAL CODE
C = Standard Part
H = Group A Tested
Part number written: 201P03W275KJ4H
6
Advanced Monolythic Ceramics, Inc., A Johanson Company 3101 Constitution Avenue, Olean, New York 14760 • (716) 372-5225 • Fax (716) 372-5467
www.amccaps.com
S
WITCH
-M
ODE
C
ERAMIC
C
APACITORS
I
MPEDANCE VS
F
REQUENCY
(T
YPICAL
)

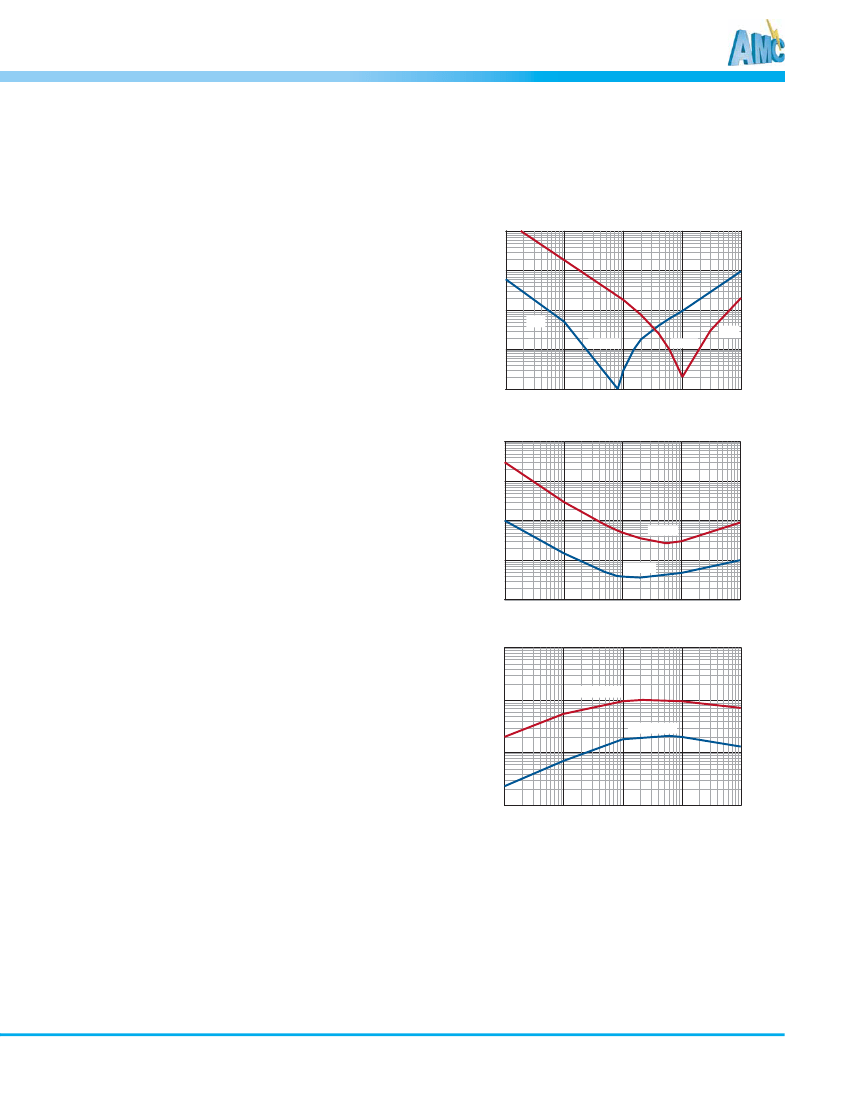

The left-hand portion of the curves represents the
capacitive reactance of two typical values. The
impedance decreases until series resonance is reached.
At this point (the bottom of the V), the only component
of the impedance is the ESR. At higher frequencies (the
inductive portion) the ESR remains relatively low so that
effective filtering is maintained.
Impedance (ohms)
10
1
0.1
X
C
X
L
0.01
270
μF
10
μF
0.001
0.001
0.01
0.1
Frequency (MHz)
1
10
ESR
VS
F
REQUENCY
(T
YPICAL
)
These curves reflect the very low ESR of two typical
values. These ESRs are much lower than Tantalums or
Aluminum electrolytics of the same values. The result
is the ability to provide filtering (low loss) and to handle
high power requirements.
ESR (ohms)
1
0.1
0.01
10
μF
0.001
270
μF
0.0001
0.001
0.01
0.1
Frequency (MHz)
1
10
R
IPPLE
C
URRENT VS
F
REQUENCY
(T
YPICAL
)
Here are two examples of the ability of Switch-Mode
capacitors to handle high values of ripple current (high
power) at various frequencies. Refer to the “AC Power
Computations” applications note or contact AMC
Applications Engineering for more information.
1000
Ripple Current (Amperes)
100
P56, 270
μ
F
P03, 10
μ
F
10
1
0.001
0.01
0.1
Frequency (MHz)
1
10
S
OLDERING
P
RECAUTIONS
The large ceramic mass of Switch-Mode capacitors increases their susceptibility to damage from thermal shock
during soldering. Parts should be pre-heated to within 50°C of the peak soldering temperature and the pre-
heating cycle’s thermal gradient should be limited to a maximum of 2°C per second.
7
Advanced Monolythic Ceramics, Inc., A Johanson Company 3101 Constitution Avenue, Olean, New York 14760 • (716) 372-5225 • Fax (716) 372-5467
www.amccaps.com
S
WITCH
-M
ODE
C
ERAMIC
C
APACITORS
P-S
ERIES
S
WITCH
-M
ODE
C
APACITANCE
/ V
OLTAGE
S
ELECTION
CASE
SIZE
P05
P25
P35
P45
P55
P04
P24
P34
P44
P54
P03
P23
P33
P43
P53
P01
P21
P31
P41
P51
P02
P22
P32
P42
P52
P06
P26
P36
P46
P56
NPO Max Capacitance (µF)
50V
100V 200V 500V
0.07
0.05
0.04
0.02
0.14
0.10
0.08
0.04
0.21
0.15
0.12
0.06
0.28
0.20
0.16
0.08
0.35
0.25
0.20
0.10
0.22
0.15
0.12
0.07
0.44
0.30
0.24
0.14
0.66
0.45
0.36
0.21
0.88
0.60
0.48
0.28
1.1
0.75
0.60
0.35
0.70
0.50
0.39
0.22
1.4
1.0
0.78
0.44
2.1
1.5
1.2
0.66
2.8
2.0
1.5
0.88
3.5
2.5
2.0
1.1
1.4
1.0
0.75
0.44
2.8
2.0
1.5
0.88
4.2
3.0
2.2
1.3
5.6
4.0
3.0
1.8
7.0
5.0
3.7
2.2
2.0
1.4
1.0
0.6
4.0
2.8
2.0
1.2
6.0
4.2
3.0
1.8
8.0
5.6
4.0
2.4
10
7.0
5.0
3.0
4.0
2.8
2.2
1.2
8
5.6
4.4
2.4
12
8.4
6.6
3.6
16
11
8.8
4.8
20
14
11
6
BX Max Capacitance
50V
100V 200V
1.3
0.70
0.37
2.6
1.4
0.74
3.9
2.1
1.1
5.2
2.8
1.5
6.5
3.5
1.8
4.0
2.0
1.1
8.0
4.0
2.2
12
6.0
3.3
16
8
4.4
20
10
5.5
10
6.8
3.5
20
13
7.0
30
20
10
40
27
14
50
34
17
20
13
7.0
40
27
14
60
40
21
80
54
28
100
68
35
30
19
10
60
38
20
90
57
30
120
76
40
150
95
50
69
40
20
130
80
40
200
120
60
270
160
80
340
200
100
(µF)
500V
0.17
0.34
0.51
0.68
0.85
0.50
1.0
1.5
2.0
2.5
1.5
3.0
4.5
6.0
7.5
3.0
6.0
9.0
12
15
5
9
13
18
22
9
18
27
36
45
X7R Max Capacitance
50V
100V 200V
3.0
2.2
1.0
6.0
4.4
2.0
9
6.6
3.0
12
8.8
4.0
15
11
5.0
9
6.5
3.0
18
13
6
27
19
9
36
26
12
45
32
15
28
20
9.5
56
40
19
84
60
28
112
80
38
140
100
47
50
40
19
100
80
38
150
120
57
200
160
76
250
200
95
75
55
25
150
110
50
220
160
75
300
220
100
370
270
125
160
110
50
320
220
100
480
330
150
640
440
200
800
550
250
(µF)
500V
0.50
1.0
1.5
2.0
2.5
1.5
3.0
4.5
6.0
7.5
4.7
9.4
14
18
23
9.4
18
27
36
46
14
28
42
56
70
25
50
75
100
125
Dielectric specifications may be found on page 16.
Contact the factory for RoHS products.
If you don’t see it here, just ask.
MADE in the USA
8
Advanced Monolythic Ceramics, Inc., A Johanson Company 3101 Constitution Avenue, Olean, New York 14760 • (716) 372-5225 • Fax (716) 372-5467
www.amccaps.com
S
WITCH
-M
ODE
C
ERAMIC
C
APACITORS
P-S
ERIES
S
WITCH
-M
ODE
M
ECHANICAL
C
HARACTERISTICS
CASE
SIZE
P05
P25
P35
P45
P55
P04
P24
P34
P44
P54
P03
P23
P33
P43
P53
P01
P21
P31
P41
P51
P02
P22
P32
P42
P52
P06
P26
P36
P46
P56
A
(max”)
.120
.240
.360
.480
.650
.120
.240
.360
.480
.650
.120
.240
.360
.480
.650
.120
.240
.360
.480
.650
.120
.240
.360
.480
.650
.120
.240
.360
.480
.650
B
(max”)
.185
.305
.425
.545
.715
.185
.305
.425
.545
.715
.185
.305
.425
.545
.715
.185
.305
.425
.545
.715
.185
.305
.425
.545
.715
.185
.305
.425
.545
.715
C
±.025”
D
(min.”)
D
(max”)
E
(max”)
F
(min.”)
Leads
per side
.250
0.224
0.275
.300
.080
3
.400
0.350
0.425
.440
.180
4
.450
0.950
1.075
.500
.180
10
.450
1.950
2.075
.500
.180
20
.800
1.450
1.535
.870
.530
15
1.250
1.950
2.075
1.350
.980
20
9
