3-338313-2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 3-338313-2

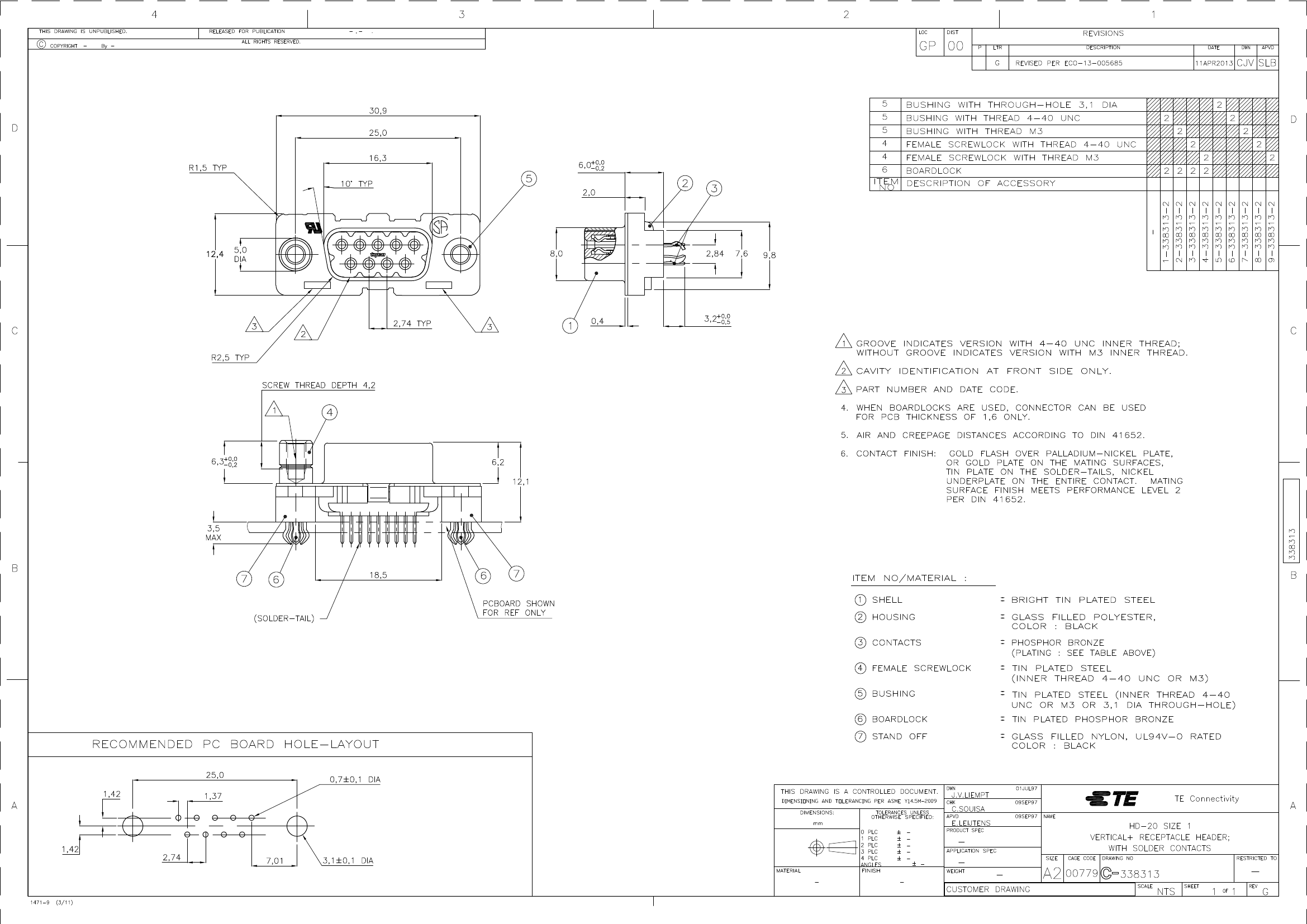

Preview

3-338313-2: Description9P.HDP20 REC. ASSY; CategoryThe connector The connector; File Size118KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-338313-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-338313-2	-	-	View	Buy Now

3-338313-2 Overview

9P.HDP20 REC. ASSY

3-338313-2 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	9 weeks 1 day
Other features	AMPLIMITE
body width	0.488 inch
subject depth	0.236 inch
body length	1.217 inch
Body/casing type	SOCKET
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.108 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	SCREWLOCKS
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Terminal length	0.126 inch
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

3-338313-2 Related Products

	3-338313-2	FS3SX72A2272MLF	5-338313-2
Description	9P.HDP20 REC. ASSY	Cable Assembly,	9POS.HD-20 REC.ASSY
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	not_compliant	compliant	not_compliant
Brand Name	AMP	-	AMP
Is it lead-free?	Lead free	-	Lead free
Factory Lead Time	9 weeks 1 day	-	26 weeks
Other features	AMPLIMITE	-	AMPLIMITE
body width	0.488 inch	-	0.488 inch
subject depth	0.236 inch	-	0.236 inch
body length	1.217 inch	-	1.217 inch
Body/casing type	SOCKET	-	SOCKET
Connector type	D SUBMINIATURE CONNECTOR	-	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	-	Tin (Sn)
Contact point gender	FEMALE	-	FEMALE
Contact material	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE
contact mode	STAGGERED	-	STAGGERED
Contact style	RND PIN-SKT	-	RND PIN-SKT
DIN compliance	NO	-	NO
empty shell	NO	-	NO
Filter function	NO	-	NO
IEC compliance	NO	-	NO
Insulator color	BLACK	-	BLACK
insulator material	GLASS FILLED POLYESTER	-	GLASS FILLED POLYESTER
JESD-609 code	e3	-	e3
MIL compliance	NO	-	NO
Plug contact pitch	0.108 inch	-	0.108 inch
Match contact row spacing	0.112 inch	-	0.112 inch
Mixed contacts	NO	-	NO
Installation option 1	#4-40	-	HOLE .112-.124
Installation option 2	SCREWLOCKS	-	LOCKING
Installation method	STRAIGHT	-	STRAIGHT
Installation type	BOARD	-	BOARD
PCB row number	2	-	2
Number of rows loaded	2	-	2
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
PCB contact pattern	STAGGERED	-	STAGGERED
PCB contact row spacing	2.8448 mm	-	2.8448 mm
Guideline	UL	-	UL
reliability	COMMERCIAL	-	COMMERCIAL
Shell surface	TIN	-	TIN
Shell material	STEEL	-	STEEL
Housing size	1/E	-	1/E
Terminal length	0.126 inch	-	0.126 inch
Terminal pitch	2.7432 mm	-	2.7432 mm
Termination type	SOLDER	-	SOLDER
Total number of contacts	9	-	9
UL Flammability Code	94V-0	-	94V-0
