AWL254D-G-G-64A-D-R datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> AWL254D-G-G-64A-D-R

Preview

AWL254D-G-G-64A-D-R: DescriptionBoard Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size210KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/; Environmental Compliance

Download Datasheet Parametric View All

AWL254D-G-G-64A-D-R Overview

Board Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle, ROHS COMPLIANT

AWL254D-G-G-64A-D-R Parametric

Parameter Name	Attribute value
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Is it Rohs certified?	Yes
Is Samacsys	N
Objectid	1970256601
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Country Of Origin	Mainland China, Taiwan
ECCN code	EAR99
Total number of contacts	64
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Rated current (signal)	3 A
Other features	ROHS COMPLIANT
Contact point gender	MALE
insulator material	POLYESTER
Terminal pitch	2.54 mm
body width	0.197 inch
subject depth	0.1 inch
body length	3.2 inch
Terminal length	0.118 inch
Match contact row spacing	0.1 inch
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Termination type	SOLDER
Contact completed and terminated	Gold (Au)
Contact style	SQ PIN-SKT
Plug contact pitch	0.1 inch
Options	GENERAL PURPOSE
Contact material	BRASS
contact mode	RECTANGULAR
Mixed contacts	NO
Guideline	UL
UL Flammability Code	94V-0
DIN compliance	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	5000000000 Ω

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

A

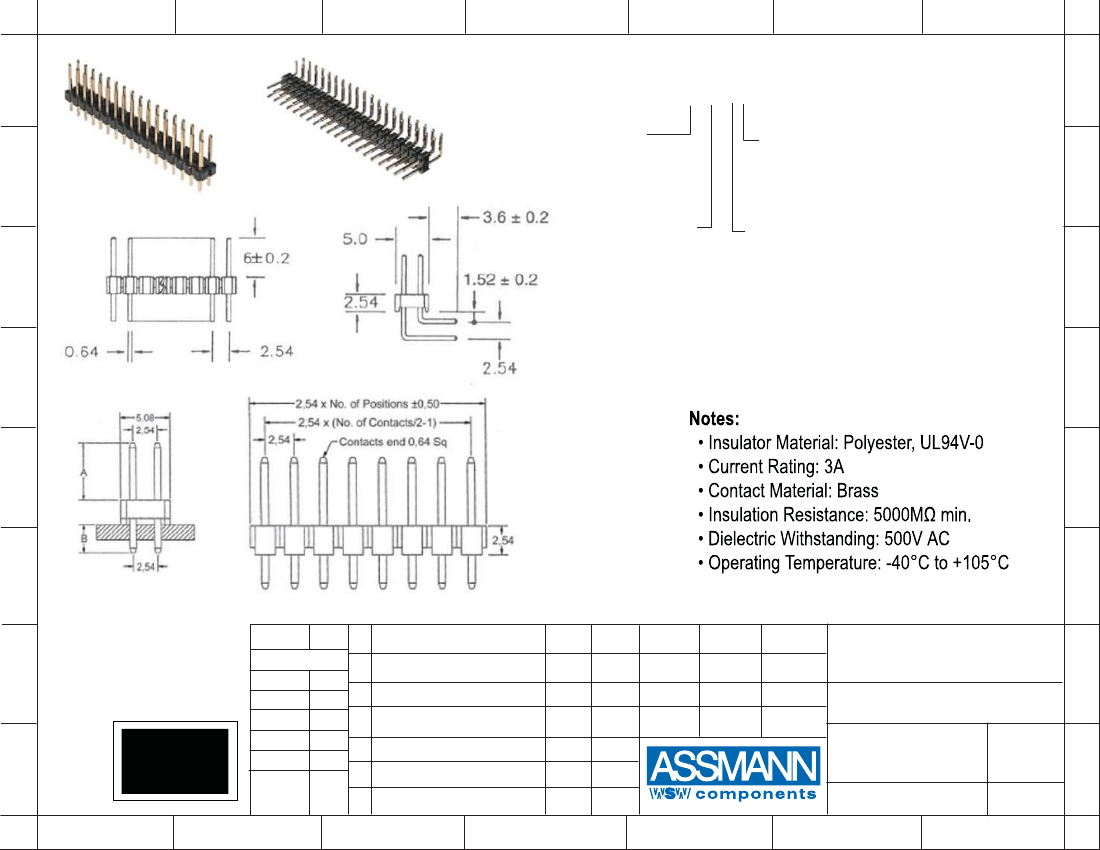

AWL254D-x-x-xx-D-R

Version

Pin Length

D

A

-A=6mm, B=3mm*

-A=7mm, B=3mm (only straight)

G - Straight

A - Right Angled

Contact Plating

A

B

Number of Contacts

04-80

C

G - Flash Gold

Z - Tin

S - Selective

D

E

F

Scale

1:1

Drawn

Approved

11.09.11

Name

Chappell

Item No.

G

TOLERANCE

X.X

X.XX

X.XXX

±0.40

±0.25

±0.15

±3°

AWL254D-x-x-xx-D-R

Title

G

Pin Header, Pitch 2.54, Double Row,

Tin and Gold Plating

H

RoHS

Complaint

1

2

Angle

Drawing No.

rev00

Sheet

H

Modification

Date

Name

Replace

3

4

5

6

7
