ROHS COMPLIANT

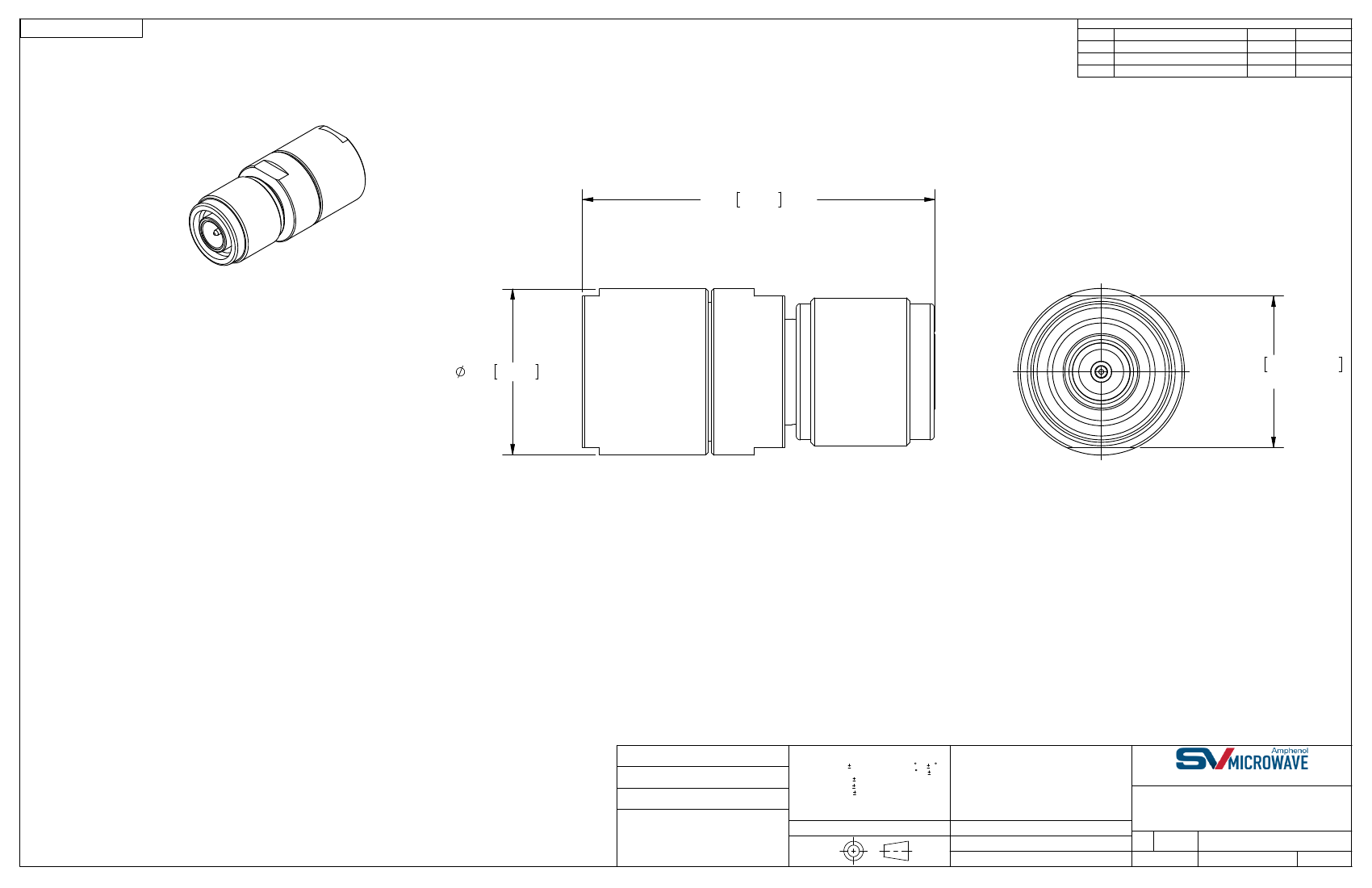

PRODUCT DATA DRAWING
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
DCN 41583
08/15
BNK
1.500 38.10 MAX
MATERIAL:
BODY,
PRESS CAP &
COUPLING NUT:
CONTACT:
LOCK RING:
INSULATOR:
GASKET:
CARRIER TOP &
BOTTOM:
CHIP RESISTOR:
.690 17.53 MAX
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04
PHOSPHOR BRONZE PER ASTM-B 159, ALLOY
51000, TEMPER H08
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
SILICONE RUBBER PER A-A-59588,
CLASS 2B, GRADE 50/60
BRASS PER ASTM B16, ALLOY UNS No. C36000
BERYLLIUM OXIDE SUBSTRATE WITH TANTALUM
NITRIDE RESISTOR
.625±.003 15.88±0.08
ACROSS FLATS
FINISH:
BODY, CONTACT,
CARRIER TOP &
BOTTOM, PRESS CAP&
COUPLING NUT:
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 1.27, OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
MATERIAL:
FINISH:
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
VSWR:
50 OHMS
DC TO 10.0 GHz
1.05:1 MAX AT DC TO 2.4 GHz
1.20:1 MAX AT 2.4 TO 10.0 GHz
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
GPF 08/18/15
BNK 08/18/15
BNK 08/18/15
PTNC PLUG 5 WATT
TERMINATION
95077
SIZE CAGE CODE DWG. NO.
B
M39030/5-04
SHEET 1 OF 1
SCALE: 3:1
