Ordering number:EN4704B
DZD27 to 47
Silicon Planar Type
0.2W Zener Diodes
Features
· Reference voltage use.
· Voltage regulator use.
· Power dissipation : P=200mW.
· High reliability due to planar type.
· Ideally suited for use in hybrid ICs because of
ultrasmall-sized package.
Package Dimensions
unit:mm
1148A
[DZD27 to 47]
1:Anode
2:No Connection
3:Cathode
SANYO:CP
Specifications
Absolute Maximum Ratings
at Ta = 25˚C
Parameter
Power Dissipation
Junction Temperature
Storage Temperature
Symbol
P
Tj
Tstg
Conditions
Ratings
200
150
–55 to +150
Unit
mW
˚C
˚C
Electrical Characteristics
at Ta = 25˚C
Type No.
Zener Characteristics
Zener Voltage
VZ [V]*
Dynamic
Resistance
rd [Ω]
f=1kHz
max
70
80
80
90
100
130
150
2
2
2
2
2
2
2
0.5
0.5
0.5
0.5
0.5
0.5
0.5
21
23
25
27
30
33
36
Current at
which Vz, rd
are measured
[mA]
IR
[µA]
Voltage at
which IR is
measured
VR [V]
Reverse Current
min
DZD27
DZD30
DZD33
DZD36
DZD39
DZD43
DZD47
25.10
28.00
31.00
34.00
37.00
40.00
44.00
max
28.90
32.00
35.00
38.00
41.00
45.00
49.00
* : t=30ms
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE, Tokyo Bldg., 1-10 , Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
71598HA (KT)/31497GI/41096GI/O1494MO (KOTO) AX-8198 No.4704-1/2

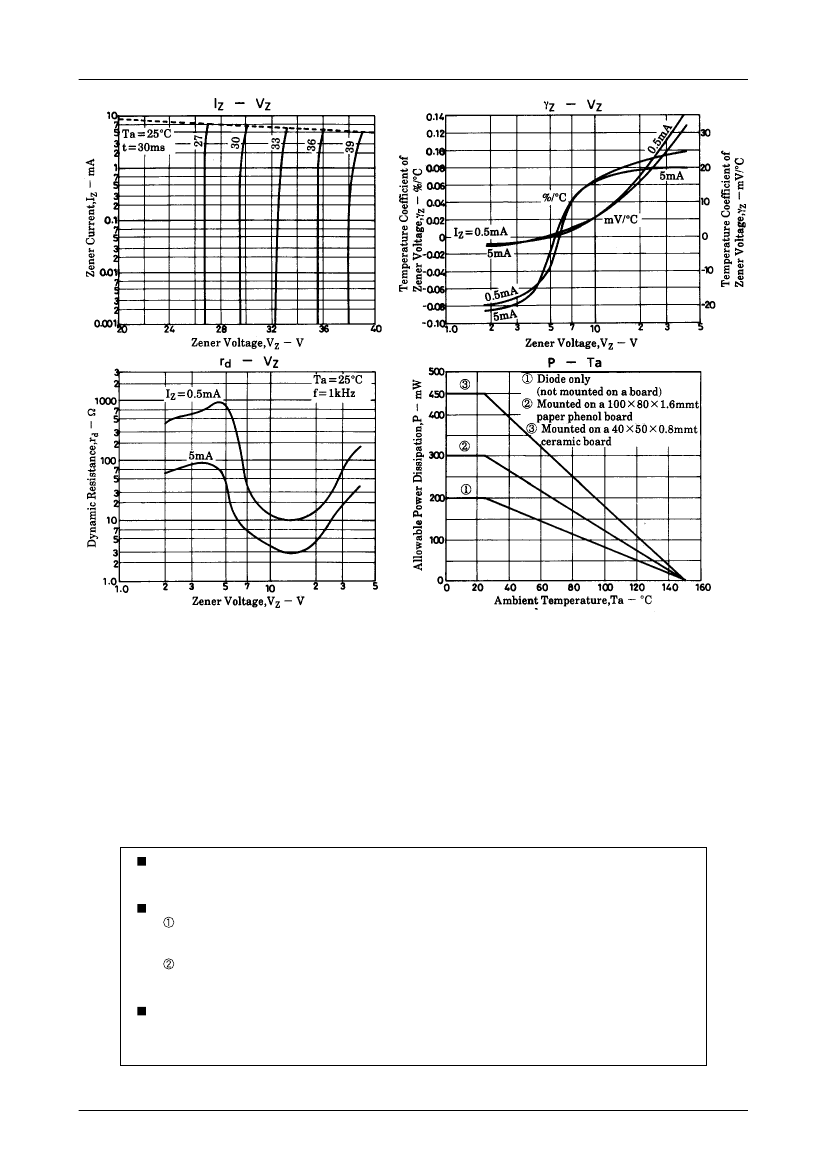

DZD27 to 47
No products described or contained herein are intended for use in surgical implants, life-support systems,
aerospace equipment, nuclear power control systems, vehicles, disaster/crime-prevention equipment and
the like, the failure of which may directly or indirectly cause injury, death or property loss.
Anyone purchasing any products described or contained herein for an above-mentioned use shall:
Accept full responsibility and indemnify and defend SANYO ELECTRIC CO., LTD., its affiliates,
subsidiaries and distributors and all their officers and employees, jointly and severally, against any
and all claims and litigation and all damages, cost and expenses associated with such use:
Not impose any responsibilty for any fault or negligence which may be cited in any such claim or
litigation on SANYO ELECTRIC CO., LTD., its affiliates, subsidiaries and distributors or any of
their officers and employees jointly or severally.
Information (including circuit diagrams and circuit parameters) herein is for example only; it is not guarant-
eed for volume production. SANYO believes information herein is accurate and reliable, but no guarantees
are made or implied regarding its use or any infringements of intellectual property rights or other rights of
third parties.
This catalog provides information as of July, 1998. Specifications and information herein are subject to
change without notice.
PS No.4704-2/2
