AP3S-110.000MHZ-IRB datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> AP3S-110.000MHZ-IRB

AP3S-110.000MHZ-IRB: DescriptionCMOS Output Clock Oscillator, 110MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, SMD, 4 PIN; CategoryPassive components oscillator; File Size3MB，4 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

AP3S-110.000MHZ-IRB Overview

CMOS Output Clock Oscillator, 110MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, SMD, 4 PIN

AP3S-110.000MHZ-IRB Parametric

Parameter Name	Attribute value
Number of terminals	4
Encapsulate equivalent code	LCC4,.1X.13,83/65
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Installation features	SURFACE MOUNT
Maximum operating temperature	50 °C
Minimum operating temperature
physical size	3.2mm x 2.5mm x 1.2,mm
Is it Rohs certified?	Yes
Objectid	1291184026
package instruction	ROHS COMPLIANT, HERMETIC SEALED, SMD, 4 PIN
Reach Compliance Code	compliant
Is Samacsys	N
YTEOL	6.5
Minimum supply voltage	2.25 V
maximum symmetry	55/45 %
Other features	POWER DOWN; TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
longest rise time	3 ns
Maximum slew rate	8 mA
Maximum supply voltage	2.75 V
Nominal supply voltage	2.5 V
frequency stability	25%
Nominal operating frequency	10 MHz
Oscillator type	CMOS
Output load	15 pF
JESD-609 code	e4

Preview

Download Datasheet

View All

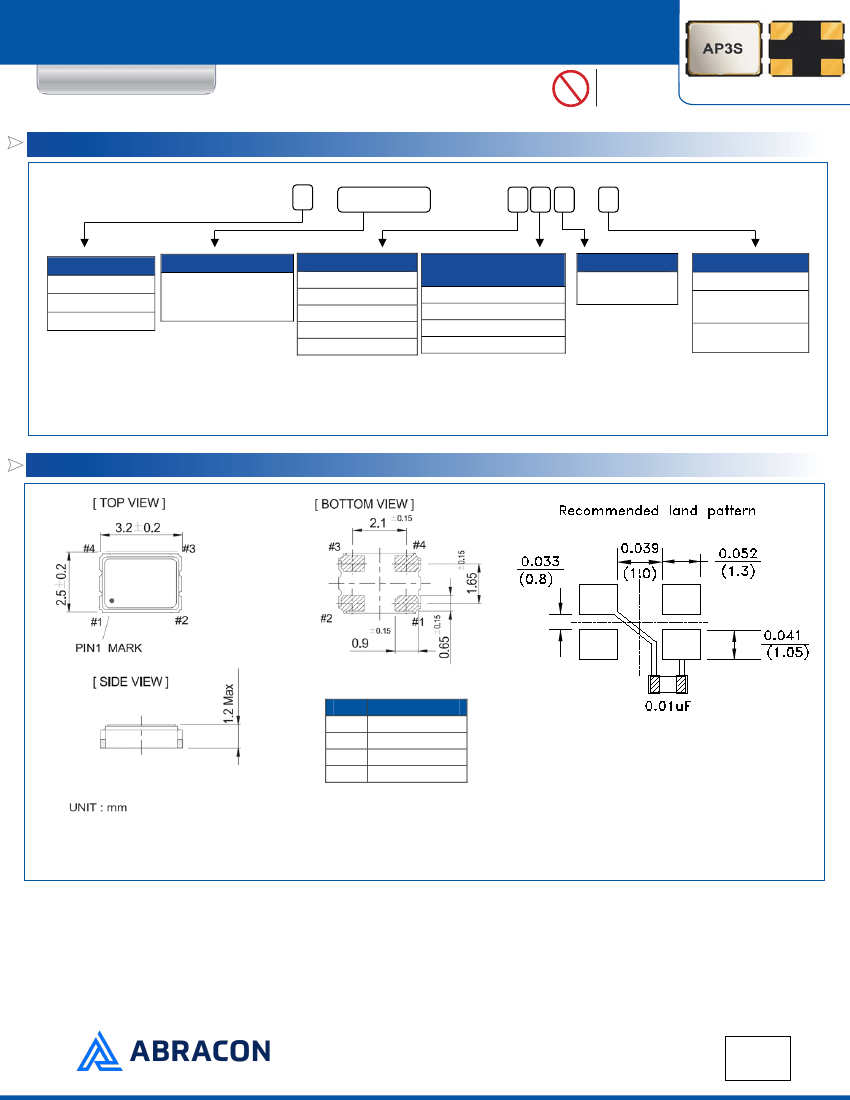

SMD CMOS PROGRAMMABLE CRYSTAL OSCILLATOR

AP3S

FEATURES:

• Per formance comparable to fixed frequency oscillator

• Lowest peak-to-peak jitter

• Low supply current

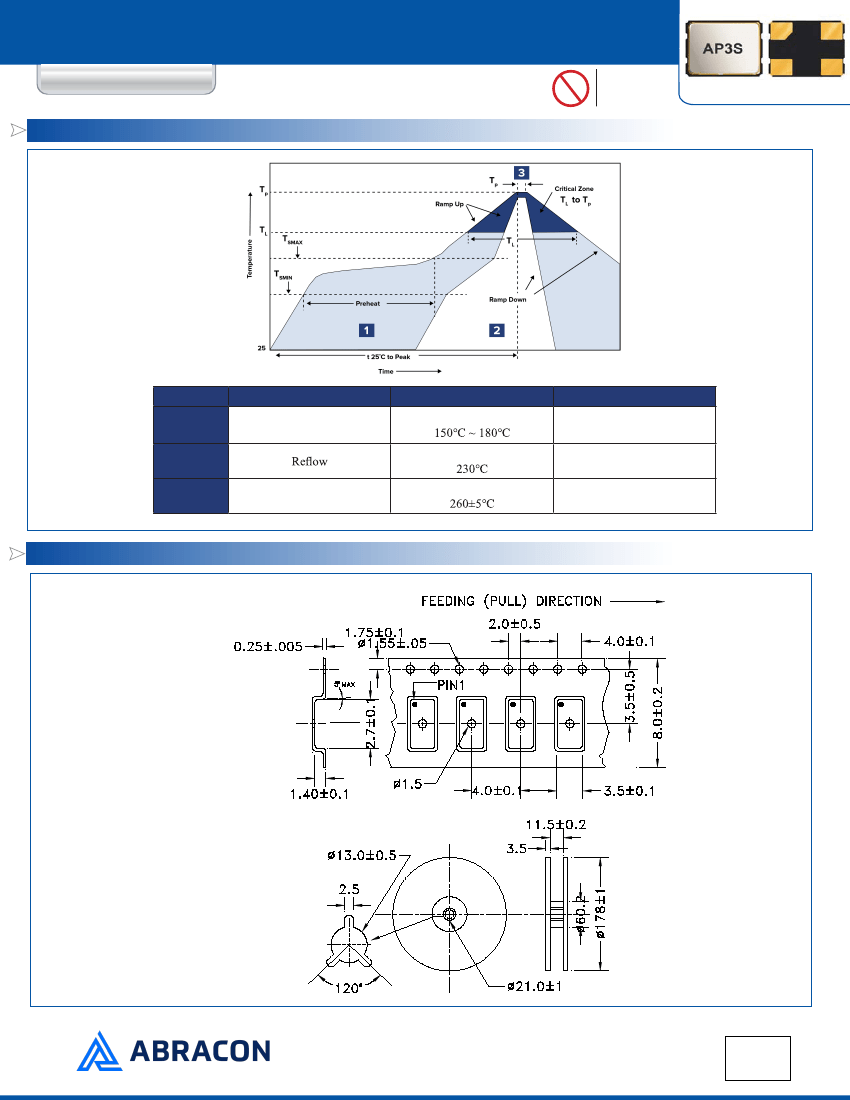

Moisture Sensitivity Level (MSL) –

This product is Hermetically Sealed and

not Moisture Sensitive -MSL = N/A: Not Applicable

RoHS

Compliant

3.2 x 2.5 x 1.2mm

| | | | | | | | | | | | |

| |

ELECTRICAL SPECIFICATIONS:

Parameters

= 3.3V

= 2.5V

= 1.8V

Operating Temperature

Storage Temperature

Overall Frequency Stability*

= 3.3V

Supply Voltage (Vdd)

= 2.5V

= 1.8V

• Short lead time

• Suitable for mass production

• Alternative to long lead-time XO's

For Small

Quantities,

Delivery Time

is 1-5 days

Minimum

-10

-55

-100

2.97

2.25

1.62

Typical

Maximum

200

166

110

10.999

+60

+150

+100

3.63

2.75

1.98

Units

Notes

Frequency Range

MHz

Please contact Abracon for

availability

°C

ppm

See options

Standard

Vdd option 1

Vdd option 2

1MHz ≤ F< 30MHz

30MHz ≤ F< 75MHz

75MHz ≤ F< 133MHz

133MHz ≤ F < 166MHz

166MHz ≤ F < 200MHz

1MHz ≤ F< 30MHz

30MHz ≤ F< 75MHz

75MHz ≤ F< 133MHz

133MHz ≤ F < 166MHz

11MHz

≤ F< 30MHz

30MHz ≤ F< 75MHz

75MHz ≤ F< 110MHz

3.30

2.50

1.80

= 3.3V

Input Current

= 2.5V

= 1.8V

Symmetry****

= 3.3V

Rise and Fall Time

(Tr/Tf)**

= 2.5V

= 1.8V

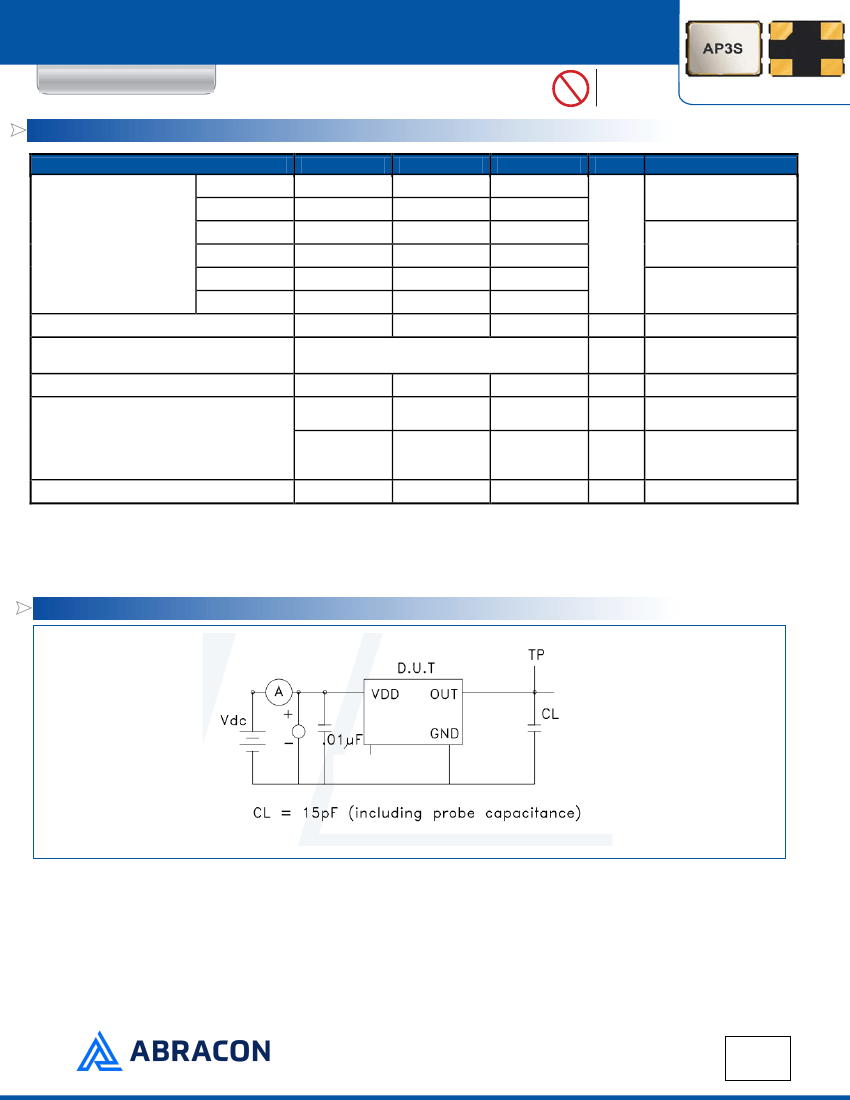

Output Load:

@ 1/2Vdd

1MHz ≤ F < 10MHz

10MHz ≤ F

200MHz

1MHz ≤ F < 10MHz

10MHz ≤ F

166MHz

1MHz ≤ F < 10MHz

10MHz ≤ F

110MHz

CMOS

5101 Hidden Creek Lane Spicewood TX 78669

Phone: 512-371-6159 | Fax: 512-351-8858

For terms and conditions of sale please visit:

www.abracon.com

REVISED:

08.18.2021

ABRACON IS

ISO9001-2015

CERTIFIED
