13PD100-SMA datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 13PD100-SMA

Preview

13PD100-SMA: DescriptionPIN Photodiode, HERMETIC SEALED, TO-46, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size56KB，1 Pages; ManufacturerANADIGICS; Websitehttp://www.anadigics.com

Download Datasheet Parametric Compare View All

13PD100-SMA Overview

PIN Photodiode, HERMETIC SEALED, TO-46, 2 PIN

13PD100-SMA Parametric

Parameter Name	Attribute value
package instruction	HERMETIC SEALED, TO-46, 2 PIN
Reach Compliance Code	unknown
Is Samacsys	N
Configuration	SINGLE
Maximum dark power	2 nA
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	PIN PHOTODIODE
Minimum reverse breakdown voltage	30 V
shape	ROUND
size	0.1 mm
Base Number Matches	1

Preview

Download Datasheet

View All

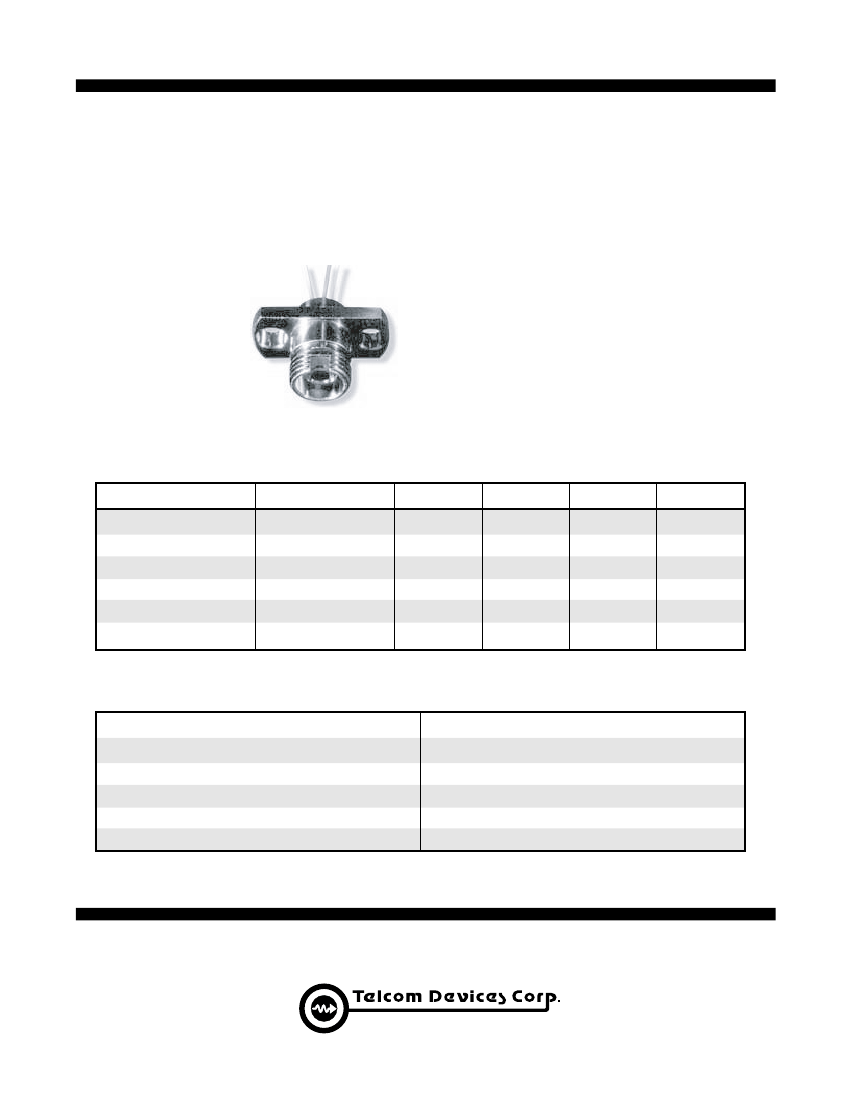

High Speed InGaAs p-i-n Photodiode

13PD100-ST, -SMA, -FC, -SC

Sheet 1 of 1

The 13PD100-ST, an InGaAs photodiode with a 100µm-diameter photosensitive region packaged in a TO-46

header and aligned in an AT&T ST active device mount, is the largest standard device enabling a 1Ghz

frequency cutoff. Planar semiconductor design and dielectric passivation provide superior low noise

performance. Reliability is assured by hermetic sealing and 100% purge burn-in (200°C, 15 hours, Vr =

20V). The ST receptacle is suitable for bulkhead and PC board mounting.

Features:

• Planar Structure

• Dielectric Passivation

• 100% Purge Burn-in

• High Responsivity

DEVICE CHARACTERISTICS

Parameters

Operating Voltage

Dark Current

Capacitance

Responsivity

Rise/Fall

Frequency Response

Test Conditions

–5V

1300nm

(–3dB)

Minimum

Typical

0.5

1.15

0.8

1

Maximum

–20

2

1.9

0.5

Units

Volts

nA

pF

A/W

ns

GHz

0.65

ABSOLUTE MAXIMUM RATINGS

Reverse Voltage

Forward Current

Reverse Current

Operating Temperature

Storage Temperature

Soldering Temperature

30 Volts

10mA

500µA

–40°C to +85°C

250°C

Sheet 1 of 1

829 Flynn Road, Camarillo, CA 93012 • Phone: (805) 445-4500 • Fax: (805) 445-4502

Email: customerservice@telcomdevices.com • Website: www.telcomdevices.com

13PD100-SMA Related Products

	13PD100-SMA	13PD100-SC
Description	PIN Photodiode, HERMETIC SEALED, TO-46, 2 PIN	PIN Photodiode, HERMETIC SEALED, TO-46, 2 PIN
package instruction	HERMETIC SEALED, TO-46, 2 PIN	HERMETIC SEALED, TO-46, 2 PIN
Reach Compliance Code	unknown	unknown
Is Samacsys	N	N
Configuration	SINGLE	SINGLE
Maximum dark power	2 nA	2 nA
Number of functions	1	1
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Optoelectronic device types	PIN PHOTODIODE	PIN PHOTODIODE
Minimum reverse breakdown voltage	30 V	30 V
shape	ROUND	ROUND
size	0.1 mm	0.1 mm
Base Number Matches	1	1
