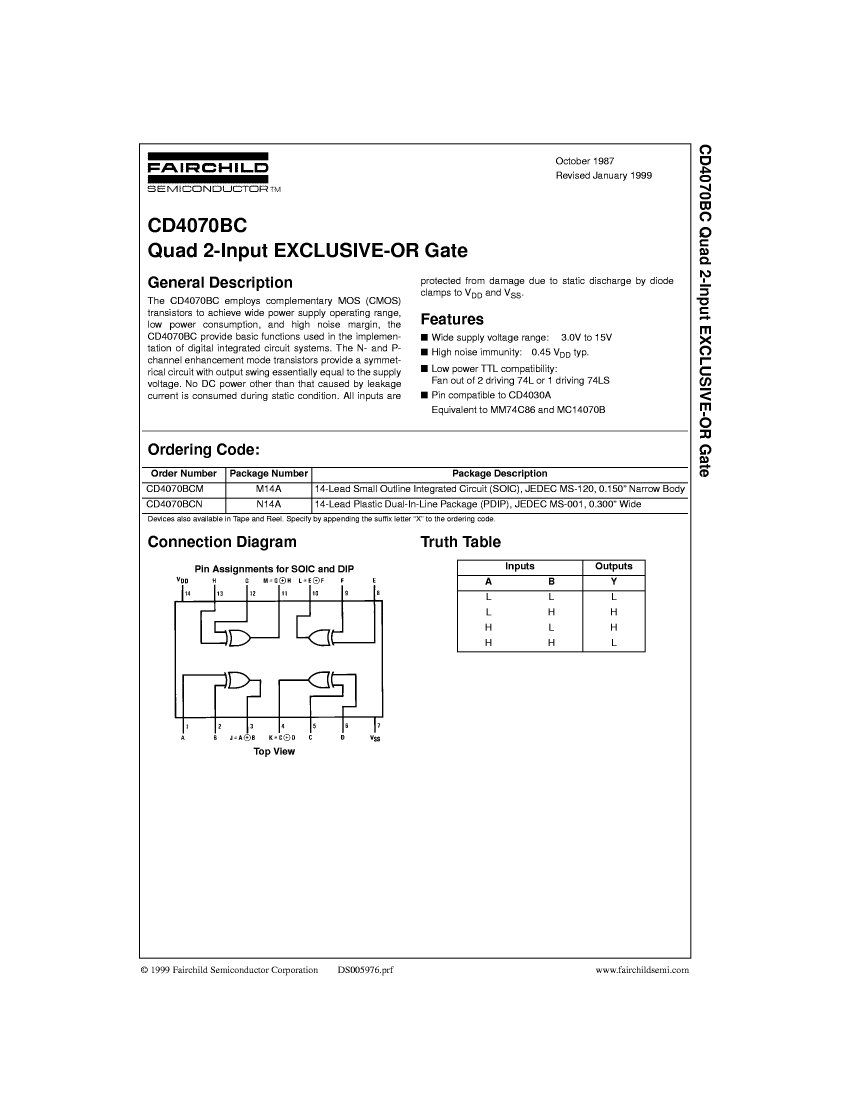

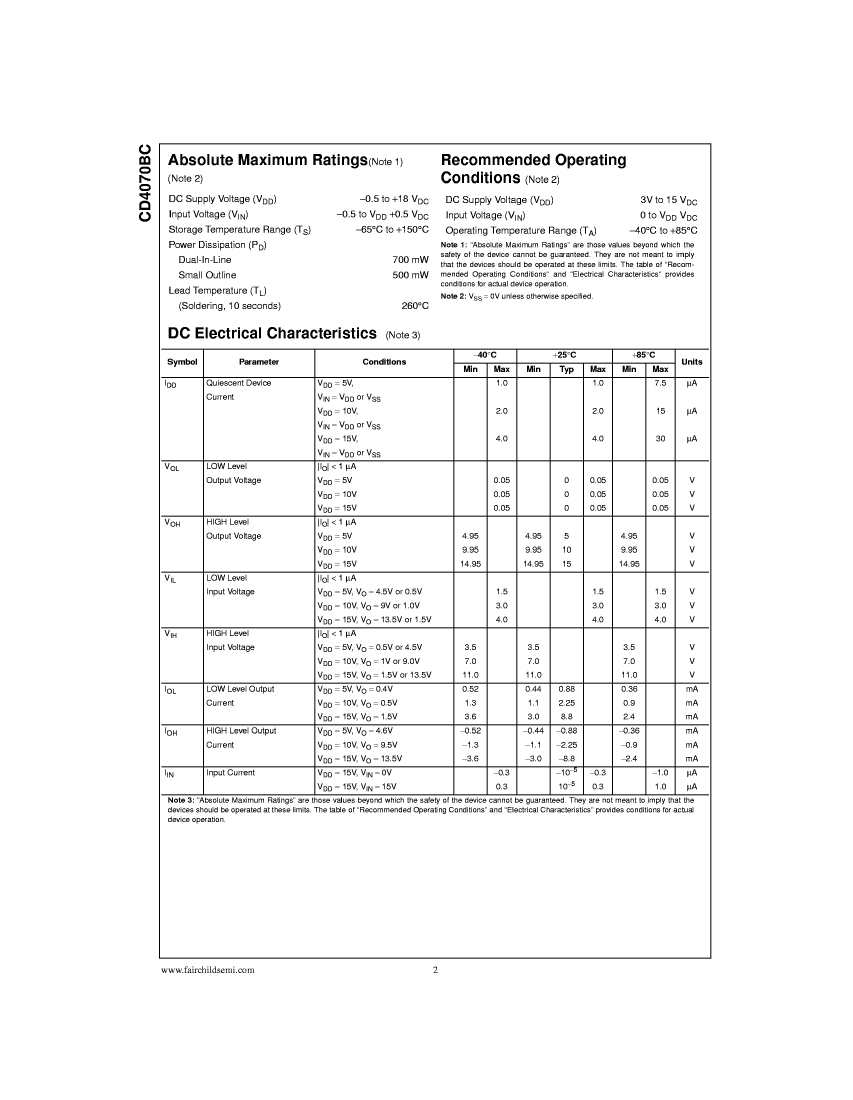

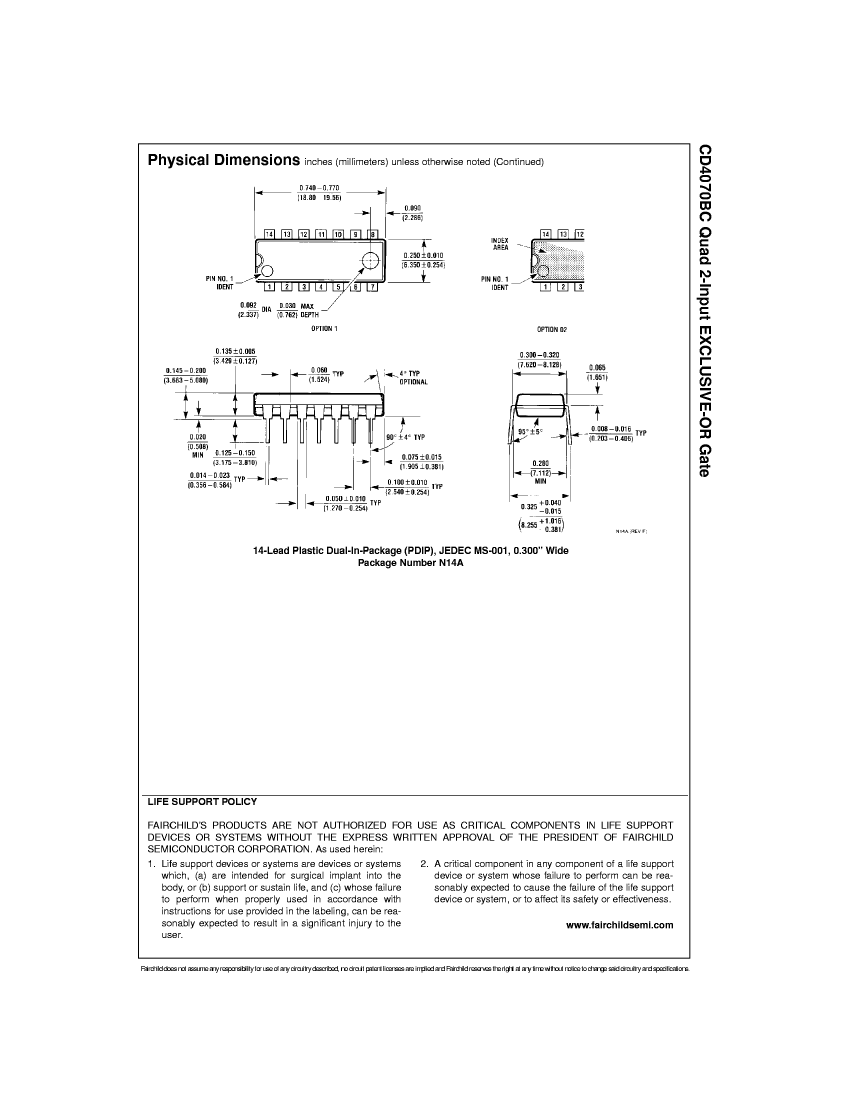

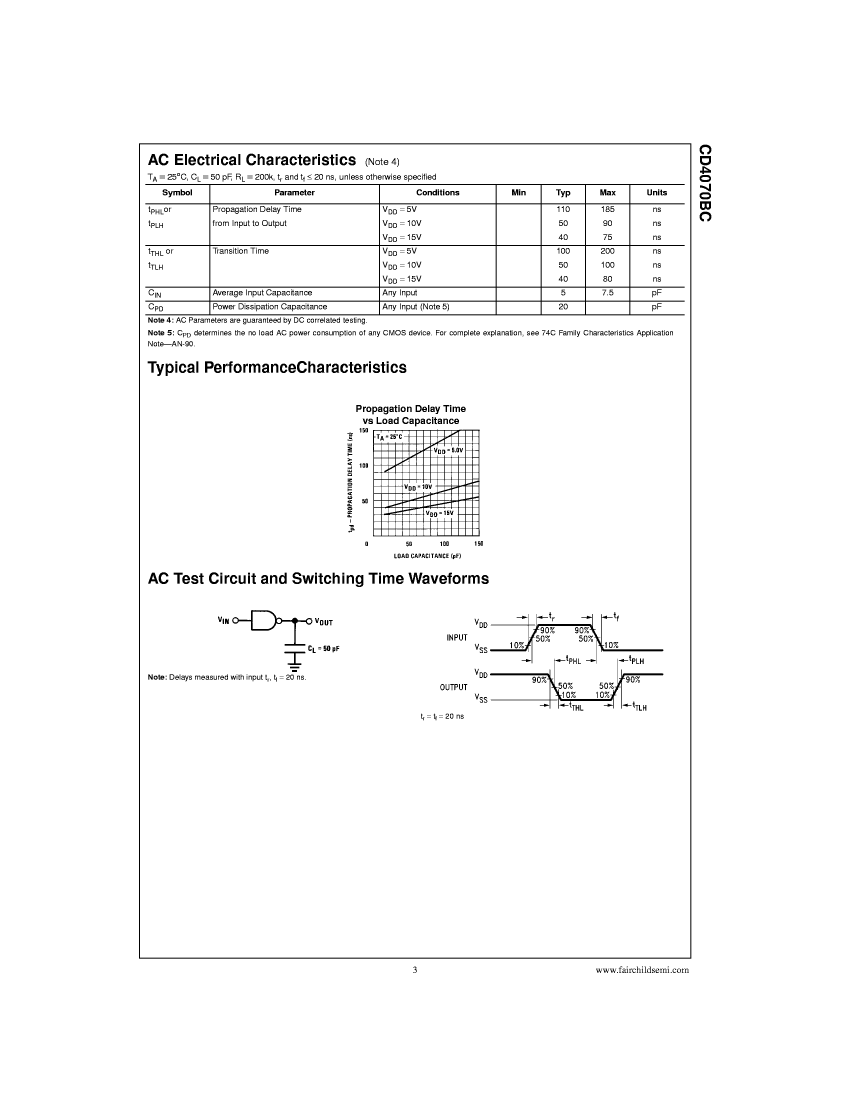

Preview

4070BDCQM: DescriptionXOR Gate, CMOS, CDIP14,; Categorylogic logic; File Size204KB，5 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

4070BDCQM Overview

XOR Gate, CMOS, CDIP14,

4070BDCQM Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	DIP, DIP14,.3
Reach Compliance Code	compliant
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	XOR GATE
Humidity sensitivity level	2A
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
power supply	5/15 V
Prop。Delay @ Nom-Sup	170 ns
Certification status	Not Qualified
Schmitt trigger	NO
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

4070BDCQM Related Products

	4070BDCQM	4070BPCQM	4070BPC	4070BDCQR	4070BPCQR	4070BDC
Description	XOR Gate, CMOS, CDIP14,	XOR Gate, CMOS, PDIP14,	XOR Gate, CMOS, PDIP14,	XOR Gate, CMOS, CDIP14,	XOR Gate, CMOS, PDIP14,	XOR Gate, CMOS, CDIP14,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
JESD-30 code	R-XDIP-T14	R-PDIP-T14	R-PDIP-T14	R-XDIP-T14	R-PDIP-T14	R-XDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	XOR GATE	XOR GATE	XOR GATE	XOR GATE	XOR GATE	XOR GATE
Humidity sensitivity level	2A	2A	2A	2A	2A	2A
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	250	250	250	250	250	250
power supply	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V
Prop。Delay @ Nom-Sup	170 ns	170 ns	170 ns	170 ns	170 ns	170 ns
Schmitt trigger	NO	NO	NO	NO	NO	NO
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30	30	30
Base Number Matches	1	1	1	1	1	1
Certification status	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified
