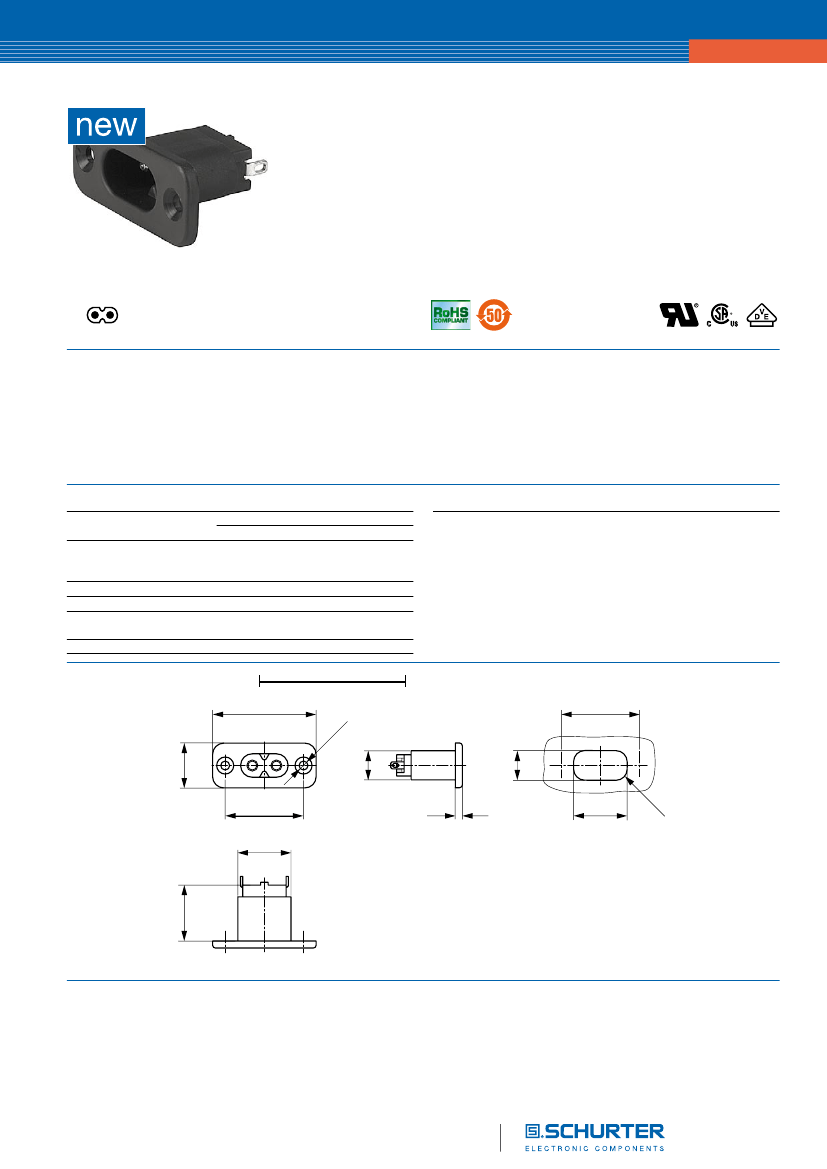

IEC Appliance Inlet C8, Screw-on Mounting, Front Side, Solder or Quick-connect Terminal
2574
C8A
70⁰ C
Description
- Panel Mount:
Screw-on mounting, Frontside
- Appliance Inlet, Pin temperature 70 °C, Protection class II
- Solder, Quick Connect or PCB Terminal
pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,
Mating Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-
Stock-Check, Accessories
Weblinks
Approvals
- VDE Certificate Number: 40002274
- UL File Number: E96454
- CSA File Number: 27324
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
2.5 A / 250 VAC; 50 Hz
2.5 A / 250 VAC; 60 Hz
> 3 kVAC between L-N
> 1.5 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class 2 acc. to IEC 61140
PA6, black / grey / white, UL 94V-0
37 mm
Allowable Operation Temp.
Degree of Protection
Protection Class
Material: Housing
Dimensions
37
ø
3.
2
28
+0.2
10.6
- 0
10.4
16
28
19
2.5
19.2
- 0
+0.2
R
<4
Length of the terminal please find at the order code configuration table
20
Connectors
2574
www.schurter.com/pg07
Config. Code
2574
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
Connectors (Inlets/Outlets)
The characters are placeholders for the correspondingly keys of selections from the key tables.
2574
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Type
Type
protection class 2
2574
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Terminals
Configuration
key
B
Terminal Ground
without terminal
Symbols similar as in table A
Configuration
key
0
2574
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Terminals
Terminal L
short solder terminal (L = 4.8 mm)
long solder terminal (L = 8.5 mm)
Blade terminal (2.8 x 0.8 mm)
Configuration
key
2
3
7
2574
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Color
Color
jet black: RAL9005
silver grey: RAL7001
pure white: RAL9010
Configuration
key
A
B
D
2574
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Terminals
Terminal N
short solder terminal (L = 4.8 mm)
long solder terminal (L = 8.5 mm)
Blade terminal (2.8 x 0.8 mm)
Symbols similar as in table A
Configuration
key
2
3
7
2574
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Style
Style
flange with countersunk holes
flange with through holes
Configuration
key
1
2
Packaging unit
Accessories
100 Pcs
Description
Assorted Covers
Rear Cover
2
