FEATURES:
• Performance comparable to fixed frequency oscillator
• Low RMS phase jitter
Moisture Sensitivity Level (MSL) –
This product is Hermetically Sealed and
not Moisture Sensitive -MSL = N/A: Not Applicable
Pb
RoHS
Compliant
2.5 x 2.0 x 0.81mm
• Short lead time
• Suitable for mass production
ELECTRICAL SPECIFICATIONS:
Parameters
Frequency Range
V
dd
= 3.3V
V
dd
= 2.5V
V
dd
= 1.8V
Minimum
1
1
1
-10
-55
-100
3.125
2.375
1.71
Typical
Maximum
200
200
125
+60
+125
+100
3.465
2.625
1.89
35
Units
MHz
°C
°C
ppm
V
Notes
Operating Temperature
Storage Temperature
Overall Frequency Stability*
V
dd
= 3.3V
V
dd
= 2.5V
Supply Voltage (Vdd)
V
dd
= 1.8V
V
dd
= 3.3V
Input Current
See options
See options
Standard
Vdd option 1
Vdd option 2
3.30
2.50
1.80
V
dd
= 2.5V
V
dd
= 1.8V
30
20
mA
Symmetry***
V
dd
= 3.3V
Rise and Fall Time
(Tr/Tf)**
V
dd
= 2.5V
V
dd
= 1.8V
Output Load:
45
50
55
2
3
4
%
@ 1/2Vdd
ns
15
pF
CMOS
5101 Hidden Creek Lane Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sale please visit:
www.abracon.com
REVISED:
10.26.2021
ABRACON IS
ISO9001-2015
CERTIFIED
Pb
RoHS
Compliant
ELECTRICAL SPECIFICATIONS:
Parameters
V
OL
V
OH
Output Voltage
V
OL
V
OH
V
OL
V
OH
Start-up Time
Tri-state function
"1" (VIH > 0.7*Vdd) or Open: Oscillation
"0" (VIH < 0.3*Vdd):
No Oscillation
(High Impedance)
2.5 x 2.0 x 0.81mm
Minimum
2.97
Typical
Maximum
0.33
0.25
Units
Notes
V
dd
= 3.3V
2.25
0.18
1.62
8
V
V
dd
= 2.5V
V
dd
= 1.8V
ms
Standby current (Power Down option)
1
400
2
2
2
+3.0
uA
ps
ps
ps
ppm
V
dd
= 1.8, 2.5, 3.3V
V
dd
= 3.3V
V
dd
= 2.5V
V
dd
= 1.8V
@+25°C First year
RMS Phase Jitter
1.1
1.5
Aging:
-3.0
* Inclusive of calibration @25°C, operating temperature range, input voltage variation, load variation, and first year aging.
For±20ppm, inclusive of calibration @25°C, operating temperature range, and load variation.
** Transition times are measured between 10% and 90% of Vdd with an output load of 15 pF.
*** Only 40/60% is available for certain frequencies. Please contact Abracon when ordering.
TEST CIRCUIT:
PD
5101 Hidden Creek Lane Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sale please visit:
www.abracon.com
REVISED:
10.26.2021
ABRACON IS
ISO9001-2015
CERTIFIED
Pb
RoHS
Compliant
OPTIONS & PART IDENTIFICATION:
2.5 x 2.0 x 0.81mm
AP2S
Supply Voltage
Blank: 3.3V(*)
1: 2.5V
2: 1.8V
Frequency in MHz
Please specify the
frequency in MHz.
e.g. 14.31818MHz
Blank:
-10°C
~ +60°C
MHz -
Operating Temp.
Overall Freq. Stability
J: ±20ppm (***)
R: ±25ppm
K: ±30ppm
C: ±50ppm
Blank: ±100ppm
B: Power Down (**)
Tri-state pin
* 3.3V is standard
** PDB: Tri-state the output buffer and shut off the oscillator, <400µA when PDB enabled.
*** Contact ABRACON for availability
I: 0°C ~ +50°C
E: -20°C ~ +70°C
F: -30°C ~ +70°C
N: -30°C ~ +85°C
L: -40°C ~ +85°C
T: Tape & Reel
(1k/reel)
T3: Tape & Reel
(3k/reel)
Packaging
Blank: Bulk
OUTLINE DRAWING:
Note 2
Recommend using an approximately 0.01uF bypass
capacitor between Pin 2 and 4.
UNIT: mm
Pin
1
2
3
4
Function
Tri-State
GND/Case
Output
V
dd
Note 1
- Do not leave Pin 1 (Tri-State) floating
- If Pin 1 (Tri-State) is not utilized for toggling, it must be tied to V
dd
(logic 1)
Dimensions: inches (mm)
5101 Hidden Creek Lane Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sale please visit:
www.abracon.com
REVISED:
10.26.2021
ABRACON IS
ISO9001-2015
CERTIFIED

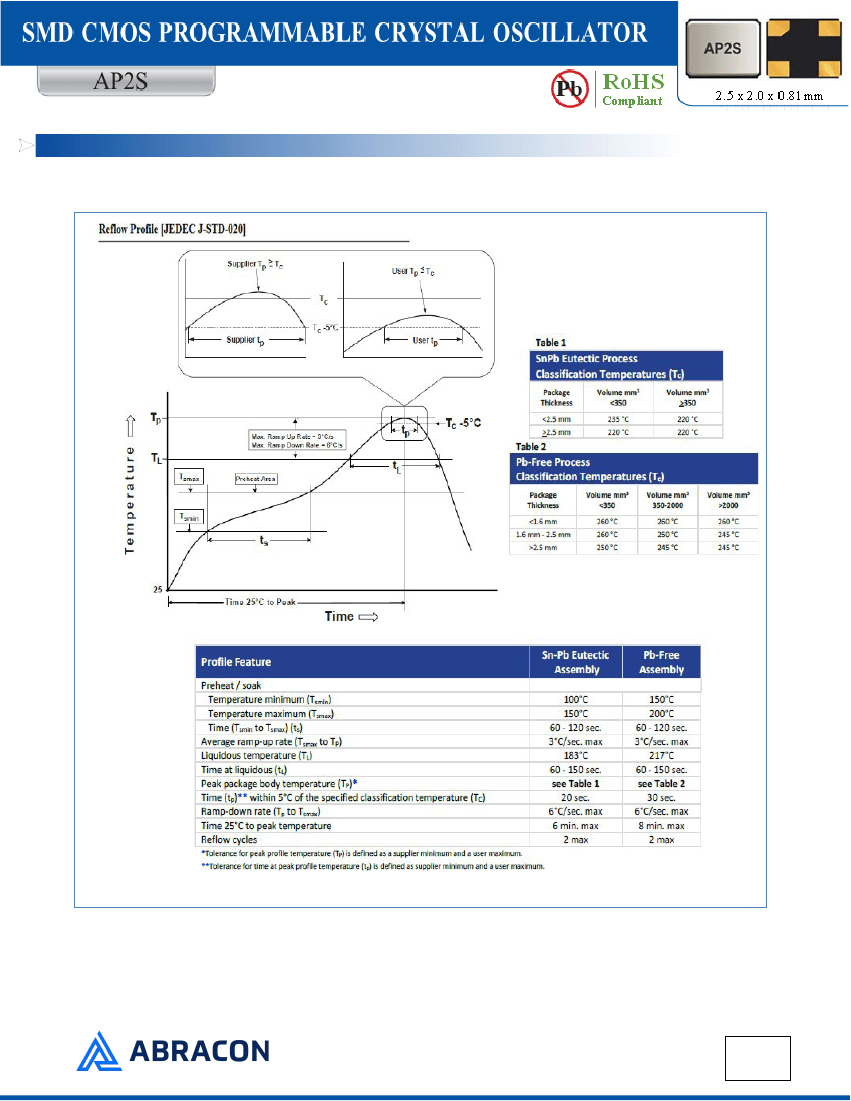

REFLOW PROFILE:
5101 Hidden Creek Lane Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sale please visit:
www.abracon.com
REVISED:
10.26.2021
ABRACON IS
ISO9001-2015
CERTIFIED

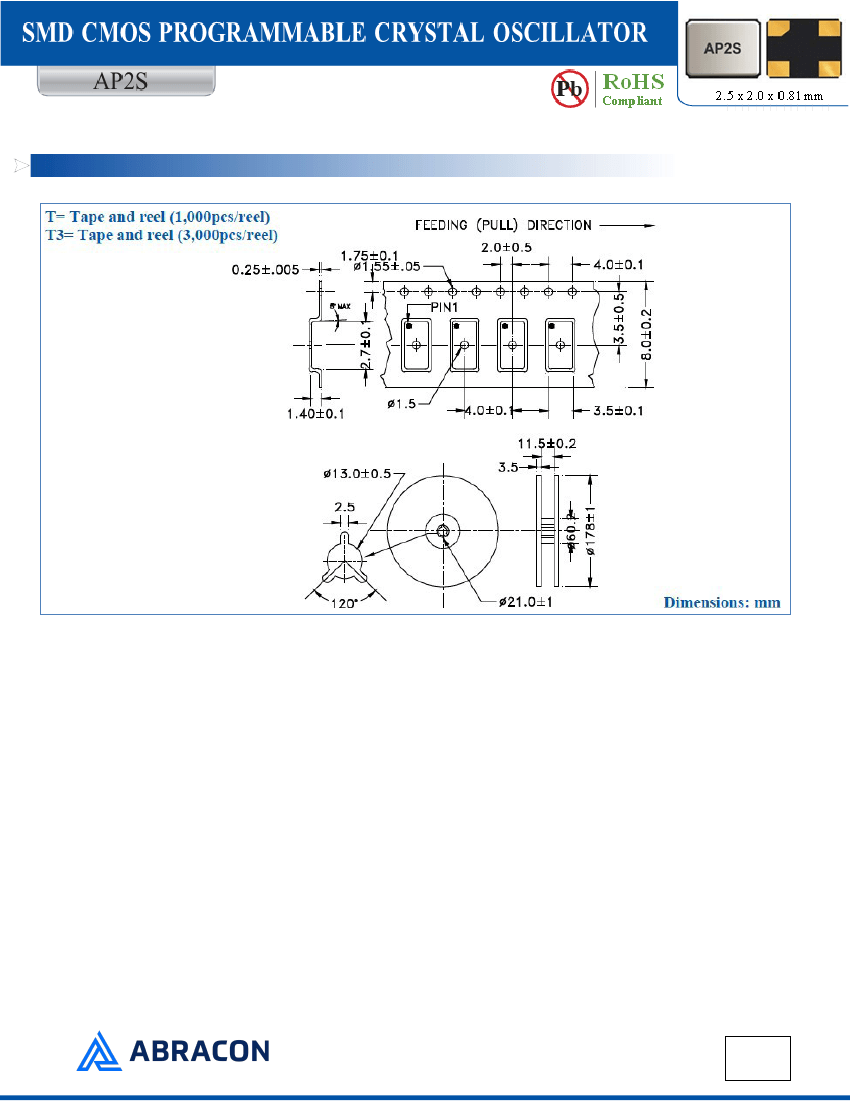

TAPE & REEL:
5101 Hidden Creek Lane Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sale please visit:
www.abracon.com
REVISED:
10.26.2021
ABRACON IS
ISO9001-2015
CERTIFIED
