13600FL228036-01 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 13600FL228036-01

13600FL228036-01: DescriptionBoard Connector, 36 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size88KB，2 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

13600FL228036-01 Overview

Board Connector, 36 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

13600FL228036-01 Parametric

Parameter Name	Attribute value
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
body width	0.193 inch
subject depth	0.203 inch
body length	1.447 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	136
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	6.8072 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	36
Base Number Matches	1

Preview

Download Datasheet

View All

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel.: +49 (0) 5741 23661-0

Fax: +49 (0) 5741 23661-20

E-Mail: info@ratioplast.de

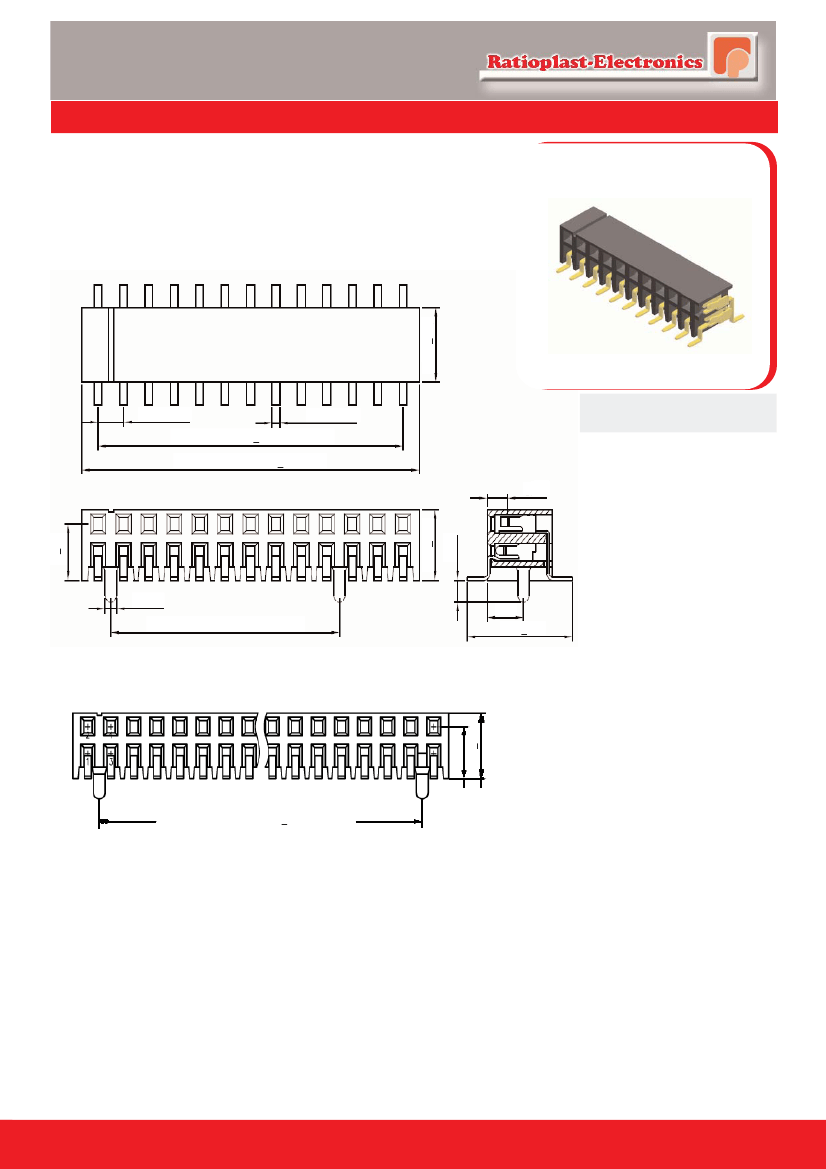

Serie 136

Technische Daten:

Isolierkörper

Farbe

Kontaktmaterial

Nennspannung

Nennstrom

Temperaturbereich

Lötwärmebeständigkeit

BUCHSENLEISTE

FEMALE HEADER

RASTER 2,0mm für Vierkantstift 0,5mm

PITCH 2,0mm for square contact 0,5mm

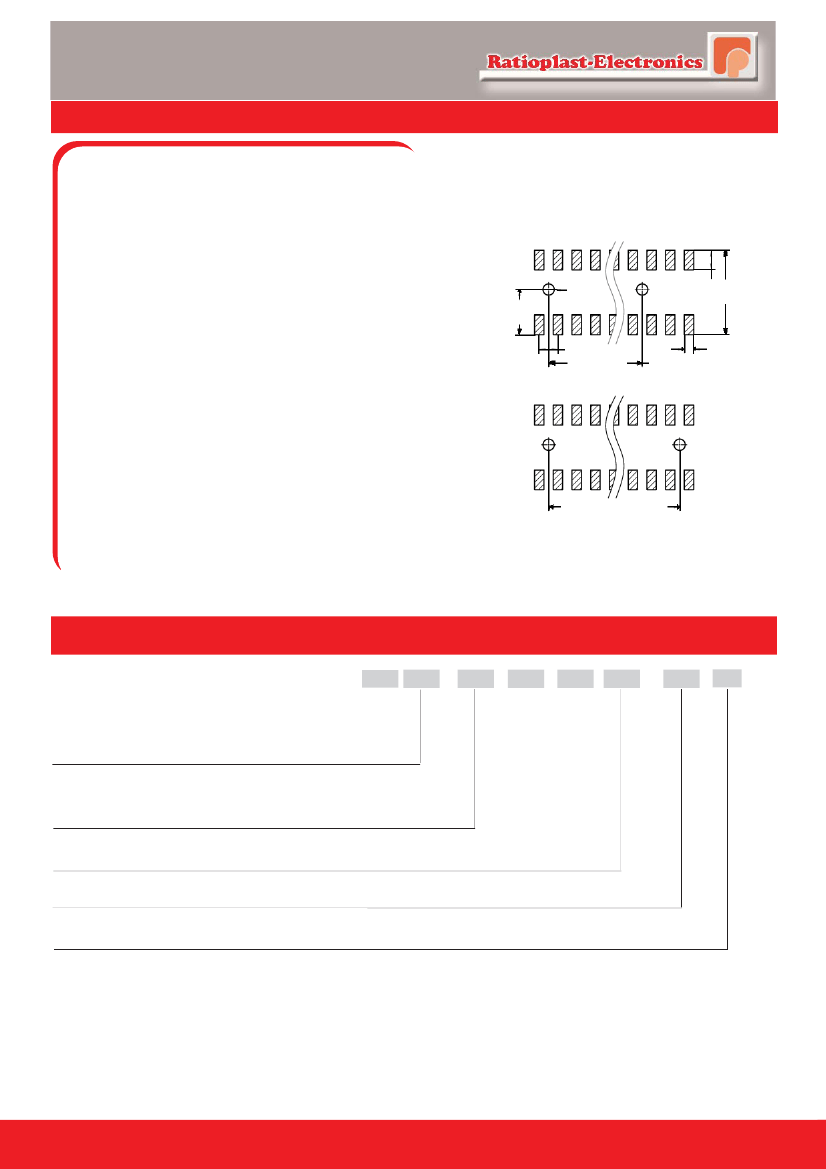

Empfohlenes Leiterplatten-Layout

(Toleranz +0,05)

Recommended P.C.B Layout

(Tolerance +0,05)

Ø 1,10

4,80

Weitere technische Informationen zu den Produkten erhalten Sie auf

Anfrage

Technical Data

Insulator

Colour

Contact Material

Current Voltage

Current Rating

Temperature Range

Resistance to soldering

More technical Information on request

Nylon 6T

High temperature, UL94-V0

Black

Copper alloy

500 V ACfor 1 minute

1,5 A

- 40°C ... +105°C

235°C (30-60 sec.)

max. 260°C (5 sec.)

2,00

(N/2) x 2,0 -4,00 (10/ 12pol.)

(N/2) x 2,0 -8,00

(N/2) x 2,0 -4,00

Version 02

BESTELLBEISPIEL

HOW TO ORDER

BITTE ERSETZEN SIE `X` DURCH UNTEN AUFGEFÜHRTEN CODE

PLEASE REPLACE `X`WITH CODING LISTED BELOW

136 XX

00 = Ohne Positionierhilfe - Without locating peg

01 = Mit Positionierhilfe - With locating peg (Version 1)

02 = Mit Positionierhilfe - With locating peg (Version 2)

Veredelung - Plating

FL = Flash Vergoldet - Flash gold plated(Au) (Standard)

Andere Veredelungen auf Anfrage - Other plating on request

8 = 2,0 mm Raster - Pitch

9 = Sonderraster - Other pitch

XXX - XX

Polzahl - Number of contacts (004... 080) ( ohne Positionierhilfe - Without locating peg)

(008... 080) ( mit Positionierhilfe - With locating peg)

01 = Verpackt im Tube - Packing Tube (Standard)

02 = Verpackt auf Rolle - Reelpacking (auf Anfrage - On request)

Seite: 124

Version 1 / 2011

www.ratioplast.com

9,00

Nylon 6T

Hochtemperaturfest, UL94-V0

Schwarz

Kupfer

500 V AC für 1 Minute

1,5 A

- 40°C ... +105°C

235°C (30-60 sek.)

max. 260°C (5 sek.)

Version 00/ 01

2,20
