Datasheet> All Categories > Discrete semiconductor> diode> BYV40-150

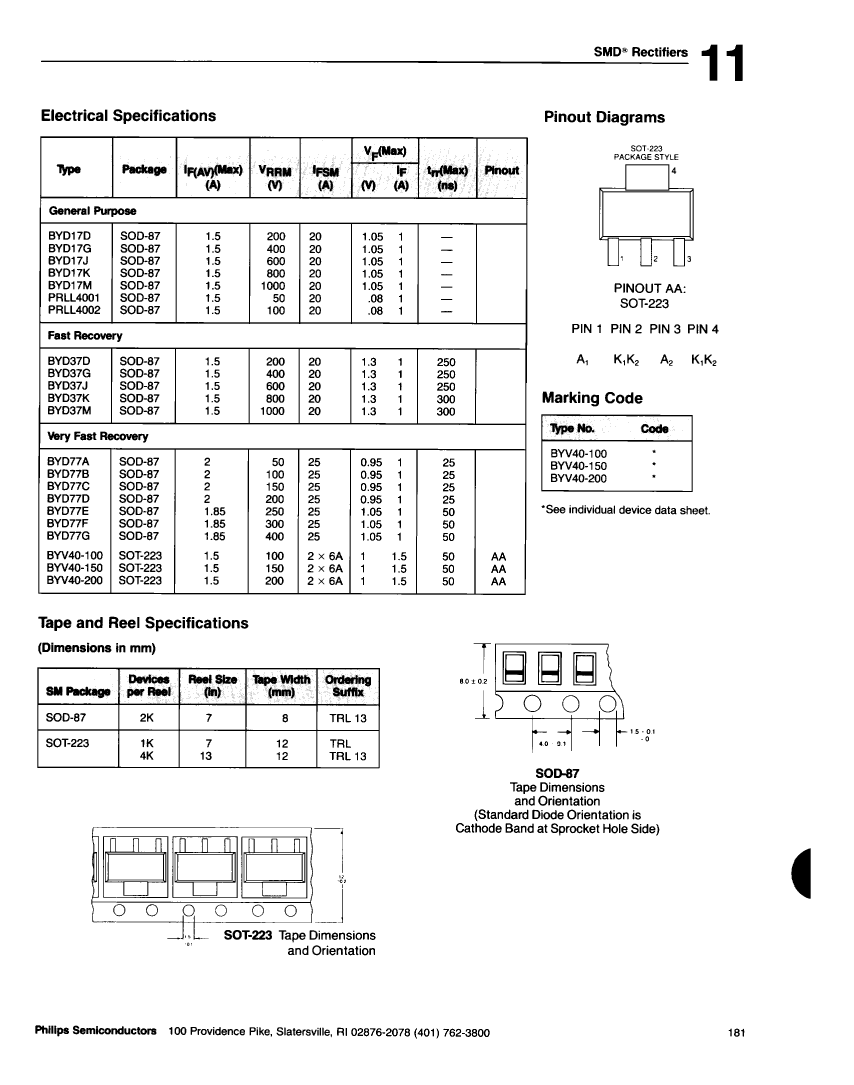

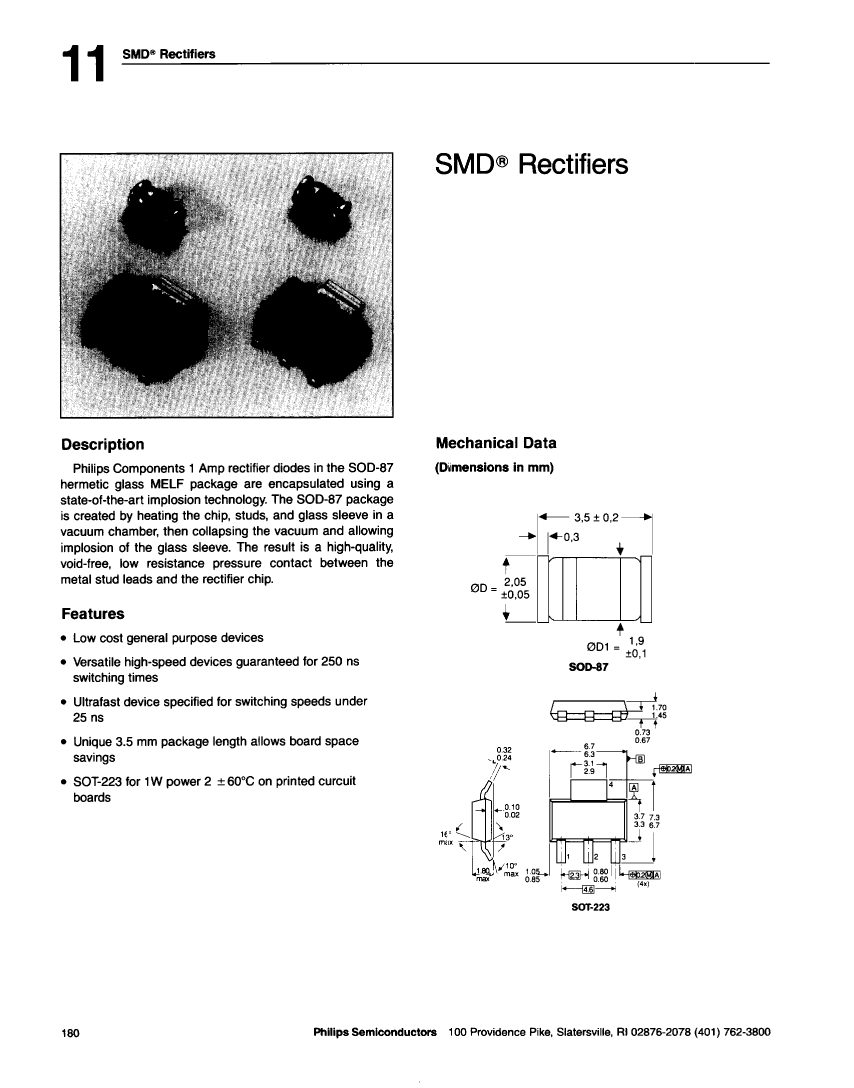

Preview

BYV40-150: DescriptionRectifier Diode, 1 Phase, 2 Element, 1.5A, 150V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size192KB，2 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

BYV40-150 Overview

Rectifier Diode, 1 Phase, 2 Element, 1.5A, 150V V(RRM), Silicon,

BYV40-150 Parametric

Parameter Name	Attribute value
package instruction	R-PDSO-G4
Reach Compliance Code	unknown
ECCN code	EAR99
application	VERY FAST RECOVERY
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	R-PDSO-G4
Maximum non-repetitive peak forward current	6 A
Number of components	2
Phase	1
Number of terminals	4
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	1 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	150 V
Maximum reverse recovery time	0.05 µs
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

BYV40-150 Related Products

	BYV40-150	BYV40-200TRL13	BYV40-100TRL	BYV40-150TRL13	BYV40-100	BYV40-100TRL13	BYV40-200	BYV40-200TRL	BYV40-150TRL
Description	Rectifier Diode, 1 Phase, 2 Element, 1.5A, 150V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 1.5A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 1.5A, 100V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 1.5A, 150V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 1.5A, 100V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 1.5A, 100V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 1.5A, 200V V(RRM), Silicon	Rectifier Diode, 1 Phase, 2 Element, 1.5A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 1.5A, 150V V(RRM), Silicon,
package instruction	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown	unknown	unknown	unknown	unknown
application	VERY FAST RECOVERY	VERY FAST RECOVERY	VERY FAST RECOVERY	VERY FAST RECOVERY	VERY FAST RECOVERY	VERY FAST RECOVERY	VERY FAST RECOVERY	VERY FAST RECOVERY	VERY FAST RECOVERY
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V	1 V	1 V	1 V	1 V	1 V
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
Maximum non-repetitive peak forward current	6 A	6 A	6 A	6 A	6 A	6 A	6 A	6 A	6 A
Number of components	2	2	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4	4
Maximum output current	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	1 W	1 W	1 W	1 W	1 W	1 W	1 W	1 W	1 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	150 V	200 V	100 V	150 V	100 V	100 V	200 V	200 V	150 V
Maximum reverse recovery time	0.05 µs	0.05 µs	0.05 µs	0.05 µs	0.05 µs	0.05 µs	0.05 µs	0.05 µs	0.05 µs
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1	1	1	1
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99
