87427-1672 Overview

Board Connector, 16 Contact(s), Female, Right Angle, Solder Terminal, Locking, Beige Insulator

87427-1672 Parametric

Parameter Name	Attribute value
body width	0.433 inch
subject depth	0.764 inch
Terminal length	0.13 inch
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	SN ON NI
insulator material	POLYAMIDE
Total number of contacts	16
Contact point gender	FEMALE
Contact resistance	10 mΩ
Durability	30 Cycles
Installation method	RIGHT ANGLE
Installation type	BOARD
Contact material	BRASS
Installation option 1	LOCKING
Contact completed and terminated	TIN OVER NICKEL
Contact style	SQ PIN-SKT
Insulator color	BEIGE
Mixed contacts	YES
Number of connectors	ONE
Termination type	SOLDER
Contact arrangement	S0P16
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
Guideline	UL
JESD-609 code	e3
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
ECCN code	EAR99
Objectid	7248469165
Reach Compliance Code	unknown
Samacsys Pin Count	16
Samacsys Manufacturer	Molex
Samacsys Modified On	2023-03-07 16:10:32
YTEOL	7.3
Samacsys Description	Mini-Fit Jr. Header, 4.20mm Pitch, Right-Angle, without Flange, 16 Circuits
Samacsys Status	Released
2D Presentation	https://componentsearchengine.com/2D/0/16461118.png
PCB Footprint	https://componentsearchengine.com/footprint.php?partID=16461118
3D View	https://componentsearchengine.com/viewer/3D.php?partID=16461118
Samacsys Thumbnail Image	https://componentsearchengine.com/2D/0/16461118.png
Samacsys Part Category	Connector
Samacsys Package Category	Other
Samacsys Confidence	2
Schematic Symbol	https://componentsearchengine.com/symbol.php?partID=16461118
Samacsys PartID	16461118
Samacsys Footprint Name	87427-16YY_347202
Samacsys Released Date	2022-06-28 12:06:15
Is Samacsys	N

Preview

Download Datasheet

View All

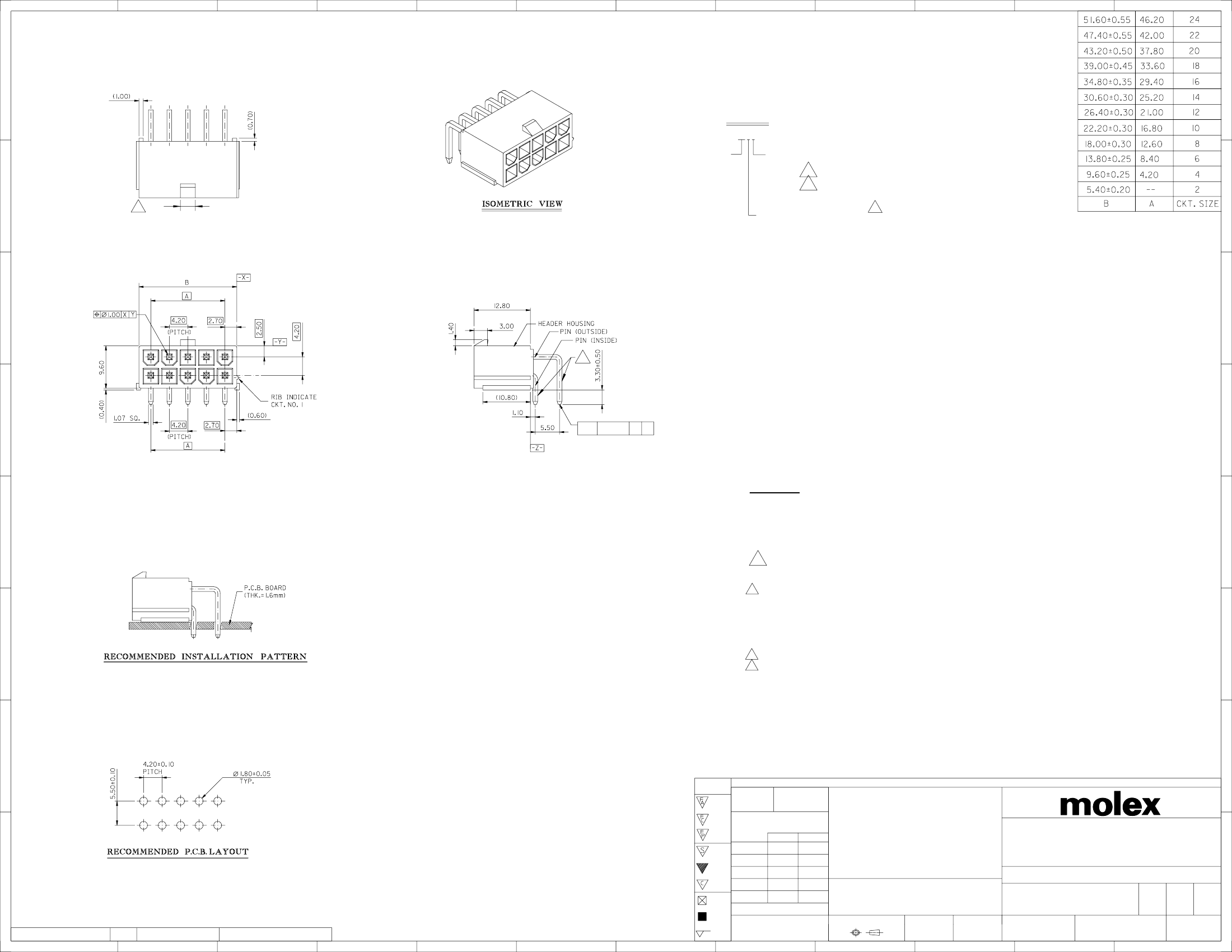

LEGEND

87427-****

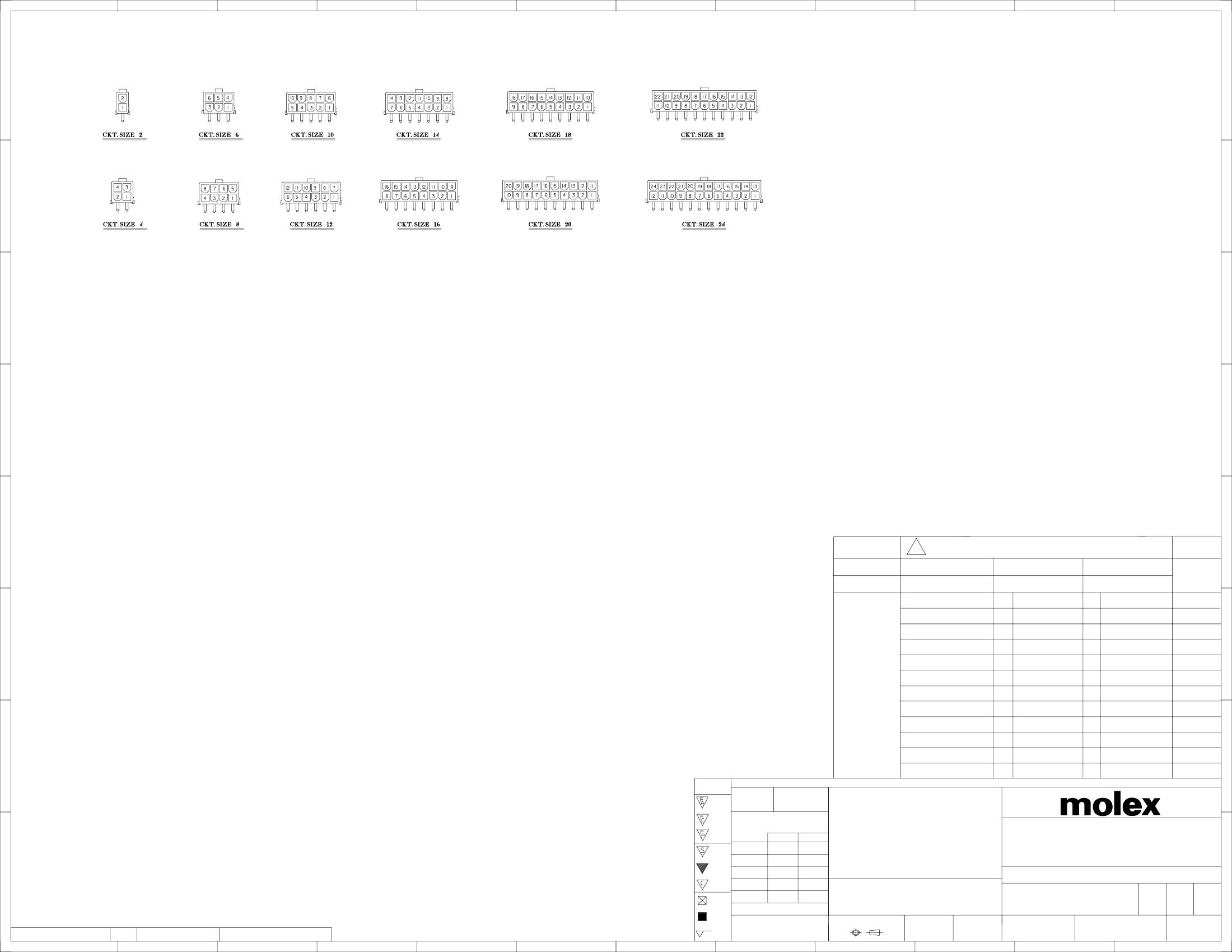

CKT. SIZE

(SEE SHEET 2).

PLATING OPTIONS

2 = NOTE 2.2

4 = NOTE 2.2

3.40

PACKAGING & COLOR OPTIONS

0 = TRAY PACKED - COLOR BEIGE

2 = TUBE PACKED - COLOR BEIGE

3 = TAPE & REEL PACKED - COLOR BEIGE

7 = TRAY PACKED - COLOR BLACK

⌖

⌀

0.85

NOTES

1. MATERIALS:

- HEADER: NYLON 46, UL94V-0, COLOR SEE LEGEND.

- PIN: BRASS

2. FINISH- PLATING OF PIN:

2.2 MATTE TIN .00254 MIN. OVER NICKEL .00127 MIN.

3. PRODUCT SPECIFICATION: PS-87427-0001.

4 PACKAGING SPECIFICATION:

TRAY PACK PER PK-87427-001.

TAPE & REEL PACK PER PK-87427-009.

5. MATES WITH: MINI-FIT JR. RECEPTACLE SERIES 5557.

6. THESE PARTS CONFORM TO CLASS "B" REQUIREMENTS OF

COSMETIC SPECIFICATION PS-45499-002.

7 THIS DIMENSION IS 4.2 ON 2 CKT PARTS.

8 FORMING MARKS ARE ACCEPTABLE

9. DISCOLORATION IN THE BANDOLIER CARRIER AREA OF THE PIN IS

INHERENT TO THE PLATING PROCESS AND IS DUE TO THE MASKING

EFFECT OF THE CARRIER. THIS DISCOLORATION IS IN A NON-FUNCTIONAL

AREA OF THE PIN AND WILL NOT AFFECT THE PERFORMANCE OF THE

HEADER ASSEMBLY.

10.PARTS ARE NOT DESIGNED FOR CURRENT SHARING.

11.CONNECTORS ARE NOT TO BE MATED AND UNMATED WHILE CIRCUITS ARE LIVE.

SYMBOLS

4 PLACES

3 PLACES

2 PLACES

1 PLACE

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

CURRENT REV DESC: OBSOLETE TUBE PACK

MM ONLY

2:1

INCH

GENERAL TOLERANCES

(UNLESS SPECIFIED)

EC NO:

167346

0.2

3.0 °

FORMAT: Eng-lega-master-tb-prod-C

REVISION: D

DATE: 2017/10/06

0 PLACES

ANGULAR TOL

DRWN:

AZAHIROVIC

CHK'D:

JBELL

APPR:

FSMITH

INITIAL REVISION:

DRWN:

STEVEN

APPR:

FSMITH

THIRD ANGLE PROJECTION

DRAWING

2018/02/09

2018/02/16

2018/02/20

1995/02/27

2010/04/09

SERIES

4.2MM W-T-B,

RIGHT ANGLE HEADER WITHOUT MOUNTING

FLANGES

PRODUCT CUSTOMER DRAWING

DOCUMENT NUMBER

DOC TYPE

DOC PART

REVISION

874270000-SD

MATERIAL NUMBER

CUSTOMER

PSD

000

DOCUMENT STATUS

RELEASE DATE

2018/02/20

16:09:59

THIS DRAWING REPLACES DRAWING SD-87427-**0*

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

SHEET NUMBER

C-SIZE

87427

SEE CHART

GENERAL MARKET

1 OF 2
