39S102-102L5

Description
RF SMC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Locking, Plug, ROHS COMPLIANT
CategoryThe connector    The connector
File Size55KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Download Datasheet Parametric View All

39S102-102L5 Overview

RF SMC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Locking, Plug, ROHS COMPLIANT

39S102-102L5 Parametric

Parameter NameAttribute value
MakerRosenberger
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresAPPLICABLE CABLES: RG 316/U; RG 174 A/U; RG 188 A/U
subject depth0.256 inch
Body/casing typePLUG
Cable typeRG-316/U
Characteristic impedance50 Ω
Connector typeRF SMC CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderMALE
Contact resistance5 mΩ
Contact styleCOAX
Coupling typeTHREADED
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
Insertion loss0.24 dB
Insulation resistance1000000000 Ω
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number39S102-102L5
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeCABLE
Number of ports1
Maximum operating frequency6 GHz
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Panel mountingNO
reliabilityCOMMERCIAL
Shell surfaceGOLD
Shell materialBRASS
Terminal length0.275 inch
Termination typeCRIMP
Total number of contacts1
voltage standing wave ratio1.29
Base Number Matches1

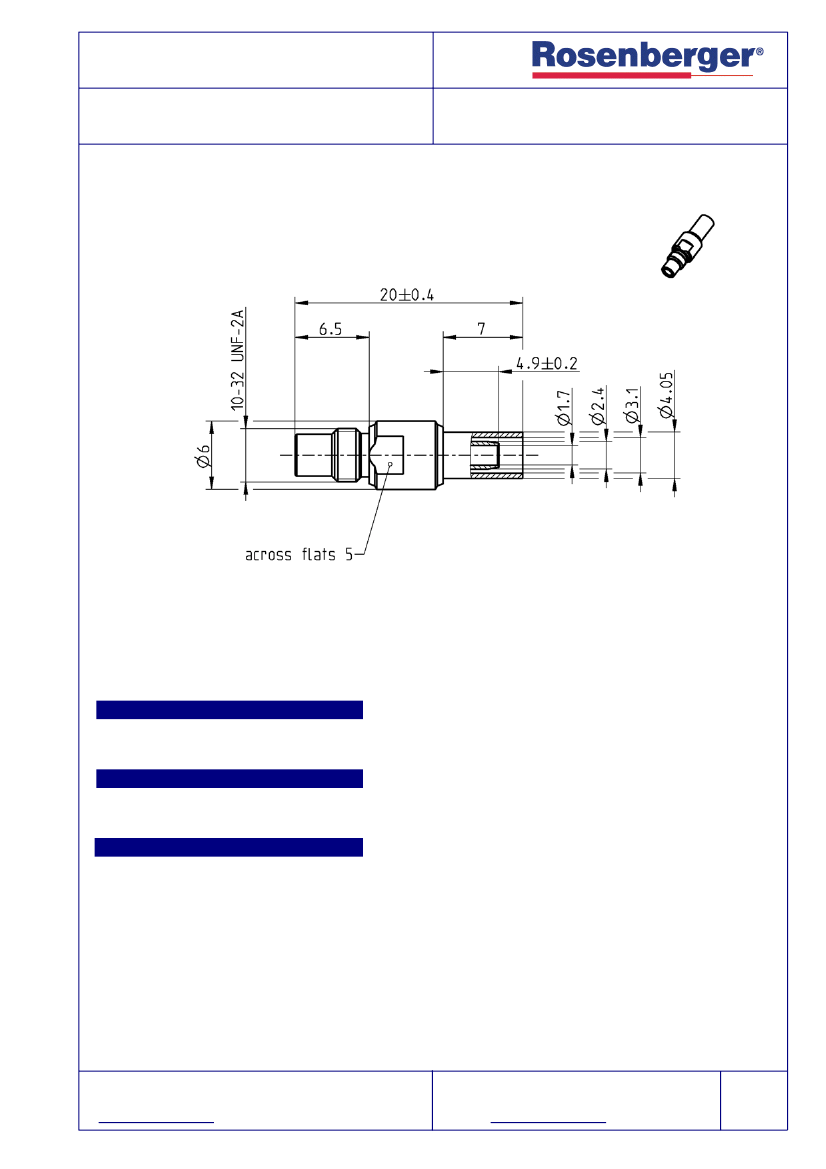

TECHNICAL DATA SHEET
SMC
STRAIGHT PLUG
39S102-102L5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-9, CECC 22140, US MIL-C-39012
Documents
Assembly instruction
59 G2
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Crimping ferrule
Material
Brass
Brass
Brass
PTFE
Copper
Plating
AuroDur®, gold plated
AuroDur®, gold plated
Gold, 0.1 µm
Gold, 0.1 µm
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
