STANDARD CIRCULAR CONNECTORS
TE CONNECTIVITY (TE)
RECP ASSY
DEUTSCH
|
38999 Series III

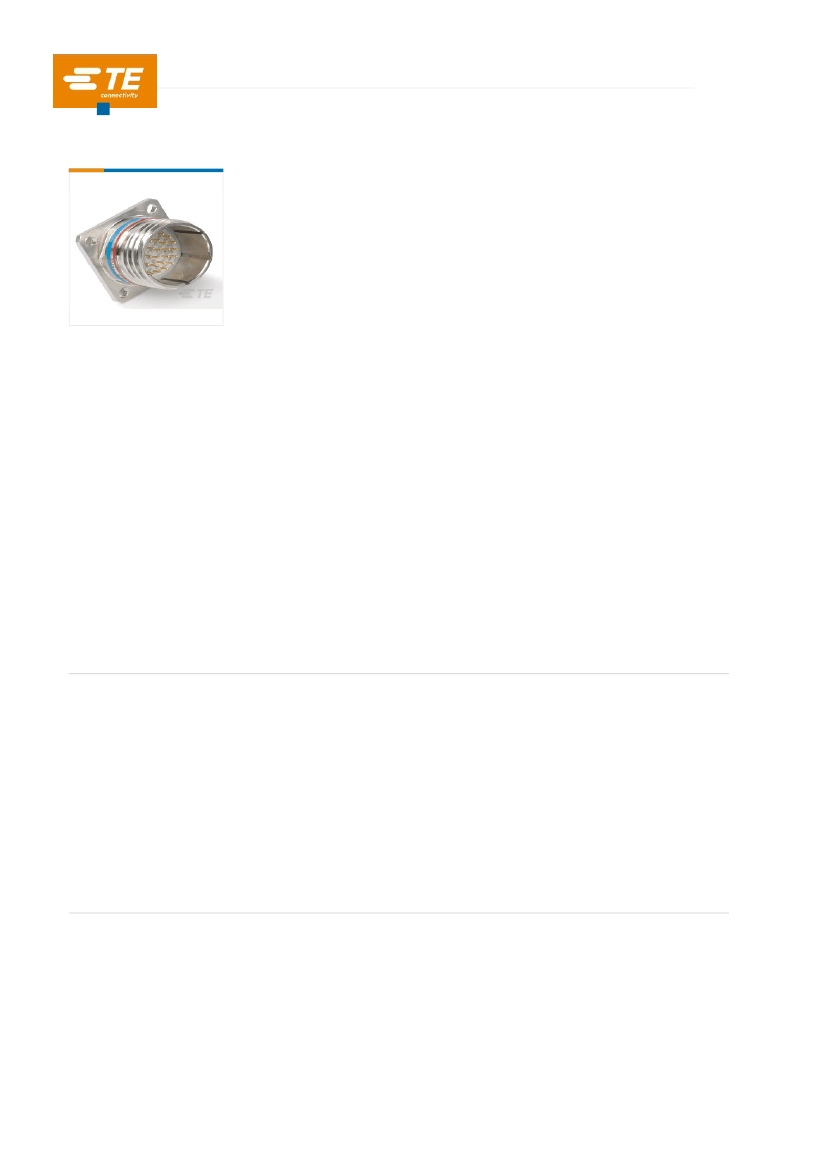

YDTS20W25-19SNV001
TE Internal Number: YDTS20W25-19SNV001
Alias ID: D38999/20W J19SN, DTS20W 25- 19SN [V001]
Not EU RoHS or ELV Compliant
Find Compliant Alternatives
Product Type
Connector
Active
Mounting Style
Square Flange
Shell Plating Material
Cadmium, O.D.
Shell Material
Aluminum
Polarization Code
N
Product Environmental Compliance
REACH Substance Communication Document
RSCD_Cadmium
PDF
English
Please review product documents or
contact us
for the latest agency approval information.
Product Type Features
Product Type
Connector System
Shell Size
Sealed
Connector Style
Shell Type
Assembly Type
Connector
Wire-to-Panel
J (25)
Yes
Receptacle
Square Flange Receptacle
Electrical Connector
Configuration Features
Number of Power Positions
Preloaded
Number of Positions
Factory Installed Backshell
Positions Unloaded
Keying
Position Keyed
19
No
19
No
All
Keyway Polarization N
N
Electrical Characteristics
Operating Voltage (VAC)
Operating Voltage (VDC)
Voltage (Vrms)
600
850
1800
Body Features
Shell Plating Material
Shell Material
Insulation Material
Hermetically Sealed
Fluid Type
Cadmium, O.D.
Aluminum
Hard Dielectric/Silicone
No
Coolanol 25, M2-V, MIL-DTL-5624 (JP-4,JP-
5), MIL-DTL-83133 (JP-8), MIL-PRF-23699,
MIL-PRF-5606, MIL-PRF-7808, SEA-AMS1424
Type I
Elastomer Sealed
Yes
No
Silicone
Rear Insertion
Environmental Protection Type
Environmental Protection
Feedthrough Type
Peripheral Seal Material
Entry Style
Contact Features
Contact Layout
Contact Type
Contact Quantity (Size 12)
J19 (25-19)
Socket
19
Mechanical Attachment
Mounting Style
Polarization Code
Mating Alignment Type
Mating Retention
Flange
Mating Retention Type
Panel Mount Retention
Panel Mount Retention Type
Square Flange
N
Keyed
With
Square Flange
Triple Start Threaded
With
Square Flange
Housing Features
Alignment Keyed
Clocking
Dimensions
Accepts Wire Insulation Diameter Range
Assembly Length
2.46 – 3.41 mm [ .097 – .142 in ]
31.5 mm [ 1.24 in ]
Usage Conditions
Operating Temperature Range
-85 – 347 °C [ -65 – 175 °F ]
Fluid Resistance
Yes
Operation/Application
Durability Rating (Cycles)
500
Packaging Features
Packaging Quantity
1
Product Compliance
Statement of Compliance
PDF
VIEW ALL PRODUCT COMPLIANCE
