PIN RECEPTACLES
for .015” - .022” diameter pins
M
ON
S
I
CHI
A
PINS
NE
D
0512
2218
0703
0574

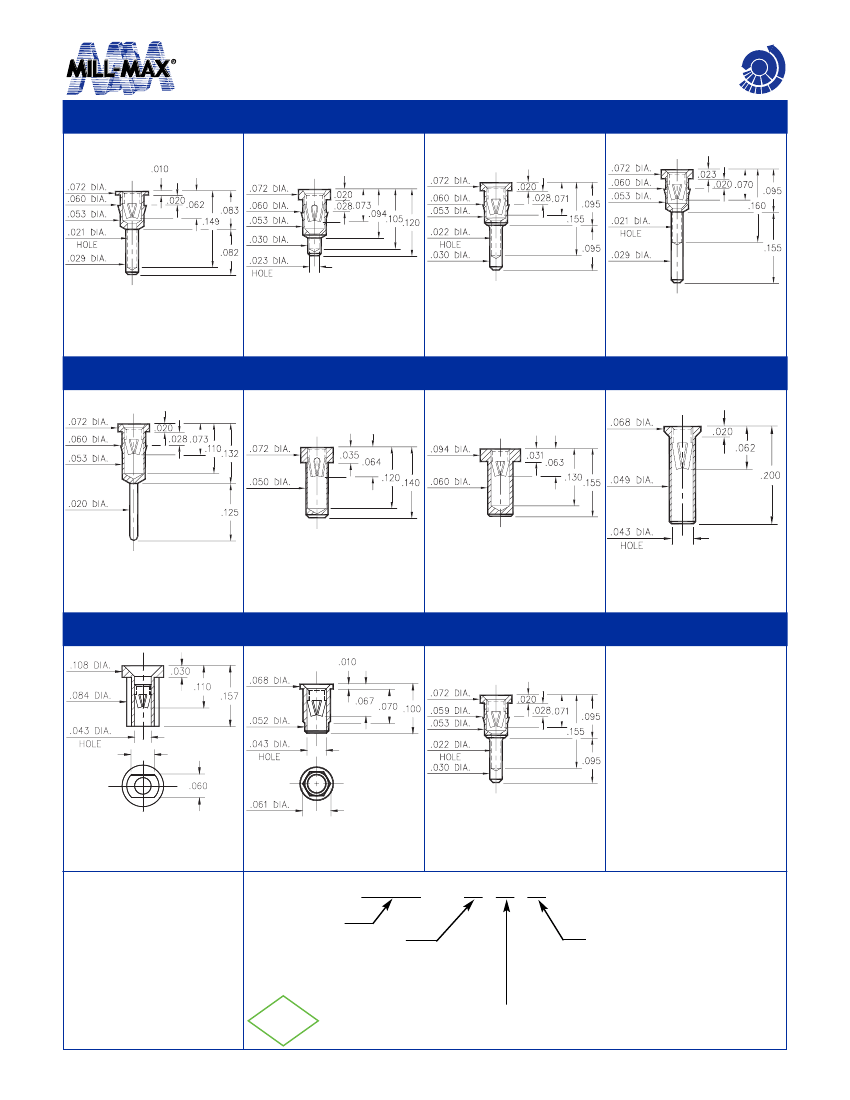

0512-0-15-XX-12-XX-04-0
Press-fit in .057 mounting hole
2218-0-15-XX-22-XX-10-0
Press-fit in .057 mounting hole
0703-0-15-XX-12-XX-04-0
Press-fit in .057 mounting hole
0574-0-15-XX-12-XX-04-0
Press-fit in .057 mounting hole
0468
0550
0671
0707
0468-0-15-XX-12-XX-04-0
Press-fit in .057 mounting hole
0550-0-15-XX-22-XX-10-0
Solder mount in .052 min.
mounting hole
0671-0-15-XX-12-XX-10-0
Solder mount in .063 min.
mounting hole
0707-0-15-XX-12-XX-10-0
Solder mount in .051 min.
mounting hole
5739
8894
1534
.059
5739-0-18-XX-12-XX-10-0
Surface mount
Also available on 16mm wide carrier
tape: 3,000 parts per 13” reel.
Order as: 5739-0-57-XX-12-XX-10-0
8894-0-15-XX-12-XX-10-0
Hex press-fit in .059 plated
thru hole
1534-0-15-XX-12-XX-04-0
Press-fit in .056 mounting hole
SPECIFICATIONS
SHELL MATERIAL:
Brass Alloy 360, 1/2 Hard
CONTACT MATERIAL:
Beryllium Copper Alloy 172, HT
DIMENSION IN INCHES
TOLERANCES ON:
LENGTHS:
±.005
DIAMETERS: ±.002
ANGLES:
± 2°
ORDER CODE: XXXX - X - 1X - XX - XX - XX - XX - 0
BASIC PART #
SPECIFY SHELL FINISH:
01
200μ” TIN/LEAD OVER NICKEL
80
200μ” TIN OVER NICKEL
15
10μ” GOLD OVER NICKEL
SPECIFY CONTACT FINISH:
02
100μ” TIN/LEAD OVER NICKEL
84
100μ” TIN OVER NICKEL
27
30μ” GOLD OVER NICKEL
SELECT CONTACT
#12 or #22
CONTACT (DATA ON PAGE 207)
w w w. m i l l - m a x . c o m
130
516-922-6000
