4-106510-1: Description175 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, PLUG; CategoryThe connector The connector; File Size107KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

4-106510-1 Overview

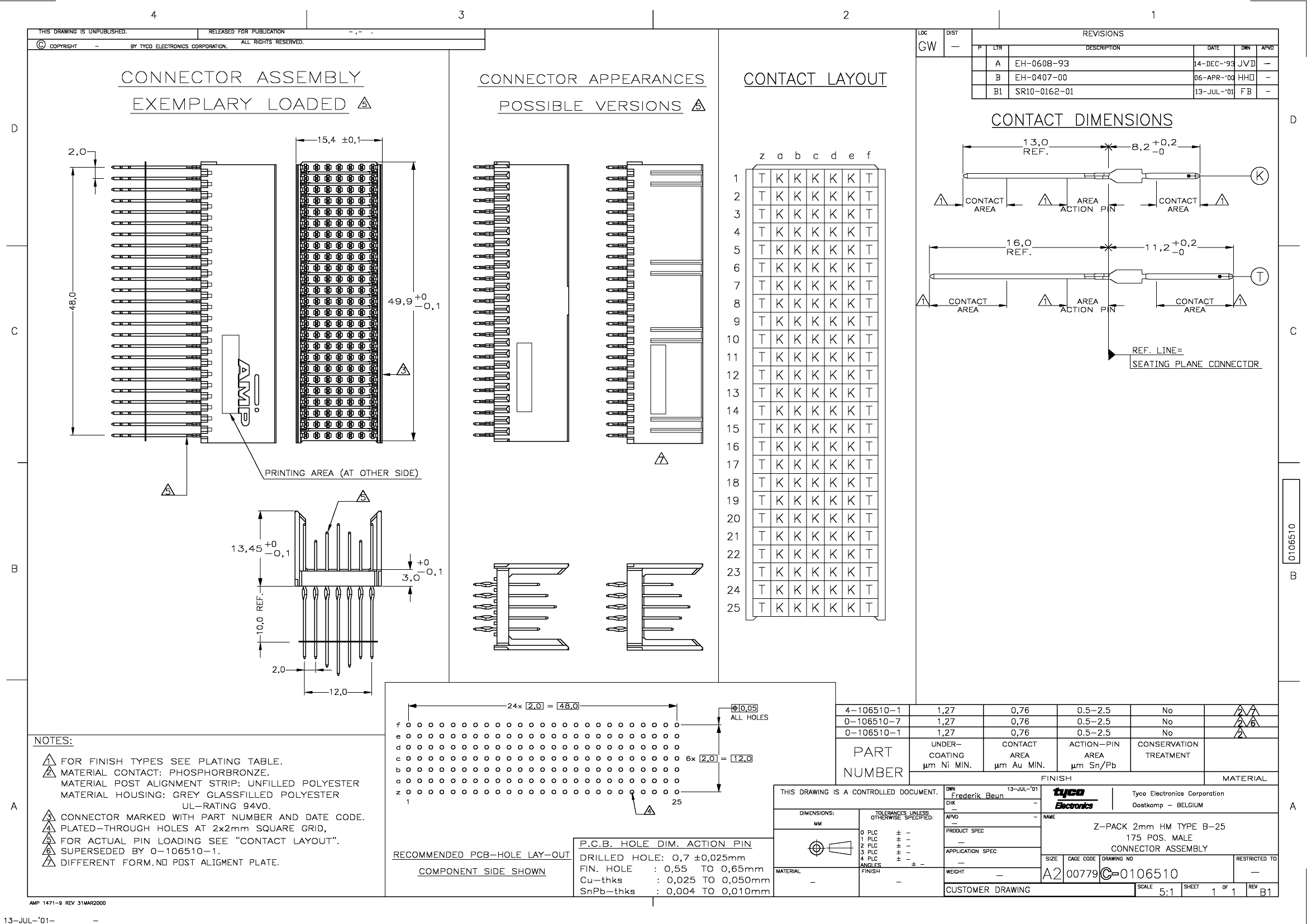

175 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, PLUG

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	not_compliant
Other features	Z-PACK
body width	0.606 inch
subject depth	0.53 inch
body length	1.965 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	7
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	175
UL Flammability Code	94V-0
Base Number Matches	1

	4-106510-1	ABLS2-09.0000MHZ-S-R	ABLS2-5.999MHZ-10-N4Y-T
Description	175 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, PLUG	Series - Fundamental Quartz Crystal, 9MHz Nom, ROHS COMPLIANT, HC/49US, 2 PIN	Parallel - Fundamental Quartz Crystal, 5.999MHz Nom, HC/49US, 2 PIN
Is it Rohs certified?	incompatible	conform to	conform to
Reach Compliance Code	not_compliant	compliant	compliant
Other features	Z-PACK	AT CUT; BULK	AT-CUT; TR, 13 INCH
Objectid	-	1334538519	7171009624
package instruction	-	ROHS COMPLIANT, HC/49US, 2 PIN	HC/49US, 2 PIN
Country Of Origin	-	Mainland China	Mainland China
YTEOL	-	6.75	6.75
Ageing	-	5 PPM/FIRST YEAR	5 PPM/FIRST YEAR
Crystal/Resonator Type	-	SERIES - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	-	100 µW	100 µW
frequency stability	-	0.015%	0.003%
frequency tolerance	-	50 ppm	30 ppm
JESD-609 code	-	e3	e3
Installation features	-	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	-	9 MHz	5.999 MHz
Maximum operating temperature	-	70 °C	85 °C
physical size	-	L11.4XB4.7XH3.3 (mm)/L0.449XB0.185XH0.13 (inch)	L11.4XB4.7XH3.3 (mm)/L0.449XB0.185XH0.13 (inch)
Series resistance	-	60 Ω	120 Ω
surface mount	-	YES	YES
Terminal surface	-	Matte Tin (Sn)	Matte Tin (Sn)
