FEATURES / BENEFITS
586 SERIES LED
Track Position
p
Features Hi-Flux LEDs to simulate point light source for
enhanced optical performance
l
Faster on/off response time than incandescent
lamps improves safety
l
Flicker resistance & reduced current draw
l
5+ year life reduces maintenance costs
l
Redundant LED circuits (single LED failure
does not turn off lamp)
p
Prevents sun phantom effects by eliminating use of
colored inner filter lenses
p
Designed to fit Safetran, US&S, GRS housings
p
Uses existing signal head outer lens
p
Certified for Rail environment
APPLICATION
p
The 586 Series LED Track Position Lamp Modules were developed by Dialight specifically for retrofit applications where
replacement of existing incandescent light bulbs is desired. This installation approach provides all the benefits of LEDs without the
complex retrofit of the entire lens and housing assemblies. Installation is nearly as simple as replacement of the incandescent bulb.
Dialight lamp modules have been fully qualified for the Rail environment and incorporate power factor correction and total harmonic
distortion reduction circuitry.

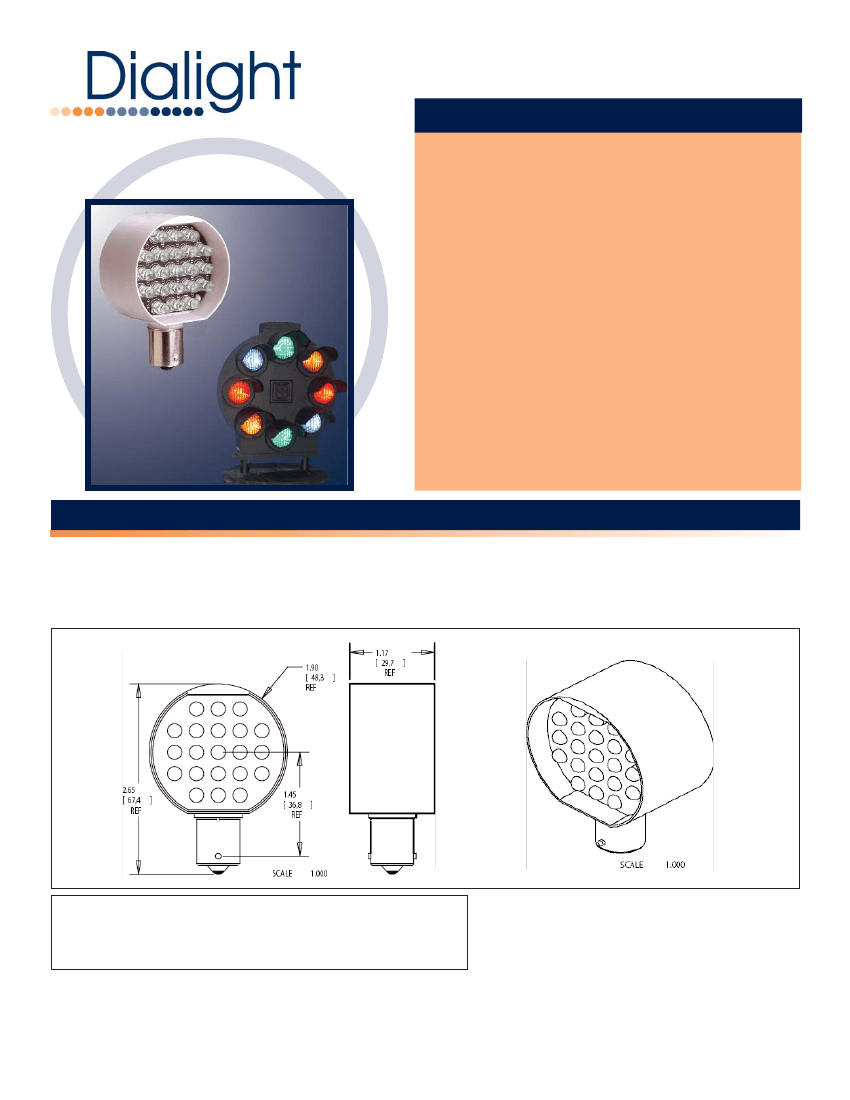

MECHANICAL DRAWING
FRONT
SIDE VIEW
p
Dialight is the recognized leader in LED applications for Transportation
Signaling, and has worked cooperatively with leading Transit Rail customers to
develop this unique solution to Wayside Signal applications for LEDs. It is proven
to be a preferred product over traditional 5mm LED distributed array solutions.
www.dialight.com
586 Series LED
TRACK POSITION
ELECTRICAL CHARACTERISTICS @ 25
o
C
Part Number
586-5611-202F
586-5617-202F
586-5613-202F
586-5615-202F
586-5616-202F
Description
Red, Single Sided
Green, Single Sided
Yellow, Single Sided
Blue, Single Sided
Lunar, Single Sided
WATTS
2
1.5
2
1.5
1.5
Operating Voltage
12V AC/DC
12V AC/DC
12V AC/DC
12V AC/DC
12V AC/DC
OPTICAL PERFORMANCE @ 25
o
C
Typical Initial Light Output
Part Number
Description
On-axis*
Intensity (cd)
4
3.4
4
3
5.6
Peak
Wavelength
639
505
594
465
*
586-5611-202F
586-5617-202F
586-5613-202F
586-5615-202F
586-5616-202F
Red, Single Sided
Green, Single Sided
Yellow, Single Sided
Blue, Single Sided
Lunar, Single Sided
* Typical Color Coordinates X = .291, Y = .305
Dialight reserves the right to make changes at any time in order to supply the best product possible. The most current version of this document will
always be available at: http://www.dialight.com/Assets/Brochures_And_Catalogs/Signaling/MDTR586TP001.pdf
www.dialight.com
MDTR586TP001_A
