25-0101-302-2G datasheet, PDF - EEWORLD Datasheet

25-0101-302-2G: DescriptionBoard Connector, 6 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size38KB，1 Pages; ManufacturerAstron; Websitehttp://www.astron.com.tw

Download Datasheet Parametric View All

25-0101-302-2G Overview

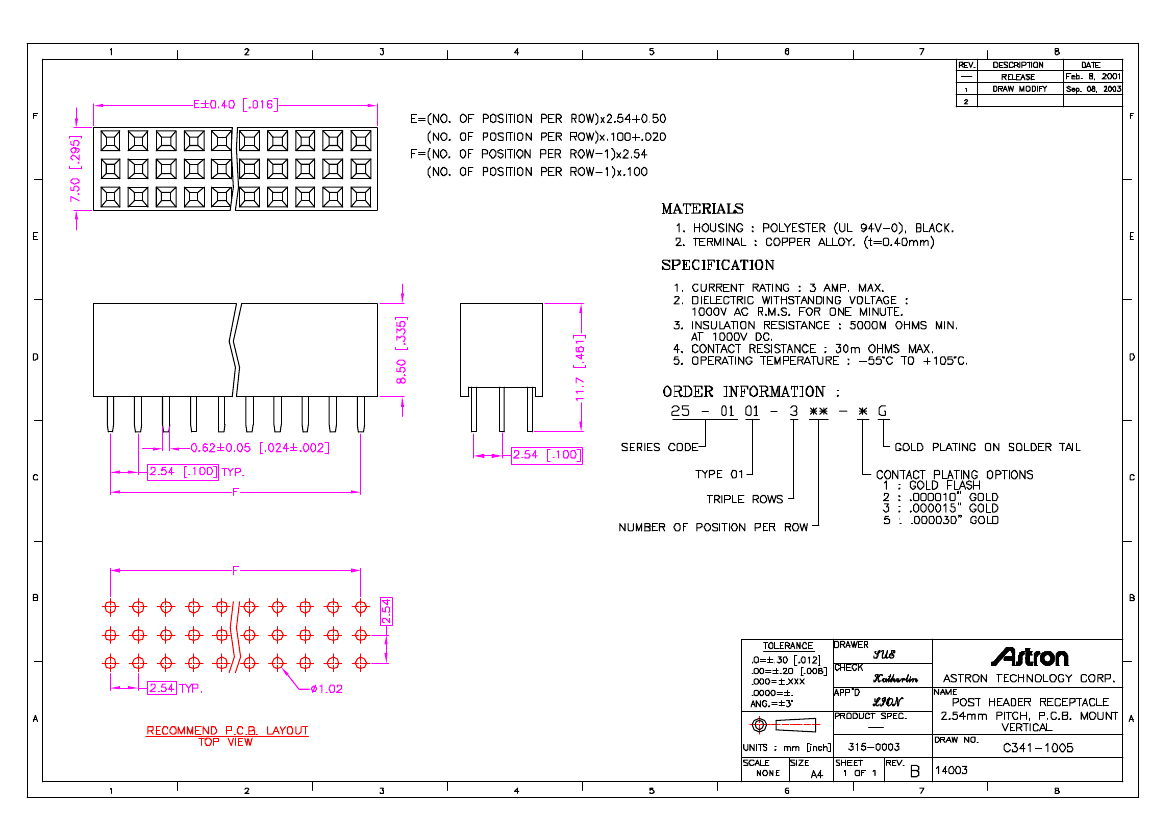

Board Connector, 6 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug

Parameter Name	Attribute value
Dielectric withstand voltage	1000VAC V
Filter function	NO
Insulation resistance	5000000000 Ω
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Guideline	UL
Objectid	303918659
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
body width	0.295 inch
subject depth	0.335 inch
body length	0.2 inch
Terminal length	0.126 inch
Contact point gender	FEMALE
Contact resistance	30 mΩ
Number of rows loaded	3
Rated current (signal)	3 A
Terminal pitch	2.54 mm
Body/casing type	PLUG
Contact to complete cooperation	AU
insulator material	POLYESTER
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	3
Total number of contacts	6
Connector type	BOARD CONNECTOR
Contact style	SQ PIN-SKT
Insulator color	BLACK
Plug contact pitch	0.1 inch
Number of connectors	ONE
Plating thickness	10u inch
Contact completed and terminated	GOLD
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Termination type	SOLDER
PCB contact row spacing	2.54 mm
Match contact row spacing	0.1 inch
Mixed contacts	NO
PCB contact pattern	RECTANGULAR
