BPU24-12S4.2A

Description
DC-DC Regulated Power Supply Module, 1 Output, 50W, Hybrid, ROHS COMPLIANT, METAL, PACKAGE-6
CategoryPower/power management    The power supply circuit
File Size840KB,2 Pages
ManufacturerAsia Electronics Ind Co., Ltd.
Environmental Compliance
Download Datasheet Parametric View All

BPU24-12S4.2A Overview

DC-DC Regulated Power Supply Module, 1 Output, 50W, Hybrid, ROHS COMPLIANT, METAL, PACKAGE-6

BPU24-12S4.2A Parametric

Parameter NameAttribute value
JESD-30 codeR-MDMA-P6
length75 mm
Maximum seat height9 mm
width50 mm
encapsulated codeDMA
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Terminal formPIN/PEG
Terminal locationDUAL
Number of terminals6
Package body materialMETAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum operating temperature40 °C
Minimum operating temperature-40 °C
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Is it Rohs certified?Yes
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Objectid8145351581
package instruction,
technologyHYBRID
Temperature levelOTHER
Maximum total power output50 W
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE
Maximum load regulation0.5%
Number of functions1
Maximum input voltage36 V
Output times1
Maximum output voltage12.6 V
Minimum output voltage11.4 V
Minimum input voltage16 V
Nominal input voltage24 V
Nominal output voltage12 V
surface mountNO
Fine-tuning/adjustable outputYES
BPU SERIES
20∼50W DC/DC CONVERTERS
Single Output & Dual Outputs

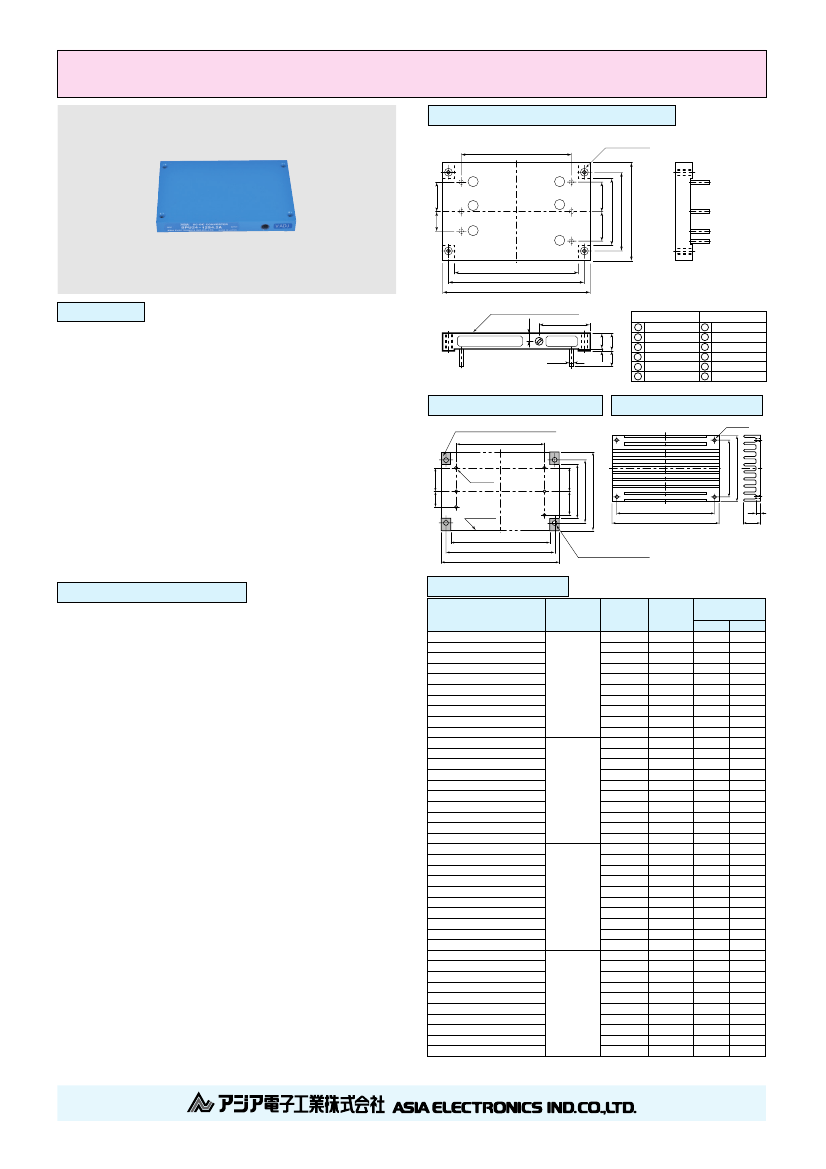

■ Pin Outs & Dimensions
<Top View>
55.88
±0.3
(±0.5mm)
4-M3 Through
10.16
±0.3
15.24
±0.3
15.24
±0.3
15.24
±0.3
1
2
3
4
5
34
40
±0.3
6
63
H8.5×W50×L75 (mm)
69
±0.3
75
50
10.16 15.24
6-φ1.6
15.24
15.24
34
40
50
40
±0.3
46.5
69
±0.3
75
3
12
Low Profile 8.5mm
6 Sided Metal Shielding
Internal Input Filtering
Wide Input Voltage Range
Input-Output Isolation
Adjustable Output Volt. ±5%
High Efficiency 81∼90%
Remote ON/OFF Control
Input Low Voltage Protection
Input Over Voltage Protection
Output Over Voltage Protection
115∼140% Operation
Thermal Protection
+110℃∼+120℃
Operating Ambient Temperature
−40℃∼+85℃
Max. Case Temperature +105℃
High Reliability
Conforming to RoHS Directive
Not built-in aluminum and
tantalum electrolytic capacitor
薄型 8.5mm
6面メタルシールド
入力フィルタ内蔵
広範囲な入力電圧
入出力間絶縁
可変出力電圧 ±5%
高効率 81∼90%
リモ½トON/OFF½ントロ½ル
入力½電圧保護回路内蔵
入力過電圧保護回路内蔵
出力過電圧保護回路内蔵
115∼140% 動½
過熱保護回路内蔵
+110℃∼+120℃
動½周囲温度
−40℃∼+85℃
最大ケース温度 +105℃
高信頼性
RoHS指令対応
アルミ電解コンデンサ及び
タンタルコンデンサ不½用
0.5
φ1.2
■ Holes on PCB
(Top View)
4−No Printed Circuit Areas
55.88
(8)
8.5
Name Plate
4.7
■ Features
Thermal Radiation Plate
16.7
Pin Outs
Single Output
1
+Vdc in
2
0 Vdc in
3
ON/OFF Control
4
+Vdc out
0 Vdc out
5
6
No Connection
Dual Outputs
+Vdc in
1
2
0 Vdc in
3
ON/OFF Control
4
+Vdc out
5
Common
6
−Vdc out
V. ADJ
8
■ Option Heat Sink
4-φ3.3
Out Line
63
69
75
*Option Heat Sink Model : A4-3079
Option Holes
(4-φ3.5)
■ General Characteristics
■ Selection Guide
Model Number
B P U 1 2 −3.3 S 12 A
B P U 1 2 − 5 S 10 A
B P U 1 2 − 6 S 8.4 A
B P U 1 2 −1 2 S 4.2 A
B P U 1 2 −1 5 S 3.3 A
B P U 1 2 −2 4 S 2.1 A
B P U 1 2 −3.3 D 3 A
BPU12− 5D 3A
B P U 1 2 −1 2 D 1.5 A
B P U 1 2 −1 5 D 1.2 A
B P U 2 4 −3.3 S 12 A
B P U 2 4 − 5 S 10 A
B P U 2 4 − 6 S 8.4 A
B P U 2 4 −1 2 S 4.2 A
B P U 2 4 −1 5 S 3.3 A
B P U 2 4 −2 4 S 2.1 A
B P U 2 4 −3.3 D 3 A
BPU24− 5D 3A
B P U 2 4 −1 2 D 1.5 A
B P U 2 4 −1 5 D 1.2 A
B P U 4 8 −3.3 S 12 A
B P U 4 8 − 5 S 10 A
B P U 4 8 − 6 S 8.4 A
B P U 4 8 −1 2 S 4.2 A
B P U 4 8 −1 5 S 3.3 A
B P U 4 8 −2 4 S 2.1 A
B P U 4 8 −3.3 D 3 A
BPU48− 5D 3A
B P U 4 8 −1 2 D 1.5 A
B P U 4 8 −1 5 D 1.2 A
B P U 100−3.3 S 12 A
B P U 100− 5 S 10 A
B P U 100− 6 S 8.4 A
B P U 100−1 2 S 4.2 A
B P U 100−1 5 S 3.3 A
B P U 100−2 4 S 2.1 A
B P U 100−3.3 D 3 A
B P U 100− 5 D 3 A
B P U 100−1 2 D 1.5 A
B P U 100−1 5 D 1.2 A
Input Volt.
(Range)
(V. DC)
Output
Voltage
(V. DC)
3.3
5
6
12
15
24
± 3.3
± 5
±12
±15
3.3
5
6
12
15
24
± 3.3
± 5
±12
±15
3.3
5
6
12
15
24
± 3.3
± 5
±12
±15
3.3
5
6
12
15
24
± 3.3
± 5
±12
±15
Output
Current
(A)
12
10
8.4
4.2
3.3
2.1
±3
±3
±1.5
±1.2
12
10
8.4
4.2
3.3
2.1
±3
±3
±1.5
±1.2
12
10
8.4
4.2
3.3
2.1
±3
±3
±1.5
±1.2
12
10
8.4
4.2
3.3
2.1
±3
±3
±1.5
±1.2
87
86
87
84
83
83
80
80
81
81
84
85
87
84
85
84
80
80
81
82
85
85
85
85
85
85
80
80
81
82
84
86
84
85
85
85
80
80
81
82
Table 1
Efficiency
(Typical)(%)
30% Load 80% Load
Input Voltage,Range
Output Voltage,Current
Output Voltage,Range
Efficiency
Line Regulation
Load Regulation
Reflected Input Ripple,Noise
Output Ripple
Output Noise
Short Circuit Protection
Over Voltage Protection
Remote ON/OFF Control
Temperature Coefficient
Operating Ambient Temp.
Max. Plate Temperature
Storage Temperature
Isolation Voltage
Isolation Impedance
Weight
Humidity
Shock
Vibration
Surface Structure
Soldering Conditions
(at Ta:25℃, Full Load, Nominal Vin)
DC12, 24, 48, 100V (See Table 1)
See Table 1
See Table 1, ±5% Adjustable
See Table 1
±0.3% max. (at Vin Range)
Single : ±0.5% max. (0∼100% Load)
Dual : ±3% max. (10∼100% Load)
(3% Vin)Vp-p max.
40mVp-p max.
100mVp-p max.

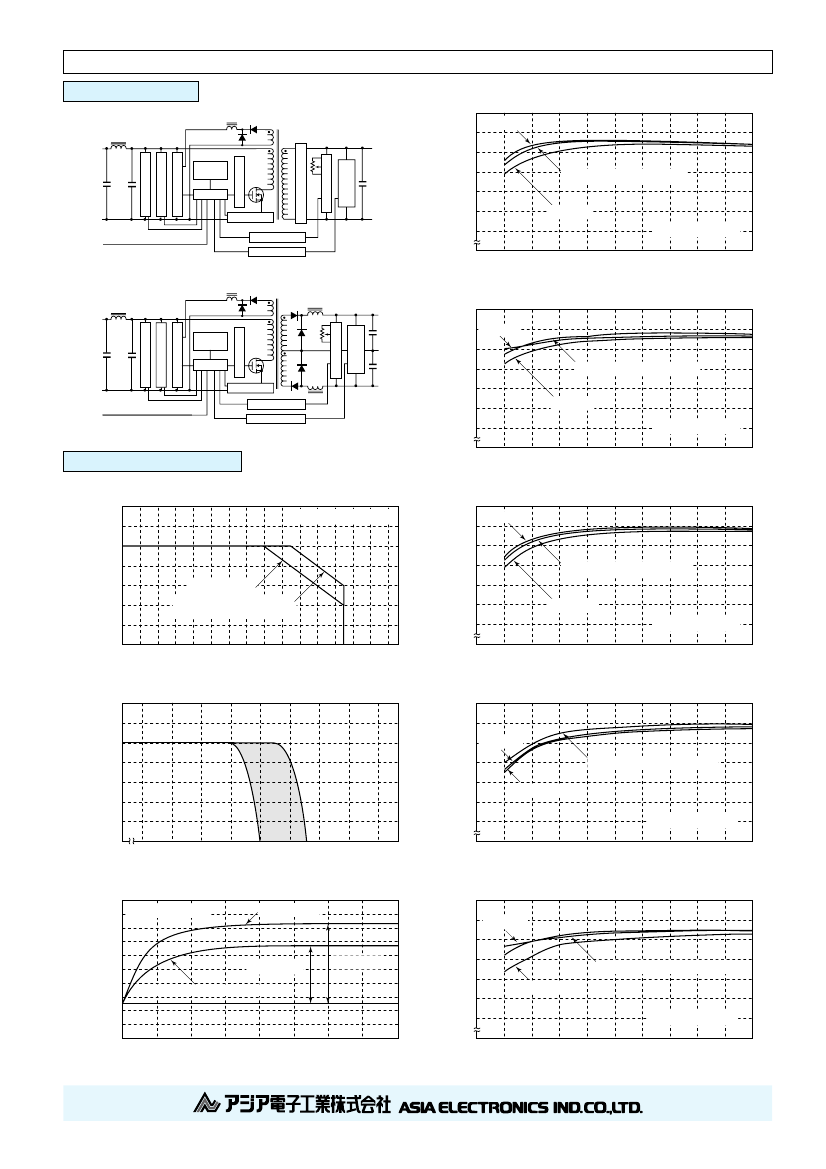

Built-in, Auto-restart (See Fig 2)
115∼140% Output Voltage
ON : Short or 0∼0.8V
OFF : Open or 2∼10V
(Between pin ② ∼ ③ )
0.02%/℃ max.
−40℃∼+85℃ (See Fig 1)
+105℃
−40℃∼+115℃
AC1500V 1 min. (DC12V,24V,48V Input)
AC2000V 1 min. (DC100V Input)
(Input−Output−Case)
100MΩ min. (at DC1000V)
(Input−Output−Case)
Main Body : 100g max.
Heat Sink : 55g max.
20∼95% RH
490m/s
2
(11msec 3directions)
10∼55Hz 98m/s
2
(30minutes 3directions)
6 Sided Aluminium Case
260℃, for 15 seconds max.
360℃, for 5 seconds max.
Single : 500,000H
Dual : 600,000H
(Ta:25℃, 80%Load, Nominal Vin)
5 years
12
(8∼18)
24
(16∼36)
48
(32∼72)
Soldering DIP
Soldering iron
MTBF
100
(64∼144)
85
89
87
88
88
88
81
82
83
84
85
88
89
89
89
89
81
82
84
85
86
88
88
88
90
90
81
82
84
85
87
89
89
90
90
90
81
82
84
85
Warranty
※ 上記仕様以外にも対応可½ですので お問い合わせ下さい。
  Please consult with us about other specification.
