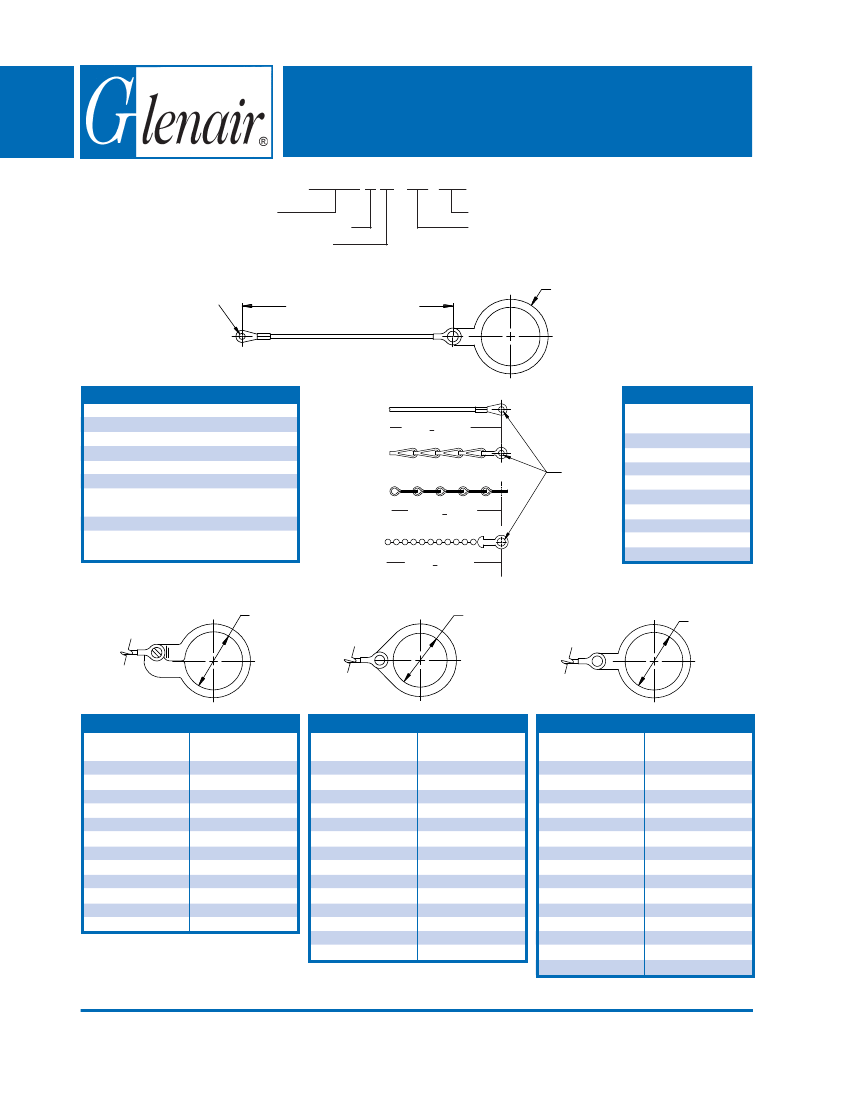

670-001
Protective Cover Attachments
67
Basic Part No.
Attachment Type (Table III)
Ring or Eyelet Dash No.
(Tables IV, V, VI, VII)
K Eyelet Dia.
TABLE III: ATTACHMENT
Sym
D
F
G
H
R
S
T
U
Attachment Type
Bead Chain, Cres., Passivate
Wire Rope, Nylon Jacket
Nylon Rope
Wire Rope, Teflon Jacket
Wire Rope, PVC Jacket
#8 Sash Chain, Cres.,
Passivate
Wire Rope, No Jacket
Wire Rope, Polyurethane
Jacket with Terminal
ROPE
(Types F, G,
H, R, T, U)
SASH CHAIN
(Type S)
BEAD CHAIN
(Type D)
670-001 R 01 -104 -4.25
Attachment Length (in inches)
Ring or Eyelet Dash No.
(Tables IV, V, VI, VII)
Attachment Length
± .25 (6.4)
Ring (Shown with
Style A Solid Ring)
TABLE IV: EYELET
Length + .250 (6.4)
K Dia.
(Table IV)
Length + 1 Link
Length + .250 (6.4)
Dash
No.
01
02
03
04
05
06
07
09
00
K DIA
±.010 (0.3)
.140 (3.6)
.182 (4.6)
.191 (4.9)
.197 (5.0)
.167 (4.2)
.125 (3.2)
.218 (5.5)
.156 (4.0)
No Eyelet
SPLIT RING - Style C
L
SOLID RING - Style B
M
SOLID RING - Style A
N
TABLE V: SPLIT RING
Dash
L Dia.
No. ±.015 (0.4)
50 .425 (10.8)
52 .485 (12.3)
54 .640 (16.3)
56 .750 (19.1)
58 .890 (22.6)
60 1.015 (25.8)
62 1.095 (27.8)
64 1.130 (28.7)
66 1.250 (31.8)
68 1.350 (34.3)
70 1.390 (35.3)
72 1.485 (37.7)
Dash
L Dia.
No. ±.015 (0.4)
74 1.625 (41.3)
76 1.750 (44.5)
78 1.875 (47.6)
80 1.980 (50.3)
82 2.060 (52.3)
84 2.235 (56.8)
86 2.310 (58.7)
88 2.475 (62.9)
90 2.655 (67.4)
92 2.810 (71.4)
94 3.045 (77.3)
TABLE VI: SOLID RING TYPE B
Dash
M Dia.
No. ±.015 (0.4)
08 .468 (11.9)
10 .593 (15.1)
12 .718 (18.2)
13 .765 (19.4)
14 .844 (21.4)
15 .890 (22.6)
16 .968 (24.6)
17 1.015 (25.8)
18 1.093 (27.8)
19 1.140 (29.0)
20 1.203 (30.6)
21 1.265 (32.1)
22 1.343 (34.1)
23 1.453 (36.9)
Dash
M Dia.
No. ±.015 (0.4)
24 1.484 (37.7)
25 1.577 (40.1)
27 1.640 (41.7)
28 1.687 (42.8)
29 1.765 (44.8)
30 1.890 (48.0)
31 1.953 (49.6)
32 1.968 (50.0)
33 2.077 (52.8)
35 2.140 (54.4)
36 2.187 (55.5)
40 2.406 (61.1)
44 2.656 (67.5)
48 3.031 (77.0)
TABLE VII: SOLID RING TYPE A
Dash
N Dia.
No. ±.015 (0.4)
095 .312 (7.9)
100 .391 (9.9)
101 .516 (13.1)
102 .583 (14.8)
103 .641 (16.3)
104 .708 (18.0)
105 .766 (19.5)
205 .788 (20.0)
106 .896 (22.2)
206 .907 (23.0)
107 1.016 (25.8)
207 1.025 (26.0)
108 1.141 (29.0)
308 1.188 (30.2)
208 1.203 (30.6)
Dash
N Dia.
No. ±.015 (0.4)
109 1.266 (32.2)
209 1.312 (33.3)
110 1.391 (35.3)
210 1.438 (36.5)
111 1.521 (38.6)
211 1.536 (39.0)
112 1.641 (41.7)
113 1.766 (44.9)
213 1.812 (46.0)
114 1.891 (48.0)
214 1.938 (49.2)
115 2.078 (52.8)
116 2.406 (61.1)
117 2.510 (63.8)
Metric dimensions (mm) are
indicated in parentheses.
© 2003 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 67 - Page 2
