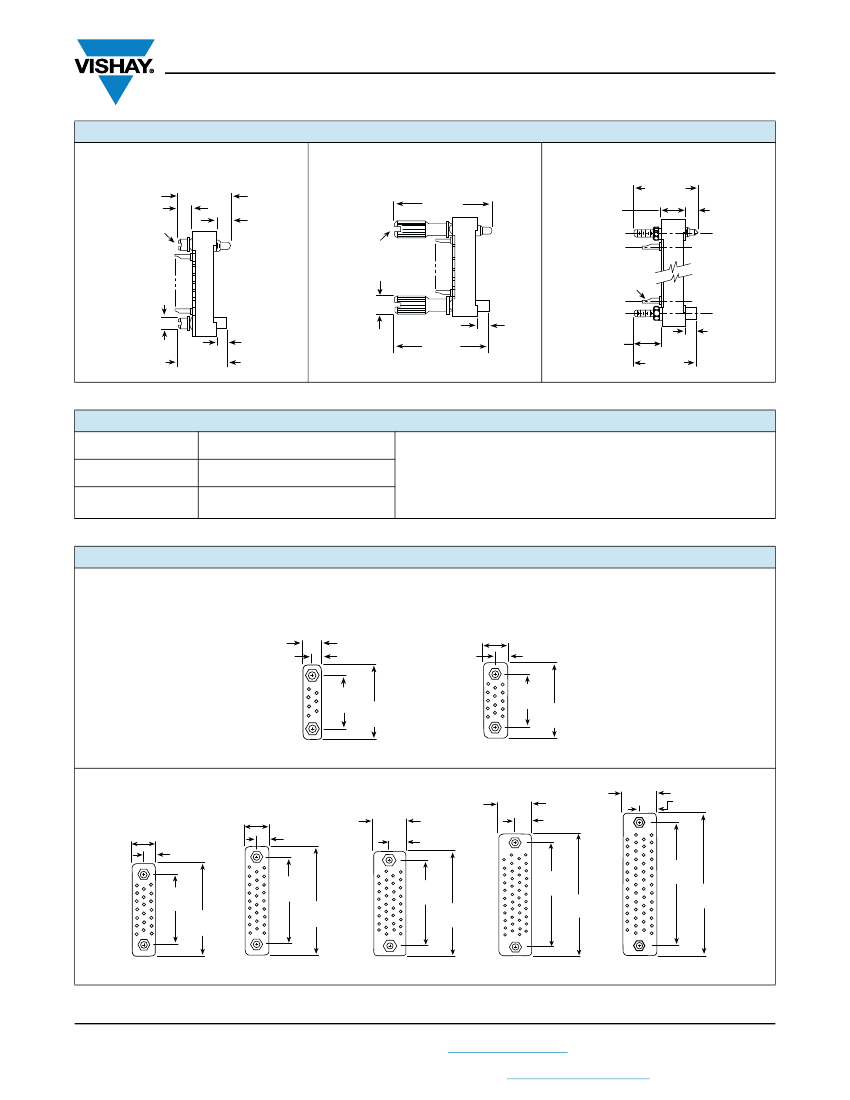

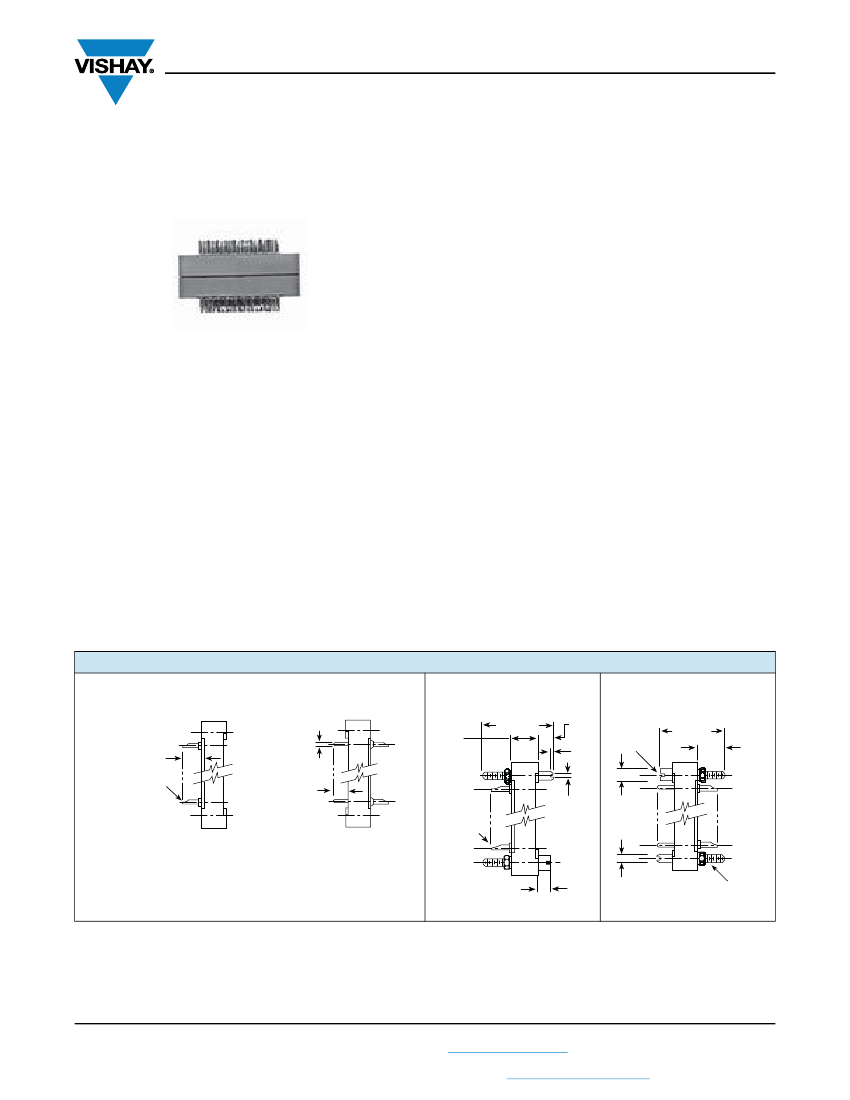

MIL-C-28748/7/8
www.vishay.com
Vishay Dale
Rack and Panel Connectors Military, MIL-C-28748/7/8 Qualified
Microminiature Rectangular
FEATURES
• Qualified to MIL-C-28748/7/8
• Solder cup contacts
• Fixed and turnable screwlocks
• Closed entry socket contacts
• Group A, B testing per MIL-C-28748
APPLICATIONS
Especially suited for use in airborne, instrumentation and
portable equipment applications or wherever the following
requirements must be met: Minimum space and weight
without sacrifice of performance, high quality materials, long
service life, high vibration and shock resistance and positive
locking.
ELECTRICAL SPECIFICATIONS
Current Rating:
Model MM22 = 5 A
Breakdown Voltage:
At sea level: 2000 V
RMS
At 70 000 feet: 500 V
RMS
MATERIAL SPECIFICATIONS
Contact Pin:
Phosphor bronze
Contact Socket:
Phosphor bronze
Contact Plating:
Gold 50 micro-inches per ASTM B488
Screwlocks:
Stainless steel, passivated
Guides:
Stainless steel, passivated
Standard Body:
Glass-filled diallyl phthalate per
ASTM D5948, Model SDG-F, green
DIMENSIONS
in inches [millimeters]
/8
With Solder Cup Contacts
/7
With Solder Cup Contacts
0.030 ± 0.0005
0.110 [2.79]
Typ.
0.034 [0.864] Dia.
Solder Cup
0.140
[3.56]
/8
With Fixed Guides 00G1A
0.230
[5.84]
0.620
[15.75]
0.140
[3.56]
0.040
[1.02]
Typ.
/7
With Fixed Guides 00G1A
“A”
End of
Connector
0.590
[14.99]
0.250
[6.35]
0.034
[0.864]
Dia.
Solder Cup
#22
AWG Max.
0.030
[0.762]
Typ.
0.125
Sockets
Pins
0.110 [2.79]
0.078
2-56 UNC-2A
Typ.
Revision: 24-Feb-14
Document Number: 36009
1
For technical questions, contact:
connectors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MIL-C-28748/7/8
www.vishay.com
Vishay Dale
NUMBER OF
CONTACTS
F (34)
G (44)
H (50)
PANEL CUTOUT
in inches [millimeters]
A
NUMBER OF
CONTACTS
B (7)
A
0.210 [5.33]
0.270 [6.86]
0.270 [6.86]
0.270 [6.86]
B
C
A
0.380 [9.65]
0.380 [9.65]
0.380 [9.65]
B
1.03 [26.16]
1.28 [32.51]
1.41 [35.81]
C
0.910 [23.11]
1.16 [29.46]
1.28 [32.51]
0.562 [14.27] 0.440 [11.18]
0.625 [15.88] 0.500 [12.70]
0.814 [20.68] 0.690 [17.53]
1.0 [25.40]
0.870 [22.10]
B C
0.050
[1.27]
R Typ.
C (14)
D (20)
0.093 [2.36]
E (26)
ORDERING INFORMATION
CONNECTOR
M28748/7
C
MM
P
22
G5
-
NUMBER OF
CONTACTS
HARDWARE
OPTIONS
CONTACTS MODEL
CONTACT CONTACT PLATING
STYLE
SIZE
P = Pin
S = Socket
HARDWARE
Microminiature
22 AWG = 0.030"
[0.762 mm] diameter
G5 = Gold (0.00005 thick)
over nickel
Closed entry socket contacts
B (7)
C (14)
D (20)
E (26)
F (34)
G (44)
H (50)
M28748/8 same as /7
00G1A =
00F1A =
00S1A =
00E1A =
Long
slotted cres guides 0.078" [1.98 mm] diameter
Chassis mounted fixed screwlocks
long
(2-56 thread)
Cable mounted - turnable screwlocks (2-56 thread)
Cable mounted - turnable screwlocks (2-56 thread)
with short knobs
Revision: 24-Feb-14
Document Number: 36009
3
