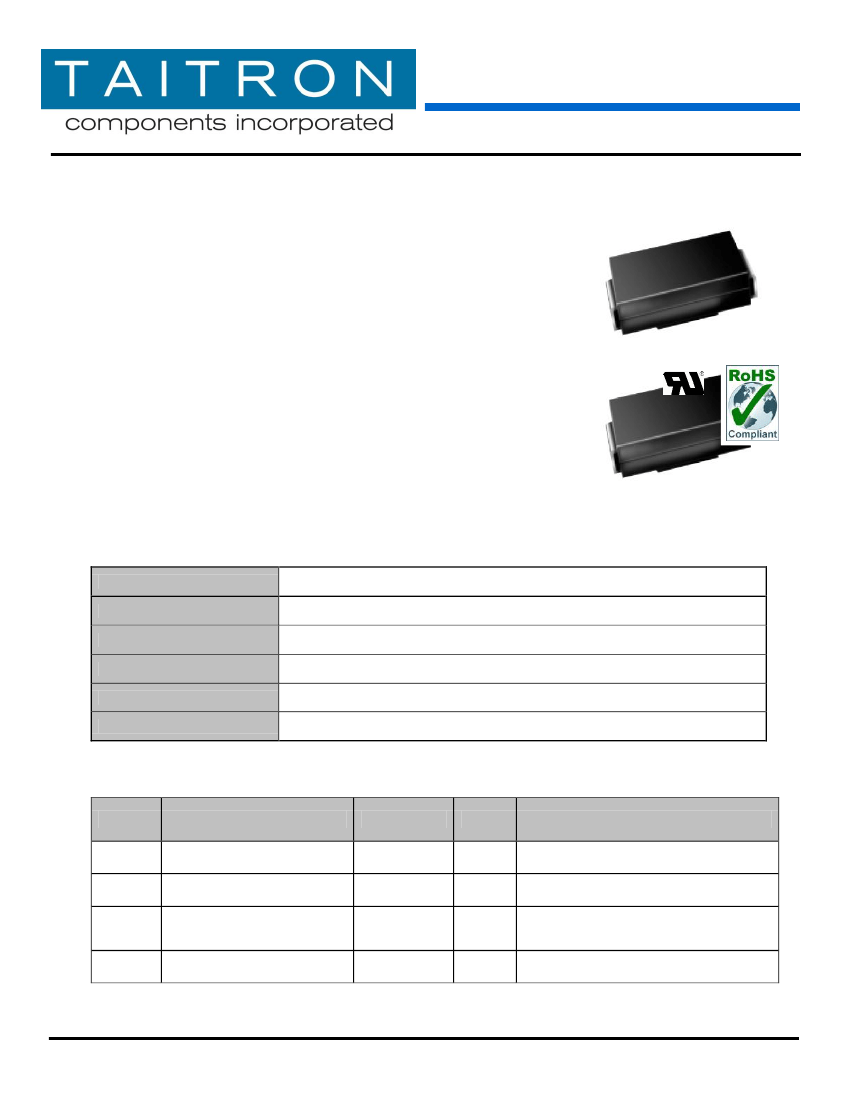

3000W Surface Mount
Transient Voltage Suppressor
3.0SMCJ5.0A
–
3.0SMCJ220CA
3000W Surface Mount Transient Voltage Suppressor
Features
Stand-off voltage from 5.0 to 220 volts
Glass passivated junction
Excellent clamping capability
3000W peak pulse power capability with a 10/1000μs waveform,
repetition rate(duty cycle): 0.01%
SMC
Fast response time: typically less than 1.0ps from 0v to V
BR
Low inductance, Low incremental surge resistance
High temperature soldering guaranteed: 250°
C/10 seconds at terminals
3.0SMCJ5.0A/CA – 3.0SMCJ170A/CA series is UL recognized under component index.
File number E315008
RoHS Compliant
Mechanical Data
Case:
Epoxy:
Terminals:
Polarity:
Mounting Position:
Weight:
JEDEC DO-214AB(SMC) molded plastic
Plastic package has UL flammability classification 94V-0
Solder plated, solderable per MIL-STD-750,
Method 2026
Cathode indicated by color band except Bi-directional
Any
0.007 ounce, 0.21 gram
Maximum Ratings
(T
Ambient
=25º unless noted otherwise)
C
Symbol
P
PPM
I
PPM
I
FSM
T
J,
T
STG
Description
Peak Pulse Power Dissipation
on 10/1000μs Waveform
Peak Pulse Current
on 10/1000μs Waveform
Peak Forward Surge Current,
Uni-directional only (Note 2)
Operating Junction and Storage
Temperature Range
Value
Minimum 3000
See Table 1
300
-55 to 150
Unit
W
A
A
°C
Note (1) (2)
Note (1)
Conditions
8.3ms single half sine-wave or equivalent
square wave, duty cycle=4 pulses per minute
maximum
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-TAITRON
Fax: (800)-TAITFAX
(800)-824-8766
(800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. E/CH
Page 1 of 7
3000W Surface Mount Transient Voltage Suppressor
3.0SMCJ5.0A
–
3.0SMCJ220CA
Notes:
(1) Non-repetitive current pulse, per Fig.3 and derated above T
A
= 25° per Fig. 2.
C
(2) Mounted on 0.31 x 0.31” (8.0 x 8.0mm) copper pads to each terminal.
Electrical Characteristics
(T
Ambient
=25º unless noted otherwise)
C
Reverse
Stand-
Off
Voltage
Breakdown Voltage
@ Test Current
Max.
Clamping
Voltage@
Max.
Peak
Pulse
Current
Max.
Reverse
Leakage
Current
@
V
WM
P/N
Device Marking Code
V
BR
I
T
(mA)
Min.
6.40
6.67
7.22
7.78
8.33
8.89
9.44
10.0
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20.0
22.2
24.4
26.7
28.9
31.1
33.3
Max.
7.00
7.37
7.98
8.60
9.21
9.83
10.4
11.1
12.3
13.5
14.7
15.9
17.2
18.5
19.7
20.9
22.1
24.5
26.9
29.5
31.9
34.4
36.8
10
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
I
PPM
V
C
(V)
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
Uni-Polar
3.0SMCJ5.0A
3.0SMCJ6.0A
3.0SMCJ6.5A
3.0SMCJ7.0A
3.0SMCJ7.5A
3.0SMCJ8.0A
3.0SMCJ8.5A
3.0SMCJ9.0A
3.0SMCJ10A
3.0SMCJ11A
3.0SMCJ12A
3.0SMCJ13A
3.0SMCJ14A
3.0SMCJ15A
3.0SMCJ16A
3.0SMCJ17A
3.0SMCJ18A
3.0SMCJ20A
3.0SMCJ22A
3.0SMCJ24A
3.0SMCJ26A
3.0SMCJ28A
3.0SMCJ30A
Bi-Polar
3.0SMCJ5.0CA
3.0SMCJ6.0CA
3.0SMCJ6.5CA
3.0SMCJ7.0CA
3.0SMCJ7.5CA
3.0SMCJ8.0CA
3.0SMCJ8.5CA
3.0SMCJ9.0CA
3.0SMCJ10CA
3.0SMCJ11CA
3.0SMCJ12CA
3.0SMCJ13CA
3.0SMCJ14CA
3.0SMCJ15CA
3.0SMCJ16CA
3.0SMCJ17CA
3.0SMCJ18CA
3.0SMCJ20CA
3.0SMCJ22CA
3.0SMCJ24CA
3.0SMCJ26CA
3.0SMCJ28CA
3.0SMCJ30CA
Uni
3.0 5V0A
3.0 6V0A
3.0 6V5A
3.0 7V0A
3.0 7V5A
3.0 8V0A
3.0 8V5A
3.0 9V0A
3.0 10A
3.0 11A
3.0 12A
3.0 13A
3.0 14A
3.0 15A
3.0 16A
3.0 17A
3.0 18A
3.0 20A
3.0 22A
3.0 24A
3.0 26A
3.0 28A
3.0 30A
Bi
3.0 5V0C
3.0 6V0C
3.0 6V5C
3.0 7V0C
3.0 7V5C
3.0 8V0C
3.0 8V5C
3.0 9V0C
3.0 10C
3.0 11C
3.0 12C
3.0 13C
3.0 14C
3.0 15C
3.0 16C
3.0 17C
3.0 18C
3.0 20C
3.0 22C
3.0 24C
3.0 26C
3.0 28C
3.0 30C
V
C
(V)
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10.0
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
I
PPM
(A)
326.1
291.3
267.9
250.0
232.6
220.6
208.3
194.8
176.5
164.8
150.8
139.5
129.3
123.0
115.4
108.7
102.7
92.6
84.5
77.1
71.3
66.1
62.0
I
D
(A)
800
800
500
200
100
50
20
10
5.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
Rev. E/CH
www.taitroncomponents.com
Page 2 of 7
3000W Surface Mount Transient Voltage Suppressor
3.0SMCJ5.0A
–
3.0SMCJ220CA
Note:
(1)
For Bi-directional type having V
RWM
of 10 volts and less, the I
R
limit is doubled.

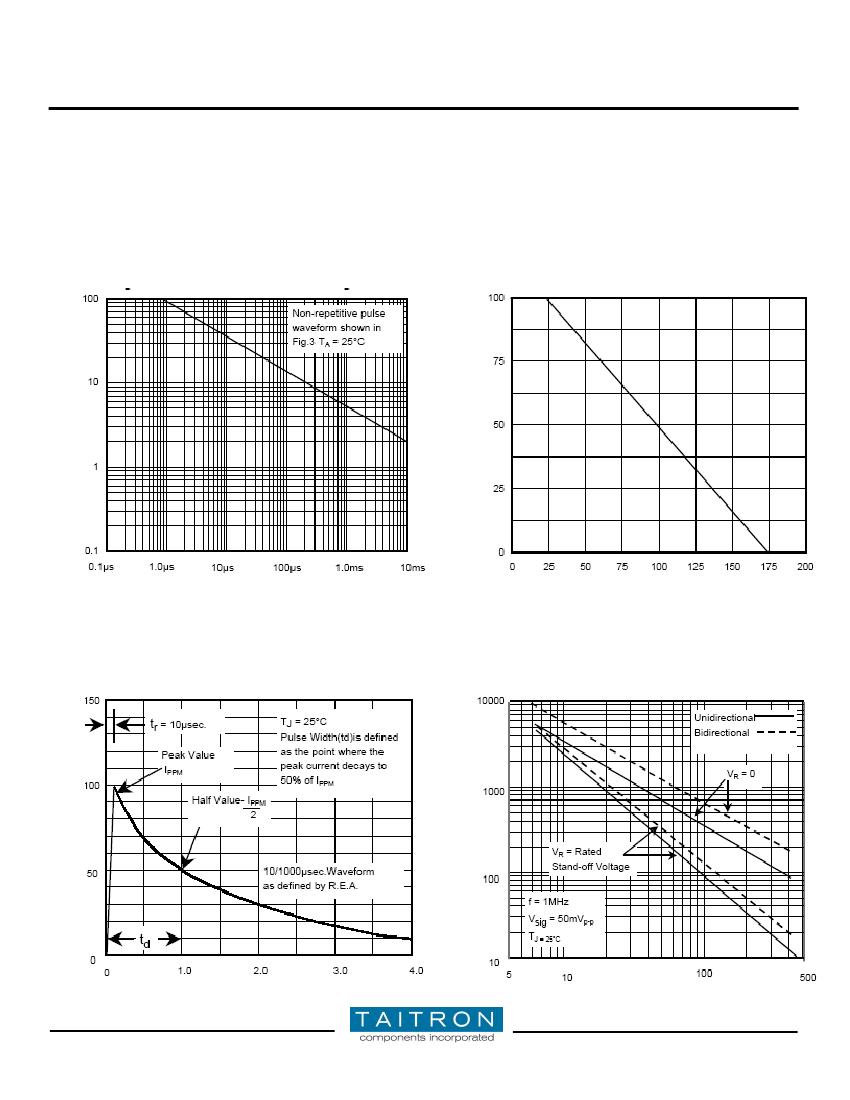

Typical Characteristics Curves
Fig.1- Peak Pulse Power Rating Curve
Peak Pulse Power (
P
PP
) or Current (
I
PP
)
Derating in Percentage (%)
Fig.2- Pulse Derating Curve
P
PPM
- Peak Pulse Power (KW)
Td - Pulse Width (sec.)
T
A
-Ambient Temperature T
A
(°
C)
Fig.3- Pulse Waveform
Fig.4-Typical Junction Capacitance
I
PPM -
Peak Pulse Current (%) I
RSM
C
J
- Capacitance (pF)
t
- Time (ms)
www.taitroncomponents.com
V
WM –
Reverse Stand-Off Voltage (V)
Rev. E/CH
Page 4 of 7
3000W Surface Mount Transient Voltage Suppressor
3.0SMCJ5.0A
–
3.0SMCJ220CA
P
PM(AV)
, Steady State Power Dissipation (W)

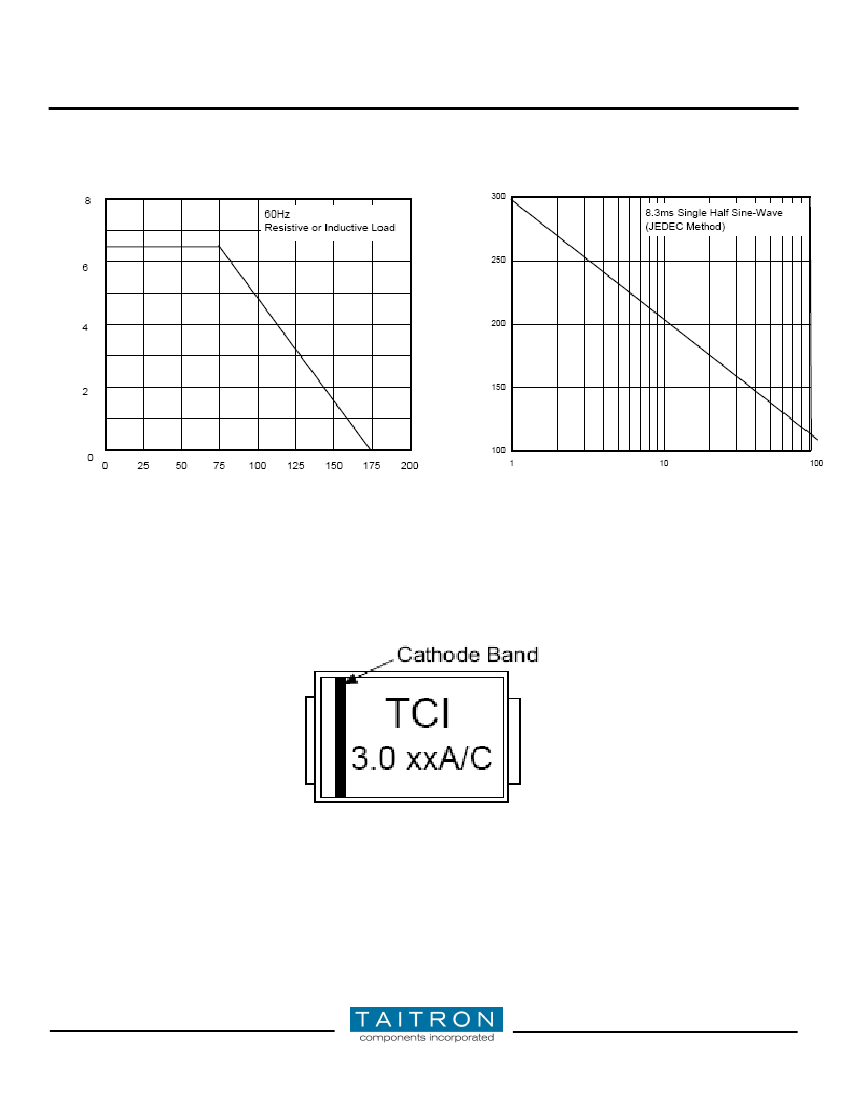

Fig.5- Steady State Power Derating Curve
Fig.6- Maximum Non-repetitive Peak Forward Surge
Current Uni-directional Only
I
FSM
-
Peak Forward Surge Current (A)
T
L
– Lead Temperature (
°C
)
Number of Cycles at 60 Hz
Marking Information:
Rev. E/CH
www.taitroncomponents.com
Page 5 of 7
