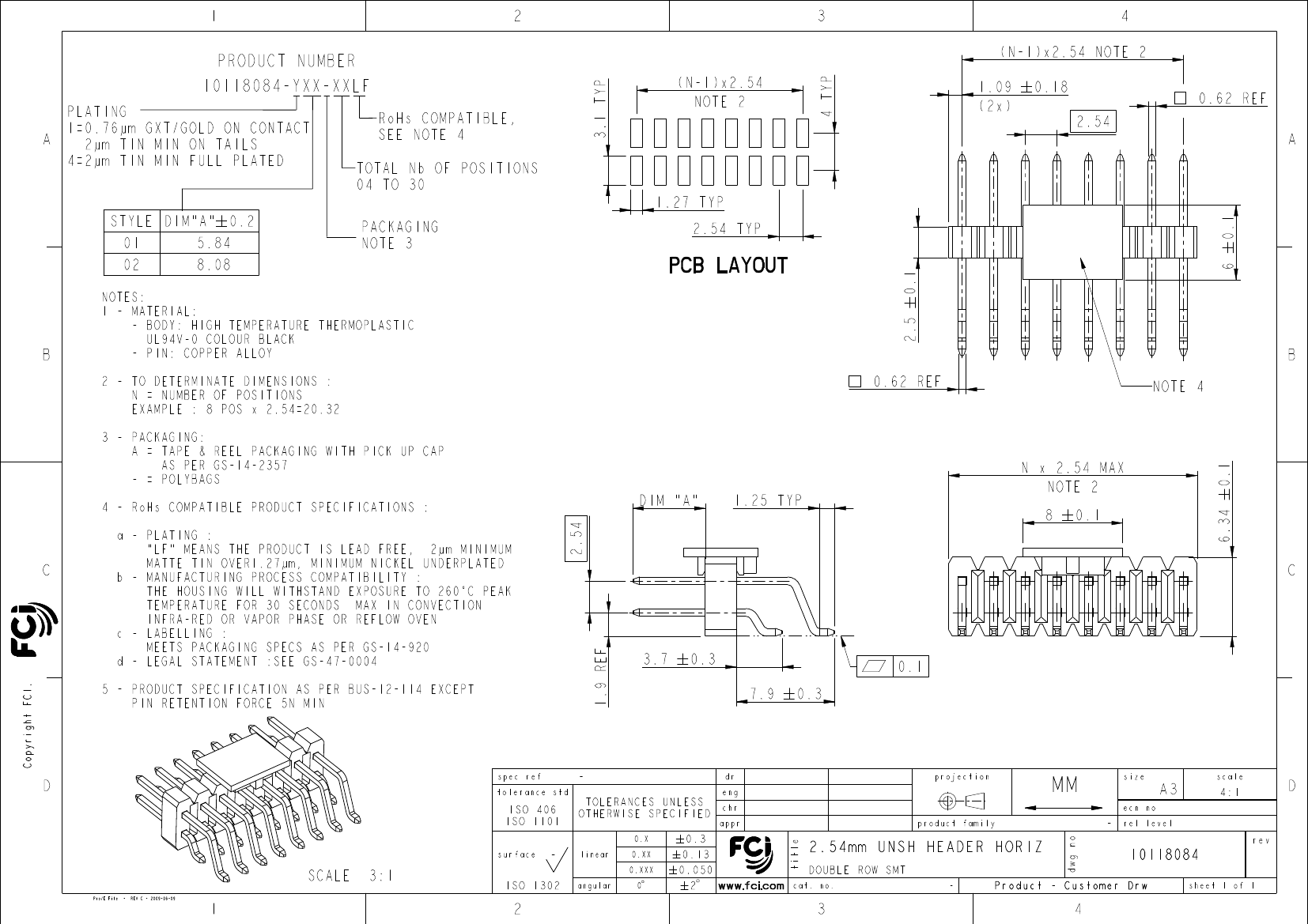

10118084-102A20LF datasheet, PDF

10118084-102A20LF: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size141KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

10118084-102A20LF Overview

Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

Parameter Name	Attribute value
Is it Rohs certified?	Yes
Is Samacsys	N
YTEOL	9.1
Objectid	1804268105
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.25 inch
subject depth	0.409 inch
body length	1 inch
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Installation method	RIGHT ANGLE
Terminal pitch	2.54 mm
Total number of contacts	20
insulator material	POLYETHYLENE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Installation option 1	LOCKING
PCB contact row spacing	3.9878 mm
Plating thickness	30u inch
Termination type	SURFACE MOUNT
Contact material	COPPER ALLOY
Insulator color	BLACK
Mixed contacts	NO
Number of connectors	ONE
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact style	RND PIN-SKT
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
contact mode	RECTANGULAR
PCB contact pattern	RECTANGULAR
Filter function	NO
JESD-609 code	e3
Guideline	UL

Aymeric Soudy

Benoit Vernier

J M Compagnon

Aymeric Soudy

2014/02/21

2015/05/04

2015/05/05

ELX-B-20803-1

Released

C

PDS: Rev :C

STATUS:Released

Printed: May 05, 2015
