320-001

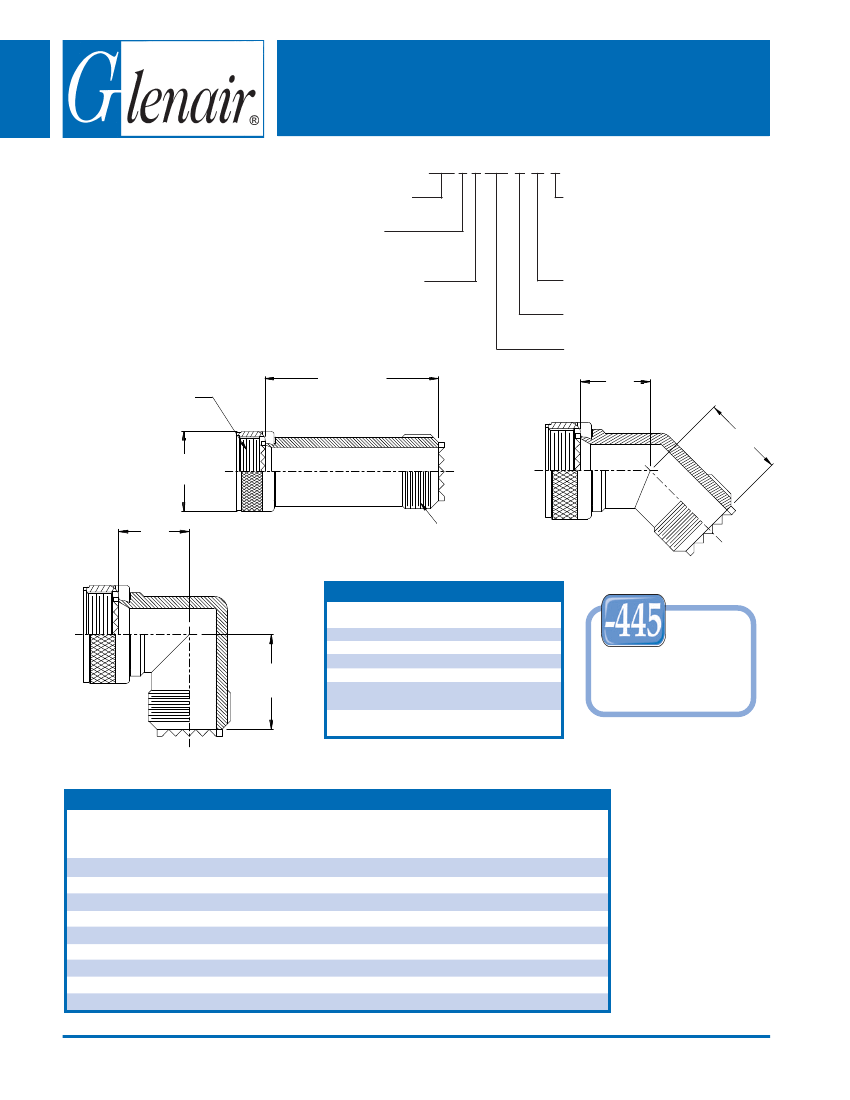

Extender Backshell
Standard Profile - Rotatable Coupling
320 F S 001 M 16-3
Product Series
Connector
Designator
Angle and Profile
L = 90°
K = 45°
S = Straight
Length - Straight only
(1/2 inch increments:
e.g. 3 = 1.5 inches) Minimum
order length 1.0 inches
Shell Size (Table I)
Finish (Table II)
Basic Part No.
Length
±.060 (1.52)
E
(Table III)
32
CONNECTOR
DESIGNATORS
A-D-F-H-L-S
ROTATABLE
COUPLING
A Thread Class 2B
(Table I)
C Typ.
(Table I)
F (Table III)
G
(Table III)
A Thread - Class 2A
(Table I)
TABLE II : STANDARD FINISHES
GLENAIR
SYMBOL
B
C
G
M
NF
FINISH
Cadmium Plate, Olive Drab
Anodize, Black
Hard Coat, Anodic
Electroless Nickel
Cadmium Plate, Olive Drab Over
Electroless Nickel
Now Available
with the “NESTOR”
H (Table III)
Add “-445” to Specify
Glenair’s Non-Detent,
Spring-Loaded, Self-
Locking Coupling.
See Back Cover for Complete Finish Information
and Additional Finish Options
TABLE III: DIMENSIONS
Shell Size
Conn. Desig.
A-F-L-S H
08
09
10
11
12
13
14
15
16
17
18
19
21
20
22
23
24
25
© 2005 Glenair, Inc.
G
Max
.940 (23.9)
1.010 (25.7)
1.070 (27.2)
1.130 (28.7)
1.190 (30.2)
1.240 (31.5)
1.310 (33.3)
1.360 (34.5)
1.540 (39.1)
F
Max
.890 (22.6)
.920 (23.4)
.942 (23.9)
.970 (24.6)
.990 (25.1)
1.010 (25.7)
1.040 (26.4)
1.060 (26.9)
1.090 (27.7)
E
Max
.830 (21.1)
.860 (21.8)
.882 (22.4)
.900 (22.9)
.930 (23.6)
.950 (24.1)
.980 (24.9)
1.000 (25.4)
1.030 (26.2)
H
Max
1.000 (25.4)
1.070 (27.2)
1.130 (28.7)
1.190 (30.2)
1.250 (31.8)
1.300 (33.0)
1.370 (34.8)
1.420 (36.1)
1.490 (37.8)
See inside back
cover fold-out or
pages 13 and 14
for unabridged
Tables I and II.
Metric dimensions
(mm) are indicated in
parentheses.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 32 - Page 2
