All numerical values are in metric units [with U.S. customary units in brackets]. Dimensions are in millimeters [and
inches]. Unless otherwise specified, dimensions have a tolerance of +0.13 [+.005] and angles have a tolerance of +2_.
Figures and illustrations are for identification only and are not drawn to scale.
1. INTRODUCTION
This specification covers the requirements for application of AMPLIMITE .050 Series cable end IDC and pc
board connector. The connectors offer high- density “D” mating (keystone configuration) interfaces available in
-
plug and receptacles with 20 through 120 positions (sizes) having 1.27¢2.54 [.050¢.100] contact centerlines.
The connectors are available with a metal shell over a plastic housing for electromagnetic interference
shielding (EMI) and electrostatic discharge (ESD) shielded applications.
The cable end connector contains insulation displacement contacts and is available with pre-
-assembled or
unassembled termination covers. The cable end connector is available for free-
-hanging applications or
panel- mount applications.
-
NOTE
Feed--through cable end connectors are also available and are covered in Application Specification 114--40049.
i
For free- hanging cable end connectors, a shielded metal backshell, available with a straight cable exit or
-
angled cable exit, must be used to provide cable strain relief and prevent movement of the terminated wires in
the insulation displacement contacts. The metal backshell consists of two intermating halves and a serrated
strain- relief staple. The strain-
-
-relief staple is used to clamp the cable bundle to the lower half of the metal
backshell, which reduces stress on the terminated wires. Straight cable exit and angled cable exit metal
backshells are available in kits that include latches. Latches lock with a mating connector that has either latch
blocks or latch block and rails. Straight cable exit metal backshells are available in kits that include jackscrews.
Jackscrews secure the cable end connector with a mating connector that has screwlocks.
When corresponding with personnel, use the terminology provided in this specification to facilitate your
inquiries for information. Basic terms and features of this product are provided in Figure 1.
Cable End Connectors
Pre--Assembled
Termination Covers
Metal Shell
Free Hanging
Metal Shell
Plastic Housing
Panel Mount
Optional
Latch Block
(2 Places)
Insulation
Displacement
Contacts
Unassembled
Termination Covers
Plastic Housing
Optional Latch Block
and Rail (2 Places)
Unassembled
Termination Covers
Figure 1 (Cont’d)
Threaded Hole for Mounting
Screw or Screwlock (2 Places)
E2011
Tyco Electronics Corporation, a TE Connectivity Ltd. Company
All Rights Reserved
*Trademark
TOOLING ASSISTANCE CENTER 1- 800- 722- 1111
- - -
PRODUCT INFORMATION 1- 800- 522- 6752
- - -
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at
www.te.com
1
of 20
LOC B
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or Company names may be trademarks of their respective owners.
114-- 40029
PC Board Connectors
Vertical Connector
Latch Block
(2 Places)
Right--Angle Connector
Latch Block
(2 Places)
2--56 Threaded
Hole (2 Places)
Stacked Connector
Latch Block and
Rail (4 Places)
Latch Block and
Rail (2 Places)
2--56 Threaded
Hole (4 Places)
2--56 Threaded
Hole (2 Places)
Latch Block and
Rail (2 Places)
2--56 Threaded
Hole (4 Places)
2--56 Threaded
Hole (4 Places)
Boardlock
(4 Places)
4--40 Threaded
Hole (2 Places)
4--40 Threaded
Hole (2 Places)
Straight Cable Exit
Upper Half
Screw
(Typ)
Wire Exit
Metal Backshell
Wire Exit
Angled Cable Exit
Upper Half
Upper Half
Wire Exit
Lower Half
Strain--Relief
Staple
Jackscrew
(2 Places)
Strain--Relief
Staple
Lower Half
Latch (2 Places)
Lower Half

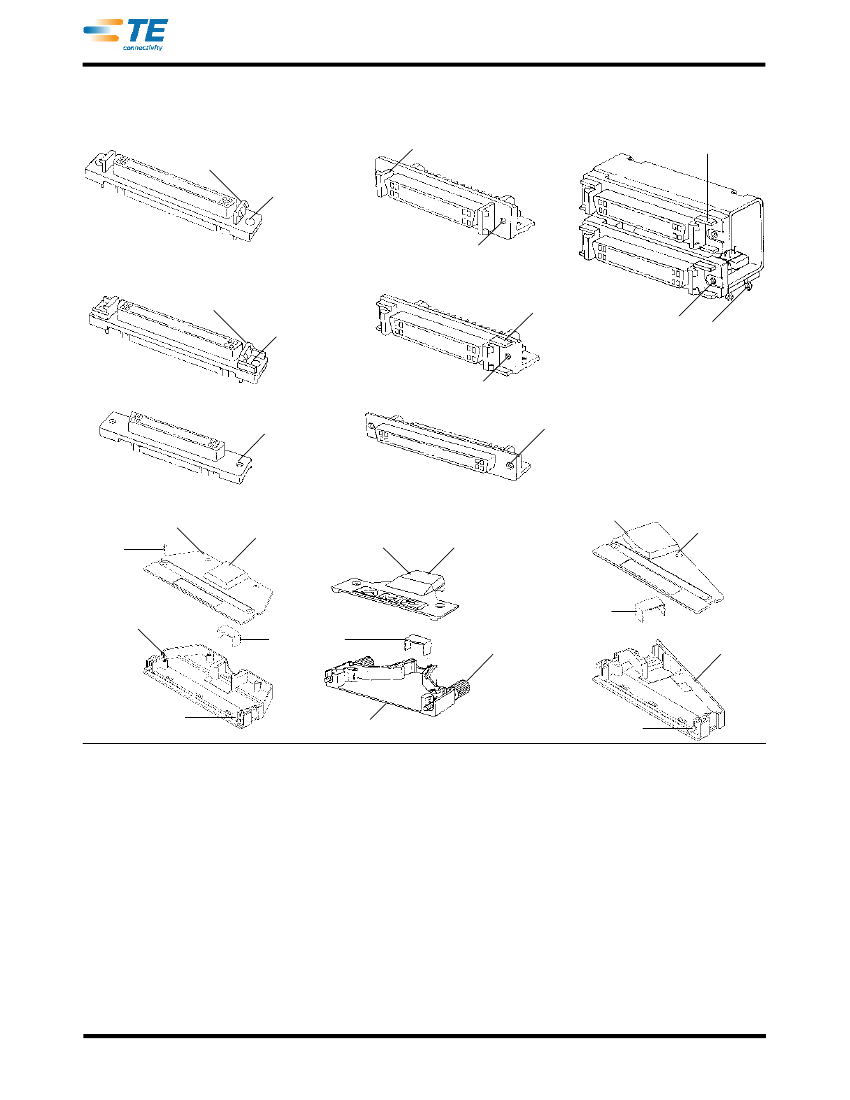

Figure 1 (End)
Latch (2 Places)
The panel-
-mount cable end connector features threaded holes in the mounting flange, which accept
commercially- available hardware or screwlocks to secure the connector to a panel. Screwlocks are also used
-
to lock with a mating connector having a metal backshell with jackscrews. The panel- mount cable end
-
connector is available with latch blocks, latch blocks and rails, or without either. The latch blocks and latch
blocks and rails are used to lock mating connectors together in cable- - cable applications, when the mating
-to-
connector has a backshell with latches.
The pc board connector is available in vertical, right- angle single, and right- angle stacked configurations with
-
-
solder- type contacts or vertical configuration with ACTION PIN* (solderless) contacts. The pc board connector
-
features boardlocks or threaded holes that accept commercially- available hardware to secure the connector to
-
the pc board. Threaded holes in the mounting flange accept commercially-
-available hardware or screwlocks to
secure the pc board connector to a panel. Screwlocks are also used to lock with a mating connector having a
metal backshell with jackscrews. The pc board connector is available with latch blocks, latch blocks and rails,
or without either. The latch blocks and latch blocks and rails are used to lock with a cable end connector having
a metal backshell with latches.
2
of 20
Rev
J
114-- 40029
Panel- mount cable end connectors and pc board connectors having latch blocks and rails mating with cable
-
end connectors having a metal backshell with latches only allow the connectors to unmate by pulling them
straight apart. Unmating connectors using a rocking motion can cause damage to the contacts.
2. REFERENCE MATERIAL
2.1. Revision Summary
Revisions to this application specification include:
S
Removed trademark from Paragraph 3.3,A
2.2. Customer Assistance
Reference Product Base Part Number 5749621 and Product Code 4620 are representative of
AMPLIMITE .050 Series cable end IDC and pc board connectors. Use of these numbers will identify the
product line and expedite your inquiries through a service network established to help you obtain product and
tooling information. Such information can be obtained through a local Representative or, after purchase, by
calling PRODUCT INFORMATION at the number at the bottom of page 1.
2.3. Drawings
Customer Drawings for product part numbers are available from the service network. If there is a conflict
between the information contained in the Customer Drawings and this specification or with any other technical
documentation supplied, the information contained in the Customer Drawings takes priority.
2.4. Manuals
Manual 402- 40 can be used as a guide to soldering. This manual provides information on various flux types
-
and characteristics with the commercial designation and flux removal procedures. A checklist is included in the
manual as a guide for information on soldering problems.
2.5. Specifications
Application Specifications (114-
-series) provide product description and application requirements. Product
Specifications (108- series) provide product performance and test information. Specifications that pertain to
-
these connectors are:
114- 40049
-
108- 1228
-
108- 1228- 1
-
-
108- 1359
-
AMPLIMITE .050 Series Feed-
-Through Connectors for 0.64 [.025] Ribbon Cable
AMPLIMITE Shielded .050 Series Connectors
AMPLIMITE Stacked .050 Series Connectors
AMPLIMITE .050 Series Connectors for 0.64 [.025] Ribbon Cable
2.6. Instructional Material
Instruction Sheets (408-
-series) provide product assembly instructions or tooling setup and operation
procedures and Customer Manuals (409-
-series) provide machine setup and operating procedures. Documents
available which pertain to these connectors are:
408- 6923
-
408- 9027
-
408- 9200
-
408-
-9427
408- 9663
-
408- 9750
-
408- 9757
-
408-
-9817
408- 9820
-
408- 9822
-
409- 5791
-
409- 5839
-
Manual Arbor Frame Assembly 58024-
-1
Adapter Kit for Greenerd Frame Assemblies 3A and 3B
Repair Tool 58430- for AMPLIMITE .050 Series Connectors
-1
AMPLIMITE .050 Series Connectors (Round- -Flat-
-to-
-Cable)
Installation and Use of Mass Termination Tooling 91291- ]
-[
Cover Lacing Fixture 91293- 1 for AMPLIMITE .050 Series Connectors
