M85049/121S16A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> M85049/121S16A

Preview

M85049/121S16A: Descriptioncircular mil spec backshells strain rlf straight self locking; CategoryThe connector; File Size189KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet View All

M85049/121S16A Overview

circular mil spec backshells strain rlf straight self locking

Preview

Download Datasheet

View All

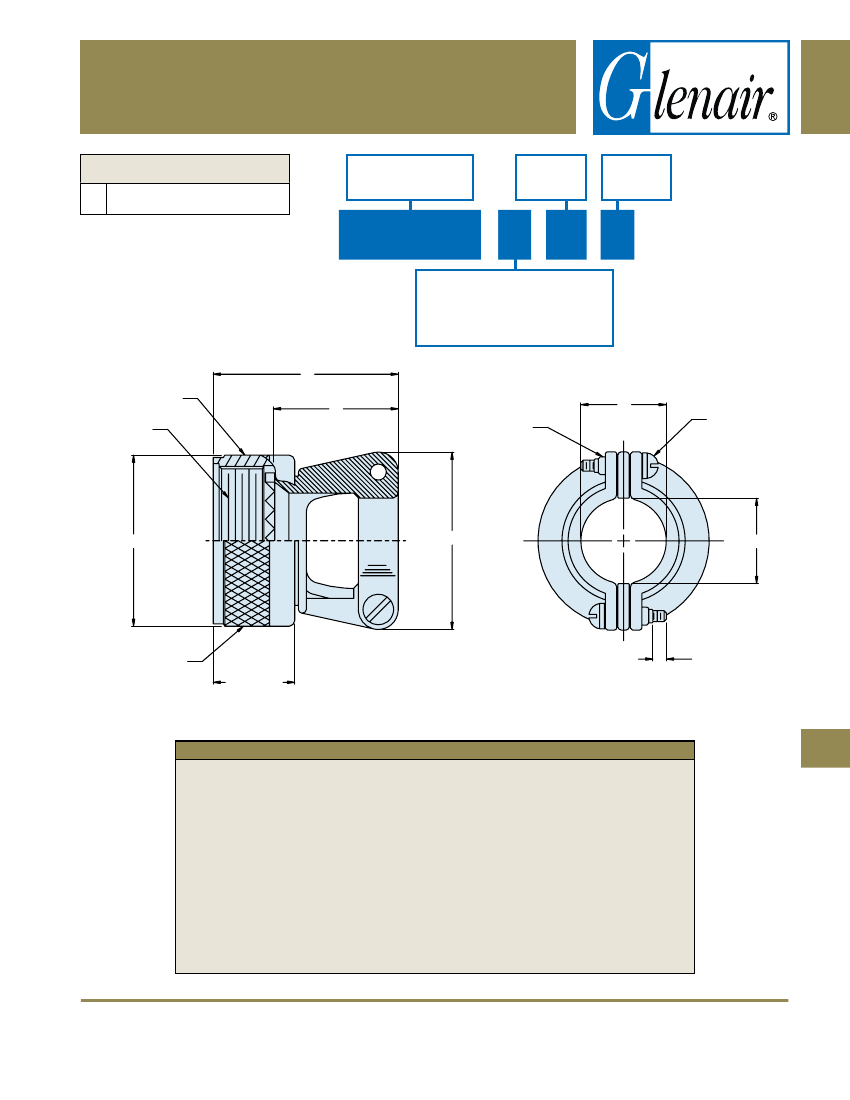

Self-Locking or Non-Self-Locking

CONNECTOR DESIGNATOR:

Dash No.

Table I

Page 62-28

Finish

Table II

Page 62-28

MIL-DTL-38999 Series I and II,

MIL-DTL-27599

Product Series and

Basic Part Number

M85049/121

Detented Self-Locking

= Non-Detented Self-Locking

Use Dash (–) for Non-Self-Locking

(See Note 5)

Coupling Nut

A Thread

Captive

Self-locking Nut

-typ-

See Note 4

Screw

Knurl Style

Optional

.590

(14.99)

Max

.060/.250

(1.52/6.35)

Screw

Extension

APPLICATION NOTES

Captive

Assembly to be identified with manufacturer’s name and part number, space permitting.

-typ-

Glenair Series 600 Backshell Assembly Tools are recommended for assembly and

installation.

Self-locking Nut

See Note 4

Screw

Metric equivalents in parentheses (mm) are given for general information only and are

based on 1.000 inch = 25.4 mm.

Cable entry is measured with saddle bars closed and bottomed on clamp ears.

Detented self-locking has a positive audible detented coupling.

Material/Finish:

Clamp body, coupling nut, saddles - Al alloy or 300 Series SST/See Table II.

Clamp screws and lock nuts - CRES/Passivated, Silver plate optional.

Anti-rotation device - Corrosion resistant material

CAGE Codes 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com

62-27

Strain Reliefs

AS85049/121

Straight Strain Relief
