53315-0503: DescriptionBoard Euro Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size204KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

53315-0503 Overview

Board Euro Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

53315-0503 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	STANDARDS: DIN 41612; IEC 603-2
body width	0.333 inch
subject depth	0.453 inch
body length	3.032 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	YES
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	53315
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	75u inch
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Sizes 16 to 64 circuits

s

DIN 41612 and IEC 603-2 compatible

s

Two points of contact provide low insertion force and

reliable connection

Reference Information

Packaging: Tray

UL File No.: E29179

CSA File No.: LR19980

Mates With:

52299

and

52479

Designed In: Millimeters

Electrical

Voltage: 300V

Current: 2.0A

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 1000V AC

Insulation Resistance: 10

6

M

Ω

min.

Physical

Housing: Glass-ﬁlled PBT, UL 94V-O

Contact: Brass

Metal Peg: Phosphor Bronze

Plating: See Table

Operating Temperature: -55 to +105˚C

2.54mm (.100") Pitch

DIN 41612

Header

53229/53315

Vertical

Backplane Connector Systems

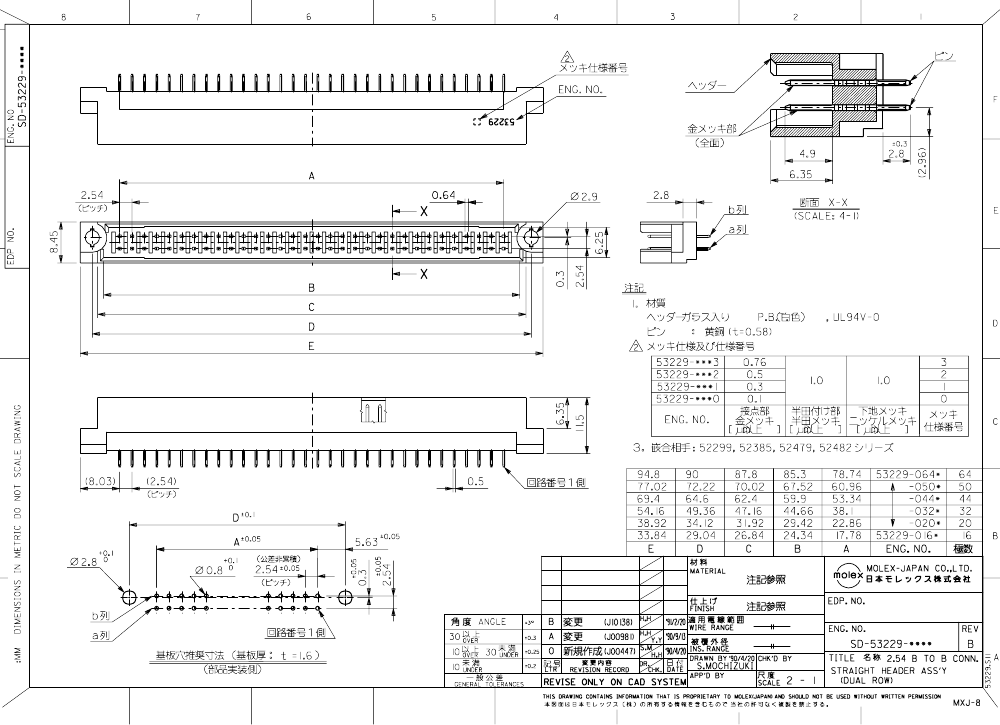

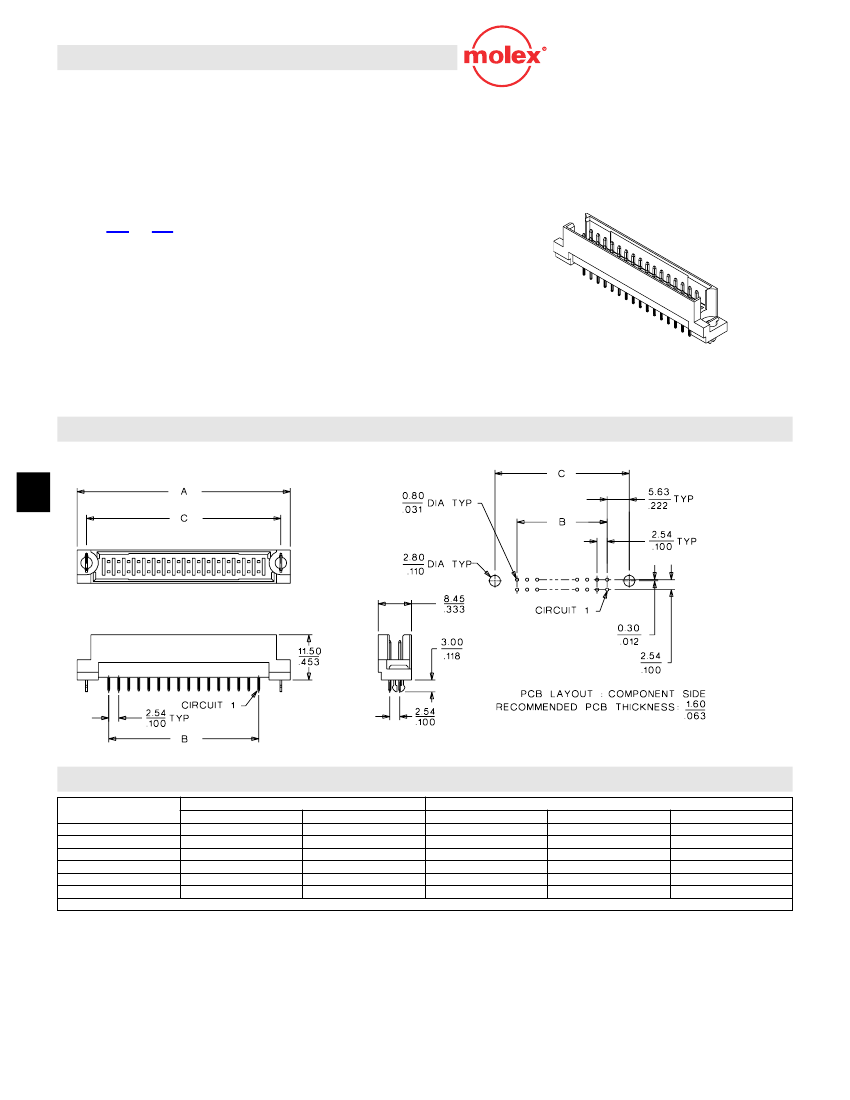

CATALOG DRAWING (FOR REFERENCE ONLY)

J

Note: 53315 shown

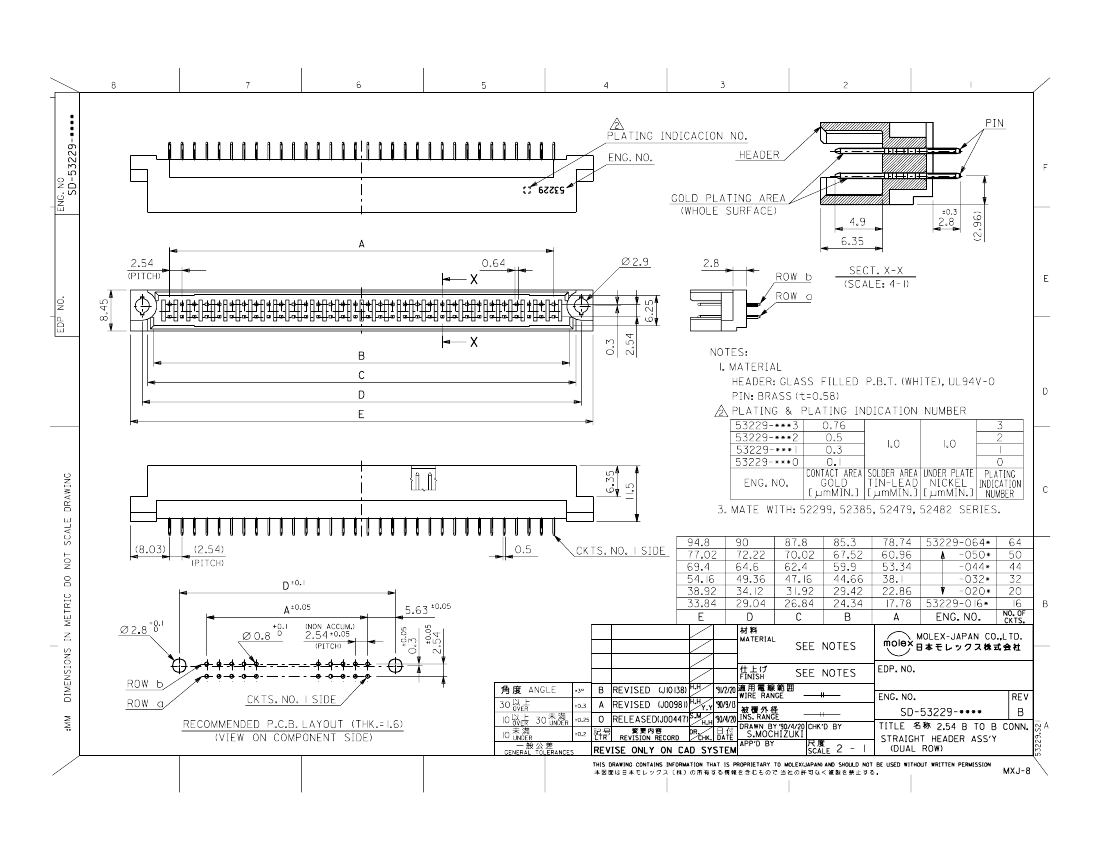

ORDERING INFORMATION AND DIMENSIONS

Circuits

16

20

32

44

50

64

Order No.

Without Metal Peg

53229-016X

53229-020X

53229-032X

53229-044X

53229-050X

53229-064X

With Metal Peg

A

53315-016X

33.84 (1.332)

53315-020X

38.92 (1.532)

53315-032X

54.16 (2.132)

53315-044X

69.40 (2.732)

53315-050X

77.02 (3.032)

53315-064X

94.80 (3.732)

Replace X with plating no., 0-3

Dimension

B

17.78 (.700)

22.86 (.900)

38.10 (1.500)

53.34 (2.100)

60.96 (2.400)

78.74 (3.100)

C

(1.143)

(1.343)

(1.943)

(2.543)

(2.843)

(3.543)

29.04

34.12

49.36

64.60

72.22

90.00

Plating No. 0: 0.1

µ

m Gold with Nickel underplate overall and Tin/Lead in solder area

Plating No. 1: 0.3

µ

m Gold with Nickel underplate overall and Tin/Lead in solder area

Plating No. 2: 0.5

µ

m Gold with Nickel underplate overall and Tin/Lead in solder area

Plating No. 3: 0.76

µ

m Gold with Nickel underplate overall and Tin/Lead in solder area

J-170

MX01
