42-2644: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Plug; CategoryThe connector The connector; File Size114KB，2 Pages; ManufacturerBel Fuse

Download Datasheet Parametric Compare View All

42-2644 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Plug

42-2644 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	SHOCK & VIBRATION RESISTANT
body width	0.319 inch
subject depth	0.453 inch
body length	3.74 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
maximum insertion force	.8896 N
Insulation resistance	10000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
MIL compliance	YES
Manufacturer's serial number	42
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	3 A
Guideline	UL
reliability	MIL-C-55302
Terminal length	0.1 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
Evacuation force-minimum value	.139 N
Base Number Matches	1

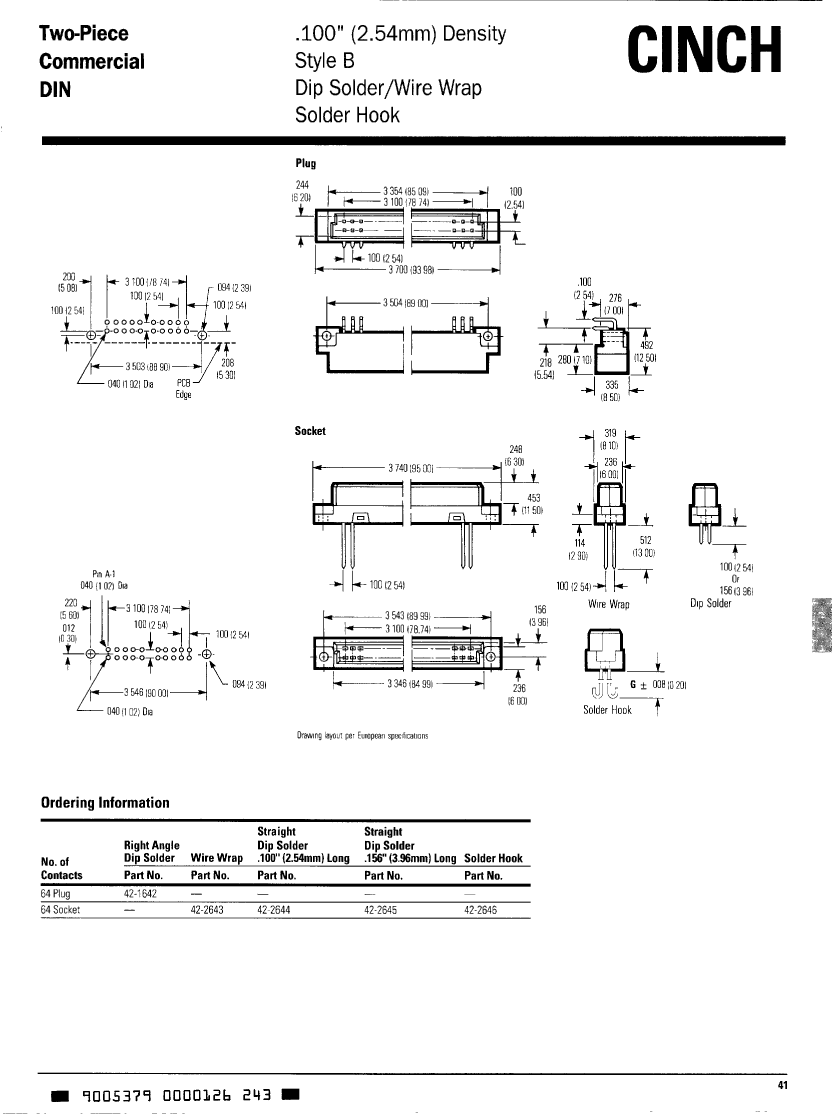

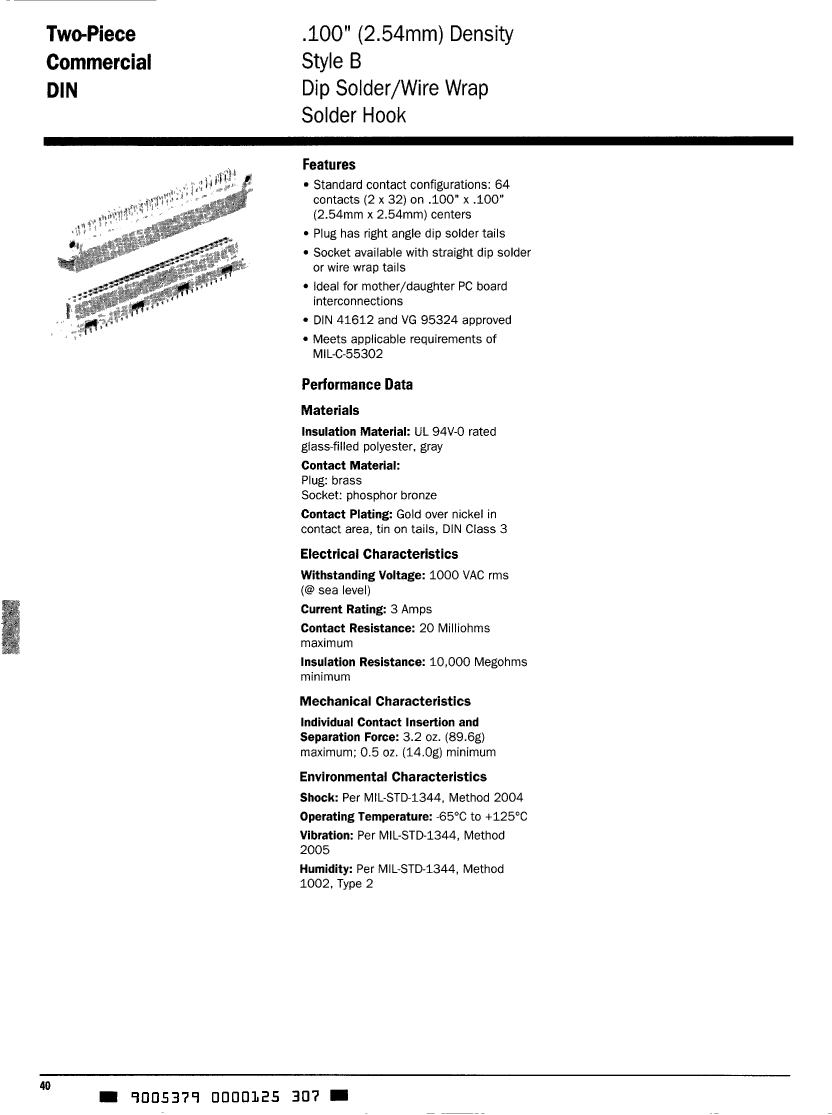

Preview

Download Datasheet

View All

42-2644 Related Products

	42-2644	42-2645	42-2643
Description	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Plug	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Plug	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Gray Insulator, Plug
Reach Compliance Code	compliant	compliant	compliant
Other features	SHOCK & VIBRATION RESISTANT	SHOCK & VIBRATION RESISTANT	SHOCK & VIBRATION RESISTANT
body width	0.319 inch	0.319 inch	0.319 inch
subject depth	0.453 inch	0.453 inch	0.453 inch
body length	3.74 inch	3.74 inch	3.74 inch
Body/casing type	PLUG	PLUG	PLUG
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	YES	YES	YES
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
maximum insertion force	.8896 N	.8896 N	.8896 N
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω
Insulator color	GRAY	GRAY	GRAY
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
MIL compliance	YES	YES	YES
Manufacturer's serial number	42	42	42
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm
polarization key	ENDS	ENDS	ENDS
Rated current (signal)	3 A	3 A	3 A
Guideline	UL	UL	UL
reliability	MIL-C-55302	MIL-C-55302	MIL-C-55302
Terminal length	0.1 inch	0.156 inch	0.512 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	WIRE WRAP
Total number of contacts	64	64	64
Evacuation force-minimum value	.139 N	.139 N	.139 N
Base Number Matches	1	1	1
