with Detented or Non-Detented Self-Locking
or Non Self-Locking Coupling Nut

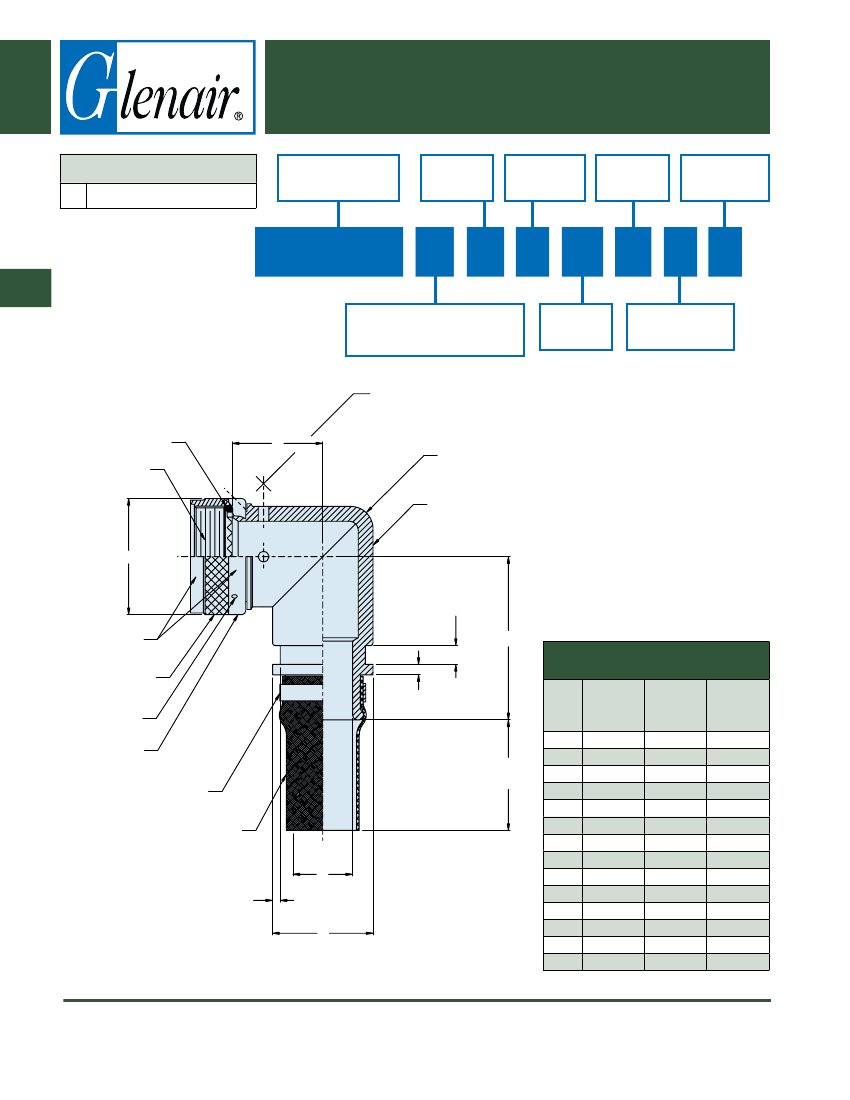

TABLE I: Shell Size, Entry Size, Thread and Dimensions
Accessory
Shell Size
Code
08
10
12
14
16
18
20
22
24
Series I
Shell Size
(Ref)
9
11
13
15
17
19
21
23
25
Series II
Shell Size
(Ref)
8
10
12
14
16
18
20
22
24
A
Thread Class 2B
7/16-28 UNEF
9/16-24 UNEF
B Max
Diameter
H
Max
J
Max
Allowable
Cable
Entry Size
01
01-03
01-05
03-07
05-09
06-10
08-12
09-13
10-14
.858 (21.79) 1.730 (43.94) 1.070 (27.18)
.984 (24.99) 1.850 (46.99) 1.190 (30.23)
11/16-24 UNEF 1.157 (29.39) 1.870 (47.50) 1.320 (33.53)
13/16-20 UNEF 1.279 (32.49) 1.940 (49.28) 1.440 (36.58)
15/16-20 UNEF 1.406 (35.71) 2.030 (51.56) 1.570 (39.88)
1 1/16-18 UNEF 1.516 (38.51) 2.200 (55.88) 1.750 (44.45)
1 3/16-18 UNEF 1.642 (41.71) 2.200 (55.88) 1.750 (44.45)
1 5/16-18 UNEF 1.768 (44.91) 2.310 (58.67) 2.000 (50.80)
1 7/16-18 UNEF 1.889 (47.98) 2.310 (58.67) 2.000 (50.80)
319
Table III: Symbol and Finish
Symbol
N
W
X
Z
Electroless Nickel
Cadmium/Olive Drab over Electroless
Nickel (1000 Hour Salt Spray)
Nickel Flurocarbon Polymer
Zinc Nickel
Finish
Table IV: Symbol and Finish
Symbol
K
T
Finish
Nickel Plate
Tin Plate
Table V: (Manufacturer’s Option)
Material
Copper
Stainless Steel
Finish
Tin Plate
Passivated
APPLICATION NOTES
1.
2.
Metric equivalents are given for general information only and
are based on 1.000 inch (25.40 mm).
Dimensions are in inches and apply after plating. Accessory
configuration is optional within the specified dimension
envelope.
Adapter length is measured from the bottom of the accessory
teeth to the adapter that is covered by the braid, The adapter
surface under the braid shall be ribbed knurled or have a
surface roughness of .125 R minimum in accordance with ANSI
B46.1.
Pig tail terminated braid material shall be in accordance with
Table IV. Braid length is defined by Note 1 as shown in the part
or indentifying number (PIN).
Termination band configuration is not controlled. Band with
buckle may exceed the “Z” dimension (See Table II) provided
the band does not interfere with boot attachment, band material
shall be specified as in Table V.
6.
7.
Shrink boot (when required) shall be as specified in AS5258.
Termination of rthe accessory shield with harness shield may
be performed with a AS85049/93 shield support ring or similar
split ring accessory types.
Three (3) holes equally spaced shall be provided and
accommodate .020 (.51) maximum safety wire for the non-self-
locking coupling configuration.
Drain holes will be provided with a.125 (3.2 mm) diameter,
4 places equally spaces (optional, see part number
development). O-Ring not required when drain hole option is
specified.
3.
8.
9.
4.
5.
10. Material/Finish:
Adapter, coupling nut - Al alloy/See Table III
Band - See Table V, manufacturer’s option
Braid - Copper/See Table IV
Printed in U.S.A.
© 2012 Glenair, Inc.
CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-Mail: sales@glenair.com
www.glenair.com
319-15
Shield-Sock
Backshells
AS85049/114
90° RFI/EMI Shield-Sock Shrink Boot Adapter
