225TTA350QSD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 225TTA350QSD

225TTA350QSD: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 350V, 30% +Tol, 10% -Tol, 2.2uF,; CategoryPassive components capacitor; File Size684KB，3 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

225TTA350QSD Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 350V, 30% +Tol, 10% -Tol, 2.2uF,

225TTA350QSD Parametric

Parameter Name	Attribute value
Is Samacsys	N
YTEOL	6
Objectid	4000939603
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	2.2 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
polarity	POLARIZED
ESR	150710 mΩ
negative tolerance	10%
positive tolerance	30%
Rated (DC) voltage (URdc)	350 V
ripple current	27 mA
diameter	8 mm
length	16 mm
method of packing	TR
Number of terminals	2
Package form	Axial
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Is it Rohs certified?	Yes

Preview

Download Datasheet

View All

TTA

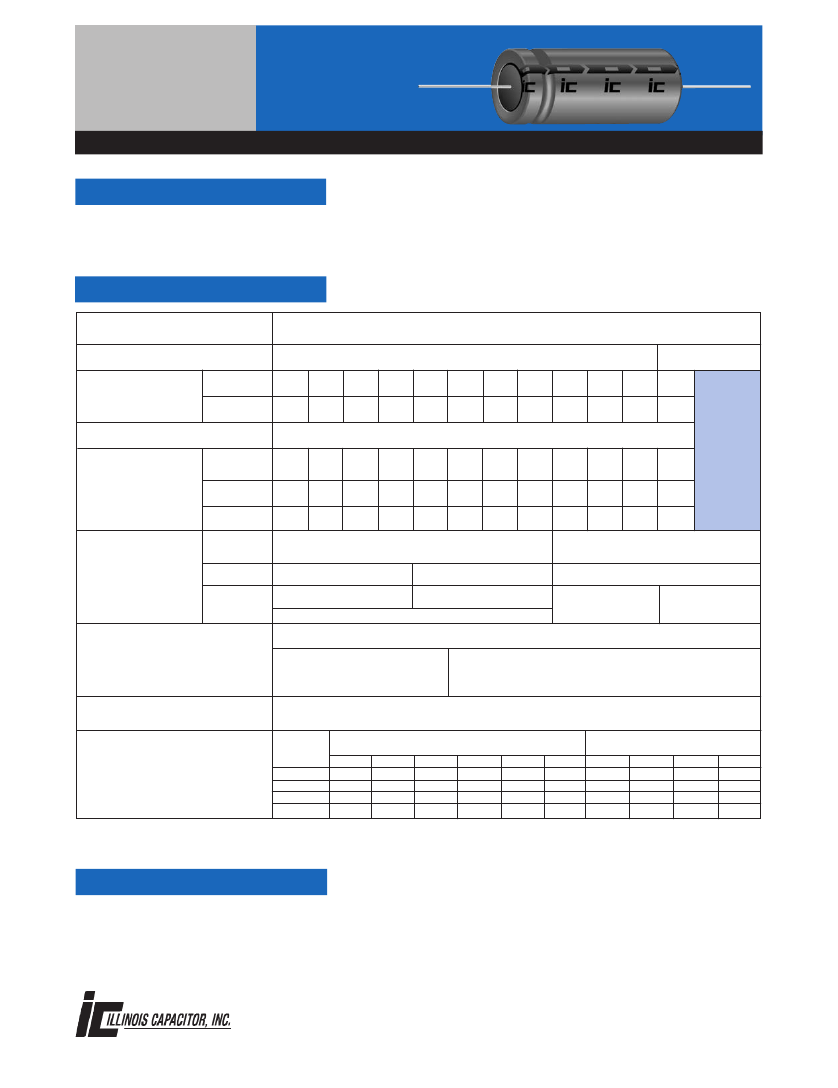

FEATURES

+85°C Standard Axial

Lead Aluminum

Electrolytic

Capacitors

For all general purpose applications

High ripple current ratings

Wide capacitance range:

0.47 µF to 22,000 µF

SPECIFICATIONS

Capacitance Tolerance

Operating Temperature Range

Dissipation Factor

120Hz, 20°C

WVDC

tan

.20

Wide voltage range: 10 WVDC to 450 WVDC

Solvent tolerant end seals standard

(≤ 250 WVDC)

±20% at 120Hz, 20°C

-40°C to +85°C

.16

-25°C to

+85°C

.14

.12

.10

.09

100

.08

160

.20

250

.20

350

.20

450

.25

Note:

For above D.F. specifications, add .02 for every 1,000 µf above 1,000 µf

WVDC

100

160

250

350

450

Impedance Ratio

(Max.) @120Hz

-25°C/20°C

-40°C/20°C

WVDC

Leakage Current

Time

≤

100 WVDC

1 minute

.03 CV or 4 µA

whichever is greater

100 < WVDC

≤

450

2 minutes

.01 CV or 3 µA

CV≤ 1000

.04 CV + 100µA

1 minute

CV> 1000

0.1 CV + 40µA

2,000 hours at 85°C with rated WVDC

Load Life

Capacitance change

Dissipation factor

Leakage current

< 20% of initial measured value

<200% of initial specified value

<Initial specified value

1,000 hours at 85°C with no voltage applied.

Units will meet load life specification.

Shelf life

Capacitance

(µF)

Frequency (Hz)

0.8

120

1.0

400

1.3

1.23

1.16

1.11

1.45

1.36

1.25

1.17

10k

1.65

1.48

1.35

1.25

50k +

1.7

1.53

1.38

1.28

+85

1.0

Temperature (°C)

+70

1.3

+60

1.5

+30

1.8

Ripple Current Multipliers

C≤10

10<C≤100

100<C≤1000

C>1000

SPECIAL ORDER OPTIONS

(See Pages 33 thru 37)

•

Special tolerances: ±10% (K), -10% + 30% (Q)

•

Tape and Reel

•

Epoxy end seal

•

Polyester sleeve
