M85049/63S14N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> M85049/63S14N

M85049/63S14N: Descriptioncircular mil spec strain reliefs & adapters right angle cable tie; CategoryThe connector Connector bracket; File Size237KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049/63S14N Overview

circular mil spec strain reliefs & adapters right angle cable tie

M85049/63S14N Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Factory Lead Time	8 weeks
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	M85049/63

Preview

Download Datasheet

View All

Optional Self-Locking • Optional Ground Lug

CONNECTOR DESIGNATOR:

MIL-DTL-38999 Series I and II

40M38277, PAN 64331

PATT 614, PATT 616

NFC93422 Series HE308 and HE309

Configuration

= Non-Detented

= Self-Locking with Ground Lug

= Non-Detented with Ground Lug

= Self-Locking without Ground Lug

––

= Non Self-Locking

Shell

Size

Finish

= Anodize, Black

= Electroless Nickel

= 1,000 Hour Cadmium Olive Drab

over Electroless Nickel

= Pure Dense Electrodeposited

Aluminum

= Zinc-Nickel, Black

Basic Part Number

M85049/56

= Straight

M85049/57

= 45°

M85049/63

= 90°

M85049/63

OPTIONAL

SELF-LOCKING

COUPLING

TABLE I: Shell Size, Thread, Cable Entry and Backshell Dimensions

Shell

Series I

Size

Shell Size

Series II

Ref.

A Thread

Class 2B

.438-28 UNEF

.562-24 UNEF

.688-24 UNEF

.813-20 UNEF

.938-20 UNEF

1.063-18 UNEF

1.188-18 UNEF

1.313-18 UNEF

1.438-18 UNEF

C Dia

Max

.750

.850

1.000

1.100

1.250

1.400

1.500

1.650

1.750

(19.1)

(21.6)

(25.4)

(27.9)

(31.8)

(35.6)

(38.1)

(41.9)

(44.5)

E Dia

Max

.860

.980

1.160

1.280

1.410

1.520

1.640

1.770

1.890

Cable Entry

Max

.895

.955

1.135

1.195

1.325

1.445

1.585

(22.7)

(24.3)

(28.8)

(30.4)

(33.7)

(36.7)

(40.3)

Max

1.210

1.390

(30.7)

(35.3)

Max

1.220

1.290

1.620

1.660

1.720

1.790

1.850

1.910

(31.0)

(32.8)

(41.1)

(42.2)

(43.7)

(45.5)

(47.0)

(48.5)

(21.8) .264 (6.7)

(24.9) .392 (10.0)

(29.5) .506 (12.9)

(32.5) .631 (16.0)

(35.8) .756 (19.2)

(38.6) .845 (21.5)

(41.7) .970 (24.6)

(45.0) 1.095 (27.8)

(48.0) 1.220 (31.0)

APPLICATION NOTES

Assembly identified with manufacturer’s name and part number, space permitting.

For complete dimensions, see the applicable Military Specification.

Cable entry is defined as the accomodation range for the wire bundle or cable. Dimensions shown are not

intended for inspection criteria.

Metric dimensions (mm) are in parentheses.

CAGE Codes 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com

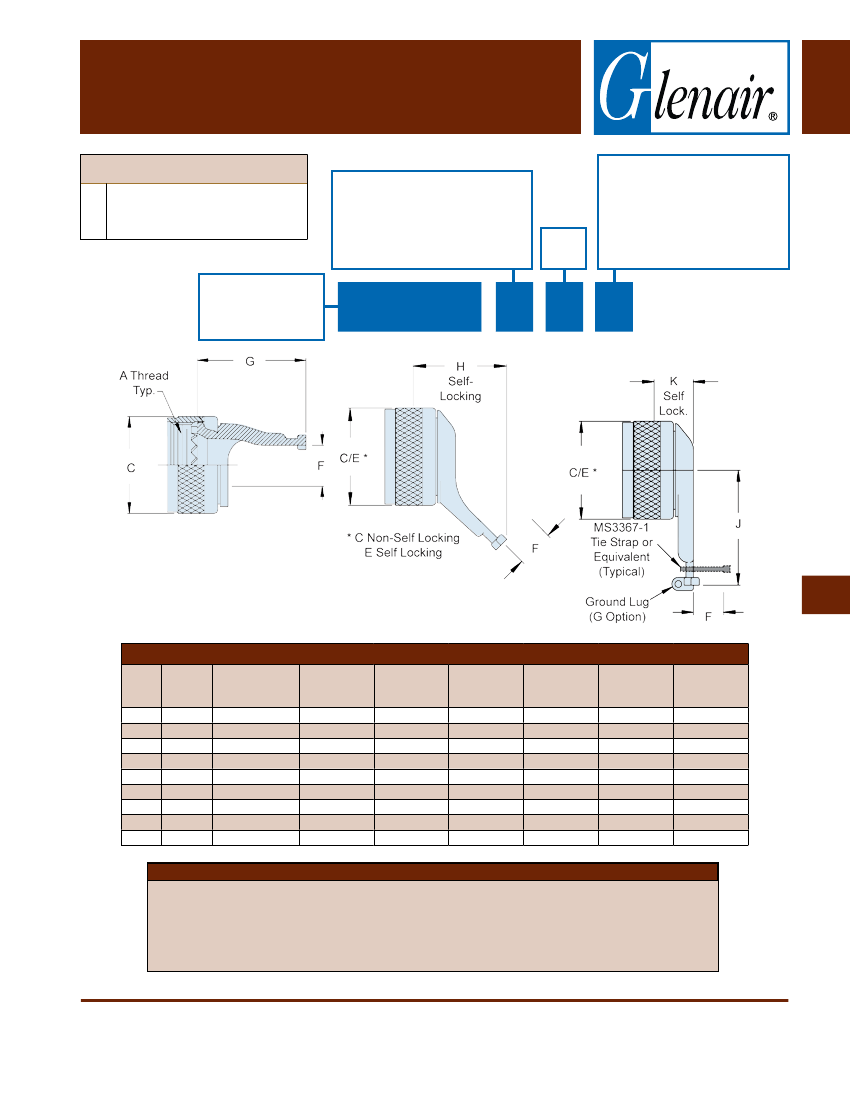

45-5

Qwik-Ty®

Strain Reliefs

AS85049/56, AS85049/57 and AS85049/63

Straight, 45° and 90° Qwik-Ty Strain Reliefs
