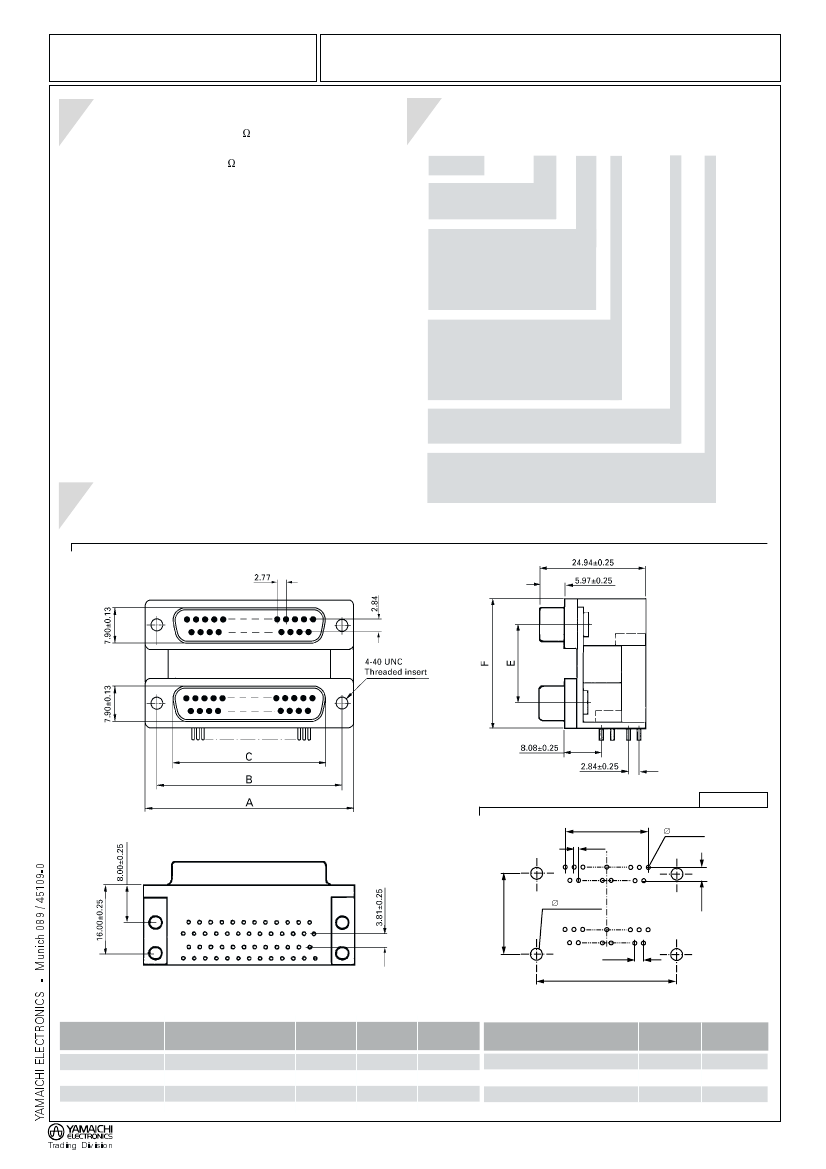

D Series
(Standard D-Sub)
Dual Port Solder Dip
Specifications
9
9
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Current Rating:
Operating Temp. Range:
5,000M min.
1,000 V AC
10m max.
5A
–55°C to +105°C
Part Number
(Details)
D
Series
Connector Version:
DP = Dual Port
No. of Contacts
(Top / Bottom)
:
01 = 9 / 9
02 = 15 / 15
03 = 25 / 25
10 = 37 / 37
Conector Types (Top / Bottom):
1 = Male / Male
2 = Male / Female
3 = Female / Male
4 = Female / Female
Vertical Distance between Connectors:
S = 15.88mm, M = 19.05mm, L = 22.86mm
Assembly:
1 = Snap-in + 4-40 Clinch Nut (Standard)
2 = 4-40 Threaded
DP - 01 *
*
1
Materials and Finish
Shell:
Steel, Tin plated
Insulator: Polyester Resin (glass filled)
Fiber reinforced, UL94V-0
Contacts: Stamped Copper Alloy
Plating:
Gold over Nickel
Applicable Dimensions
(Reference Only)
Outline Connector Dimensions
Recommended PCB Layouts
1.38
Top View
8.00
Part Number No. of Contacts
DDP-01**1
DDP-02**1
DDP-03**1
DDP-10**1
9/9
15 / 15
25 / 25
37 / 37
A
30.81
39.14
53.04
69.32
B
24.99
33.32
47.04
63.50
C
16.33
24.66
38.38
54.84
Vertical Distances
Type S
Type M
Type L
SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE – DIMENSIONS IN MILLIMETER
4-
3.05 ±0.05
2.77
B
Mating Face
E
15.88
19.05
22.86
2.84
33.24
1.1 ±0.05
n o i s i v i D g n i d a rT
F
28.42
31.60
35.41
