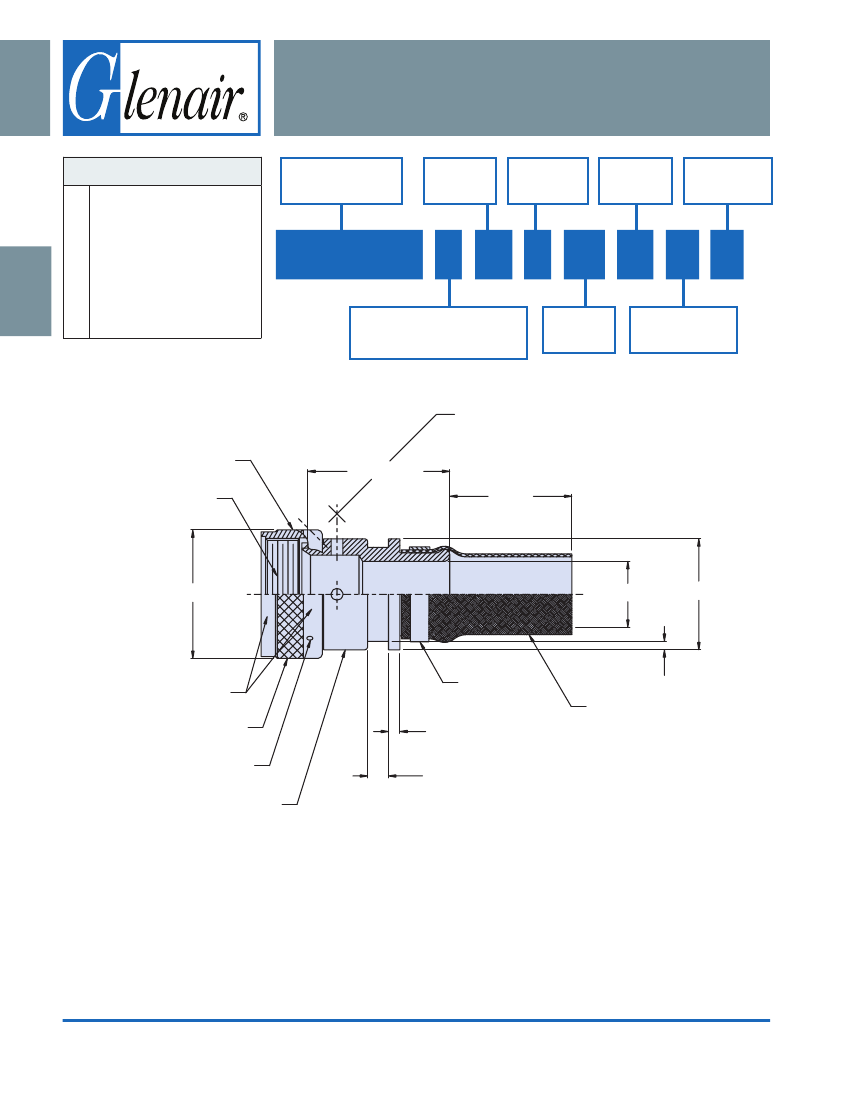

Shrink Boot Adapter with Optional Detented or Non-Detented
Self-Locking or Non-Self-Locking Coupling Nut
CONNECTOR DESIGNATOR:
AS50151 Series AS34001
MIL-DTL-26482 Series II
AS81703 Series III
MIL-DTL-83723 Series I & III
40M39569, DEF 5326-3
EN 2997, EN 3646
ESC 10, ESC 11, LN 29504
NFC93422 Series HE302
PAN 6432-1, PAN 6432-2
PATT 602
Product Series and
Basic Part Number
Shell Size
(Table I)
Shield Finish
(Table IV)
Entry Size
(Table II)
Drain Hole
(Omit for None)
AS85049/109
Straight RFI/EMI Shield-Sock Metal
B
AS85049
A
M85049/109
S
10
T
W
Finish
(Table III)
03
-
6
D
S
= Detented, Self-Locking
–
= Non-Self-Locking (Use Dash)
N
= Non-Detented, Self-Locking
Braid Length
1 Inch Increments,
6” Min., 18” Max
See Note 9
Coupling Nut
A Thread
1.19 (30.2)
Length
±.50 (12.7)
B
W
Z
Marking Location
Optional
Knurl Style Mfr
Option - Typ
See Note 8
Adapter Body
See Note 5
.075 (1.9)
(Ref)
.140 (3.56)
.130 (3.30)
Y
Single Layer Shield
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-114
E-Mail: sales@glenair.com
Shrink Boot Adapter with Optional Detented or Non-Detented
Self-Locking or Non-Self-Locking Coupling Nut
TABLE I: Shell Size, Entry Size, Thread and Dimensions
Accessory
Shell Size
Code
03
08
10
12
14
16
18
20
22
24
28
32
36
40
44
48
61
Allowable
Cable
Entry Size
01
01
01-03
01-05
02-06
04-08
05-09
07-11
09-13
11-14
14-16
16-17
17-19
19-21
21-23
23-25
12-14
MIL-DTL-26482, Series II MIL-DTL-5015,
AS81703, Series III
MIL-DTL-83723, Series III Series I and II
(Ref)
(Ref)
(Ref)
Shell Size
Shell Size
Shell Size
TABLE II: Entry Size
and Dimensions
B Max
Diameter
Y
Entry
W
+.008 (.20)
Size ± .020 (.51)
-.000 (.00)
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
.250 (6.4)
.312 (7.9)
.375 (9.5)
.438 (11.1)
.500 (12.7)
.562 (14.3)
.625 (15.9)
.688 (17.5)
.750 (19.1)
.812 (20.6)
.875 (22.2)
.938 (23.8)
1.000 (25.4)
1.125 (28.6)
1,250 (31.8)
1.375 (34.9)
1.500 (38.1)
1.625 (41.3)
1.750 (44.5)
1.875 (47.6)
2.000 (50.8)
2.125 (54.0)
2.250 (57.2)
2.375 (60.3)
2.500 (63.5)
.044 (1.12)
.044 (1.12)
.044 (1.12)
.044 (1.12)
.044 (1.12)
.044 (1.12)
.044 (1.12)
.044 (1.12)
.069 (1.75)
.069 (1.75)
.069 (1.75)
.069 (1.75)
.069 (1.75)
.069 (1.75)
.069 (1.75)
.069 (1.75)
.086 (2.18)
.086 (2.18)
.086 (2.18)
.086 (2.18)
.086 (2.18)
.086 (2.18)
.086 (2.18)
.086 (2.18)
.086 (2.18)
z
Max
.560 (14.2)
.630 (16.0)
.690 (17.5)
.750 (19.1)
.820 (20.8)
.890 (22.6)
.950 (24.1)
1.020 (25.9)
1.120 (28.4)
1.200 (30.5)
1.270 (32.3)
1.260 (32.0)
1.370 (34.8)
1.470 (37.3)
1.600 (40.6)
1.710 (43.4)
1.840 (46.7)
2.000 (50.8)
2.120 (53.8)
2.270 (57.7)
2.440 (62.0)
2.600 (66.0)
2.750 (69.9)
2.900 (73.7)
3.060 (77.7)
A
Thread Class 2B
9/16-24 UNEF
1/2-20 UNF
5/8-24 UNEF
3/4-20 UNEF
7.8-20 UNEF
1-20 UNEF
1 1/16-18 UNEF
1 3/16-18 UNEF
1 5/16-18 UNEF
1 7/16-18 UNEF
1 3/4-18 UNS
2-18 UNS
2 1/4-16 UN
2 1/2-16 UN
2 3/4-16 UN
3-16 UN
1 1/2-18 UNEF
3
-
-
7
12
19
27
37
-
-
-
-
-
-
-
-
61
-
8
10
12
14
16
18
20
22
24
-
-
-
-
-
-
-
-
8S
10S & 10SL
12S & 12
14S & 14
16S & 16
18
20
22
24
28
32
36
40
44
48
-
.855 (22.48)
.885 (22.48)
1.010 (25.65)
1.135 (28.83)
1.260 (32.00)
1.385 (35.18)
1.510 (38.35)
1.635 (41.53)
1.760 (44.70)
1.885 (47.88)
2.135 (54.23)
2.395 (60.83)
2.635 (66.93)
2.885 (73.28)
3.135 (76.63)
3.385 (85.98)
1.885 (47.88)
B
Table III: Symbol and Finish
Symbol
N
W
X
Z
Electroless Nickel
Cadmium/Olive Drab over Electroless
Nickel (1000 Hour Salt Spray)
Nickel Flurocarbon Polymer
Zinc Nickel
Finish
Table IV: Symbol and Finish
Symbol
K
T
Finish
Nickel Plate
Tin Plate
Table V: (Manufacturer’s Option)
Material
Copper
Stainless Steel
Finish
Tin Plate
Passivated
APPLICATION NOTES
1.
2.
Metric equivalents are given for general information only and
are based on 1.000 inch (25.40 mm).
Dimensions are in inches and apply after plating. Accessory
configuration is optional within the specified dimension
envelope.
Adapter length is measured from the bottom of the accessory
teeth to the adapter that is covered by the braid, The adapter
surface under the braid shall be ribbed knurled or have a
surface roughness of .125 R minimum in accordance with ANSI
B46.1.
Pig tail terminated braid material shall be in accordance with
TableIV. Braid length is defined by Note 1 as shown in the part
or indentifying number (PIN).
Termination band configuration is not controlled. Band with
buckle may exceed the “Z” dimension (See Table II) provided
the band does not interfere with boot attachment, band material
shall be specified as in Table V.
6.
7.
Shrink boot (when required) shall be as specified in AS5258.
Termination of rthe accessory shield with harness shield
may be performed with a AS85049/93 shield support ring or
similar split ring accessory types.
Three (3) holes equally spaced shall be provided and
accommodate .020 (.51) maximum safety wire for the non-
self-locking coupling configuration.
Drain holes will be provided with a.125 (3.2 mm) diameter,
4 places equally spaces (optional, see part number
development).
3.
8.
9.
4.
5.
10. Material/Finish:
Adapter, coupling nut - Al alloy/See Table III
Band - See Table V, manufacturer’s option
Braid - Copper/See Table IV
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-115
E-Mail: sales@glenair.com
AS85049
AS85049/109
Straight RFI/EMI Shield-Sock Metal
Training Edition
