586-2405-220: DescriptionSingle Color LED, Blue, Tinted, T3-1/4, 9mm, PACKAGE-1; CategoryLED optoelectronic/LED photoelectric; File Size100KB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric Compare View All

586-2405-220 Overview

Single Color LED, Blue, Tinted, T3-1/4, 9mm, PACKAGE-1

586-2405-220 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	PACKAGE-1
Reach Compliance Code	compliant
color	BLUE
Configuration	SINGLE
JESD-609 code	e0
Lens type	TINTED
Nominal luminous intensity	200.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	1
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED
total height	15.65 mm
method of packing	BULK
peak wavelength	470 nm
shape	ROUND
size	9 mm
surface mount	NO
T code	T3-1/4
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

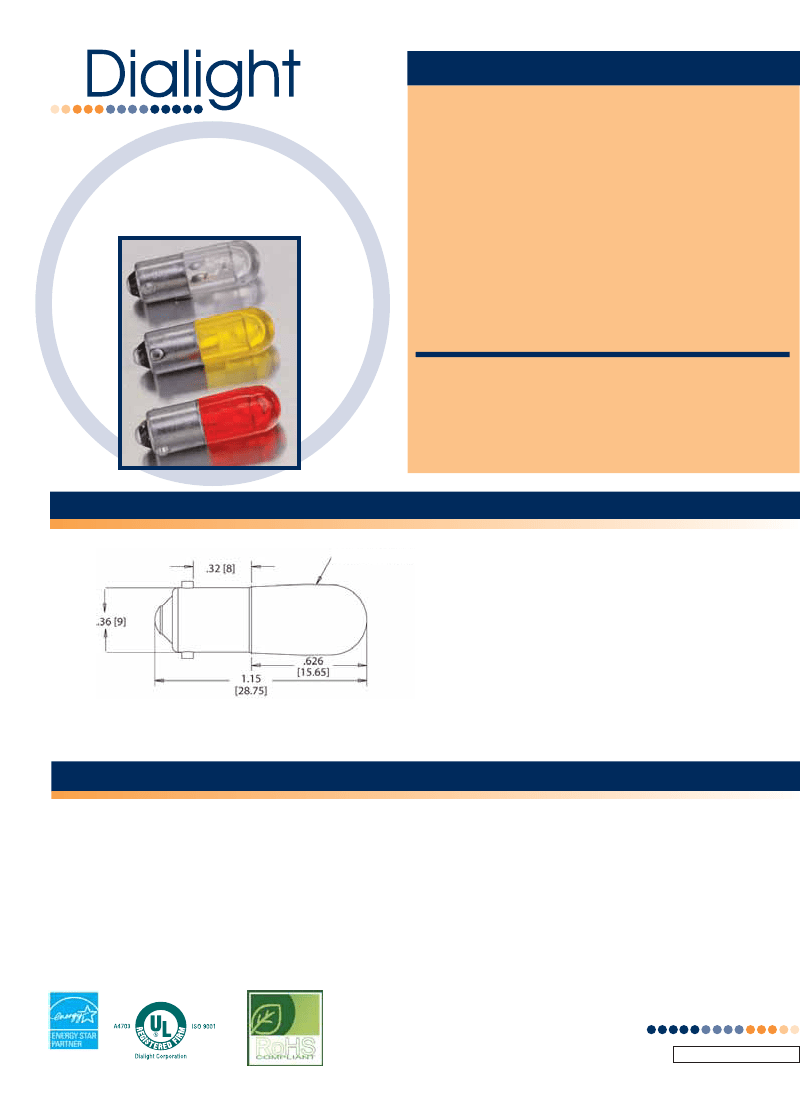

FEATURES / BENEFITS

RoHS Compliant

Unique VIP technology provides 6-36 VDC operation

586 VIP Series

Variable Input 6-36 Volts DC

High brightness with low current draw - uses up to 90%

less energy than incandescent

Long life - up to 100K hours

True non-polarized configuration

No heat generated

Mounts directly into industry-standard socket

Resistant to shock and vibration

AlInGaP and InGaN technology

Colors include red, green, yellow, blue and white

Single Chip BASED LED

T 3 /

MINIATURE BAYONET BASE (BA9S)

Dialight's line of based LED lamps is designed to directly

replace many popular subminiature and miniature incandescent

lamps. The benefits of LED technology over incandescent are

significant: They offer long life, are shock resistant, withstand

vibration and provide energy conservation.

SPECIFICATIONS

Tinted Color Lens

Operating Voltage: 6-36 VDC

Operating temperature: -30

to +

Storage temperature: -40

to +

100

Replaces incandescent lamp numbers: 44,

47, 313, 755,1815, 1819, 1847, 1850, 1866,

1889, 1891, 1892, 1893 and 1895*

Measurements are typical

Dimensions are inches [mm]

See Dialight’s Incandescent lamp/based LED cross

reference for a complete listing

CONSIDERATIONS

Since lens caps act as filters for the light emitted from the based LED, it is important to match the emitting color of the LED. If not

matched properly, the overall light output may be substantially reduced. Dialight recommends using transparent lenses, which will

optimize the light output.

For 120 VAC products please see our Cluster lamp.

Operation of the based LED at a higher voltage should not exceed 10% above the recommended voltage.

Dialight does not recommend that based LED lamps be used in neon sockets.

Dialight reserves the right to make changes at any time

in order to supply the best product possible.

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

MDEL586MBVIP001_B

586-2405-220 Related Products

	586-2405-220	586-2401-220	586-2402-220	586-2403-220	586-2406-220
Description	Single Color LED, Blue, Tinted, T3-1/4, 9mm, PACKAGE-1	Single Color LED, Red, Tinted, T3-1/4, 9mm, PACKAGE-1	Single Color LED, Green, Tinted, T3-1/4, 9mm, PACKAGE-1	Single Color LED, Yellow, Tinted, T3-1/4, 9mm, PACKAGE-1	Single Color LED, White, Tinted, T3-1/4, 9mm, PACKAGE-1
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	PACKAGE-1	PACKAGE-1	PACKAGE-1	PACKAGE-1	PACKAGE-1
Reach Compliance Code	compliant	compliant	compliant	compliant	compli
color	BLUE	RED	GREEN	YELLOW	WHITE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
JESD-609 code	e0	e0	e0	e0	e0
Lens type	TINTED	TINTED	TINTED	TINTED	TINTED
Nominal luminous intensity	200.0 mcd	1000.0 mcd	1500.0 mcd	550.0 mcd	650.0 mcd
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Number of functions	1	1	1	1	1
Number of terminals	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	15.65 mm	15.65 mm	15.65 mm	15.65 mm	15.65 mm
method of packing	BULK	BULK	BULK	BULK	BULK
shape	ROUND	ROUND	ROUND	ROUND	ROUND
size	9 mm	9 mm	9 mm	9 mm	9 mm
surface mount	NO	NO	NO	NO	NO
T code	T3-1/4	T3-1/4	T3-1/4	T3-1/4	T3-1/4
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
peak wavelength	470 nm	630 nm	525 nm	592 nm	-
Base Number Matches	1	1	1	1	-
