FUB4X30PP datasheet, PDF - EEWORLD Datasheet

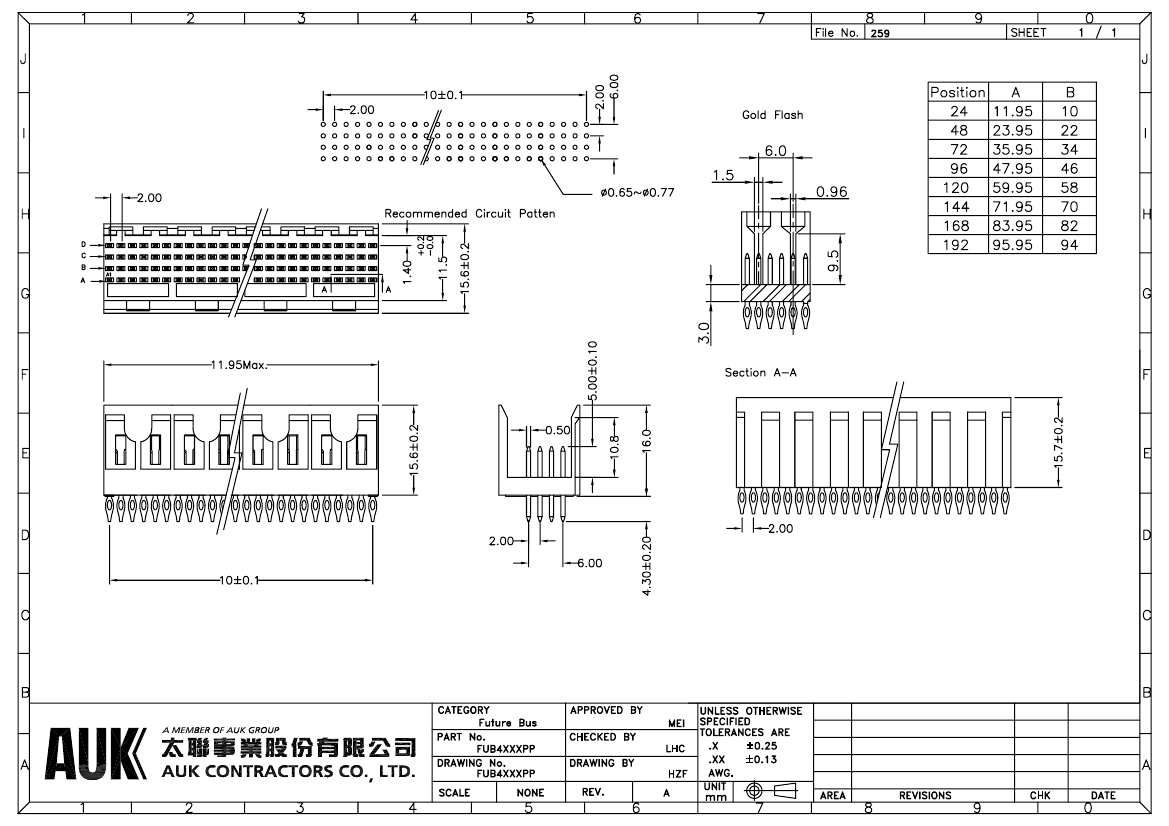

FUB4X30PP: DescriptionBoard Connector, 120 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size106KB，1 Pages; ManufacturerAUK Contractors Co., Ltd.

Download Datasheet Parametric View All

FUB4X30PP Overview

Board Connector, 120 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle

Parameter Name	Attribute value
Filter function	NO
polarization key	POLARIZED HOUSING
Objectid	304401439
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
body width	0.614 inch
subject depth	0.618 inch
body length	2.36 inch
Terminal length	0.169 inch
Installation type	BOARD
Total number of contacts	120
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Number of rows loaded	4
Terminal pitch	2.0066 mm
Body/casing type	RECEPTACLE
Installation method	STRAIGHT
PCB row number	4
PCB contact pattern	RECTANGULAR
Termination type	PRESS FIT
contact mode	RECTANGULAR
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Number of connectors	ONE
Contact completed and terminated	GOLD
Contact style	SQ PIN-SKT
Installation option 1	LOCKING
PCB contact row spacing	2.0066 mm
