Crimp Ring &
Banding Backshells
CONNECTOR DESIGNATOR:
AS85049/88, AS85049/89 and AS85049/90
Straight, 45° and 90³ Banding Backshells
with Self-Locking Coupling
––
= Detented
N
= Non-Detented
H
MIL-DTL-38999 Series III and IV
EN3645
M85049/88
-
N
Basic Part Number
M85049/88
= Straight
M85049/89
= 45°
M85049/90
= 90°
17
Shell Size
(Table I)
P
02
Entry Size
(Table I)
O-Ring Typ
Finish
(Table II)
44

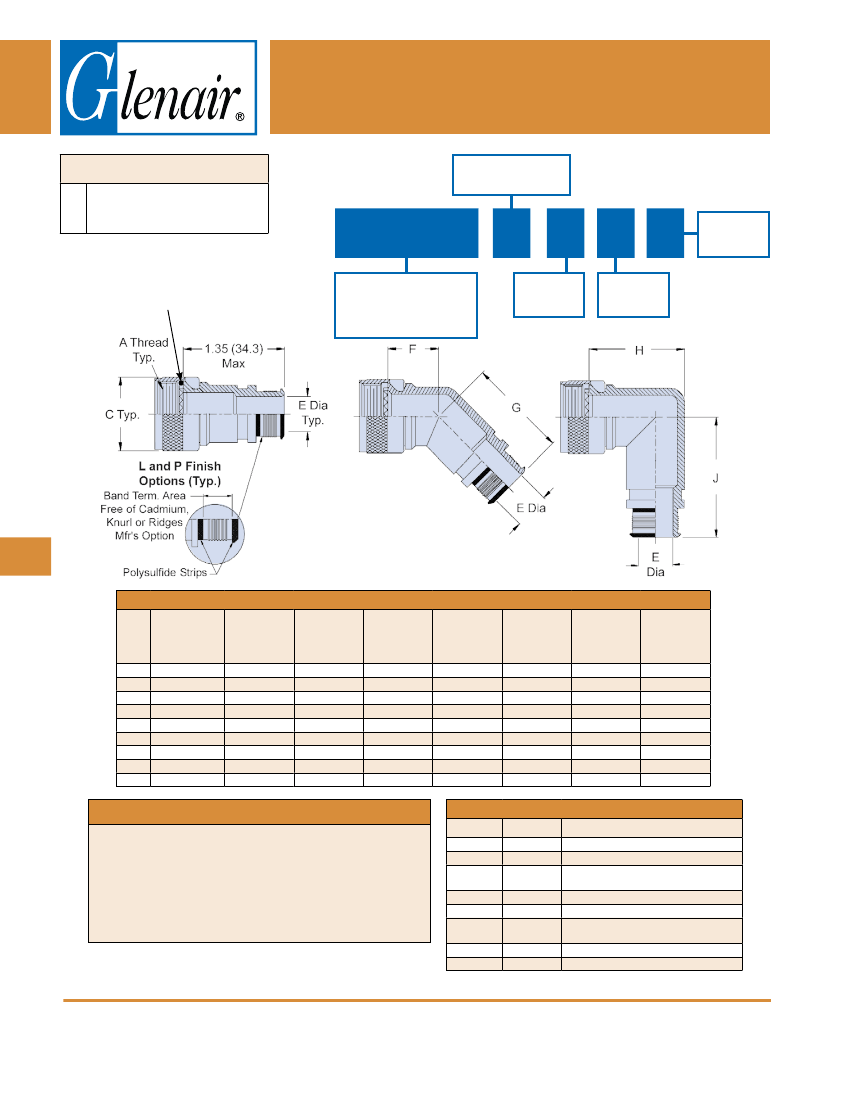

TABLE I: Shell Size, Cable Entry and Backshell Dimensions
Shell
Size
9
11
13
15
17
19
21
23
25
A Thread
Class 2B
M12 X 1 - 6H
M15 X 1 - 6H
M18 X 1 - 6H
M22 X 1 - 6H
M25 X 1 - 6H
M28 X 1 - 6H
M31 X 1 - 6H
M34 X 1 - 6H
M37 X 1 - 6H
C Dia
Max
.860
.990
1.160
1.280
1.410
1.520
1.640
1.770
1.890
(21.8)
(25.1)
(29.5)
(32.5)
(35.8)
(38.6)
(41.7)
(45.0)
(48.0)
E Dia
Cable Entry
Size 02
±.010 (0.30)
N/A
N/A
.312 (7.9)
.438 (11.1)
.500 (12.7)
.625 (15.9)
.625 (15.9)
.688 (17.5)
.750 (19.1)
E Dia
Cable Entry
Size 03
±.010 (0.30)
.250
.312
.438
.562
.625
.750
.812
.938
1.000
(6.4)
(7.9)
(11.1)
(14.3)
(15.9)
(19.1)
(20.6)
(23.8)
(25.4)
F
Max
1.010
1.030
1.060
1.080
1.110
1.120
1.150
1.170
1.200
(25.7)
(26.2)
(26.9)
(27.4)
(28.2)
(28.4)
(29.2)
(29.7)
(30.5)
G
Max
1.160
1.190
1.210
1.240
1.260
1.270
1.300
1.330
1.350
(29.5)
(30.2)
(30.7)
(31.5)
(32.0)
(32.3)
(33.0)
(33.8)
(34.3)
H
Max
1.375
1.437
1.562
1.687
1.750
1.875
1.938
2.062
2.125
(34.9)
(36.5)
(39.7)
(42.8)
(44.5)
(47.6)
(49.2)
(52.4)
(54.0)
J
Max
1.417
1.480
1.553
1.614
1.678
1.733
1.796
1.859
1.919
(36.0)
(37.6)
(39.4)
(41.0)
(42.6)
(44.0)
(45.6)
(47.2)
(48.7)
APPLICATION NOTES
1.
2.
3.
4.
Assembly identified with manufacturer’s name and part
number, space permitting.
For complete dimensions, see the applicable Military
Specification.
Metric dimensions (mm) are in parentheses.
For use with AS85049/128 Bands.
TABLE II: Finish and Material
Aluminum Composite
G
N
P
W
X
YP
Z
ZP
Finish Description
Not Available Electroless Nickel (Space Grade)
M
Electroless Nickel
Cadmium Olive Drab over Electroless
L
Nickel, Selective Plating
J
Cadmium Olive Drab
XC
Nickel Fluorocarbon Polymer
Pure Dense Electrodeposited
YL
Aluminum, Selective Plating
ZC
Zinc Nickel
ZL
Zinc Nickel, Selective Plating
© 2012 Glenair, Inc.
CAGE Codes 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-Mail: sales@glenair.com
www.glenair.com
44-10
