D-20-40556 Overview

Connector Accessory

D-20-40556 Parametric

Parameter NameAttribute value
MakerGlenair
Reach Compliance Codecompliant
Connector bracket typeCONNECTOR ACCESSORY
Manufacturer's serial number927-072
Base Number Matches1

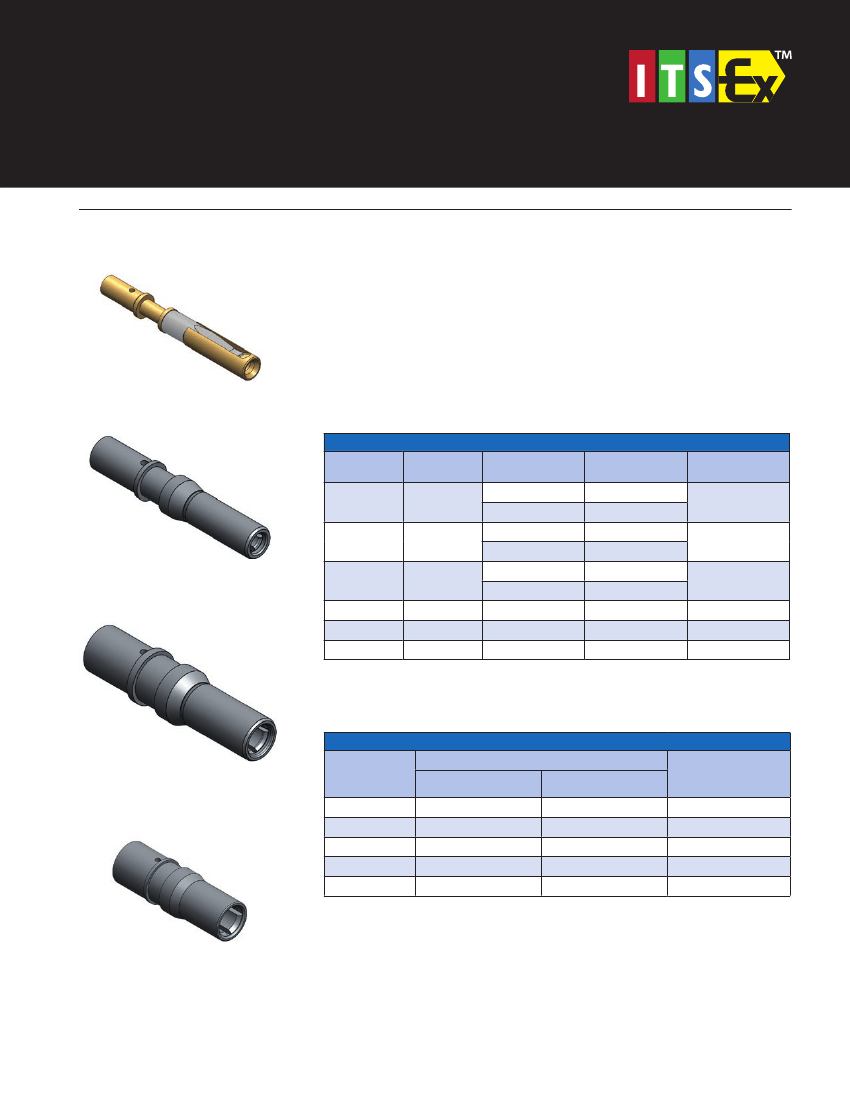

SERIES 927-072
Contacts, Tools, and Accessories
Socket Crimp Contacts
SOCKET CRIMP CONTACTS
Series 927-072 contacts for size #16s through size #0 wire. Copper alloy with silver
or gold plating, Terminate to wire with standard crimp tools.
Contacts are front-release. Use in series 927-072 connectors.
Socket contact with silver plating. For properties please consult table Materials on
page 14 row Item Crimp Socket and Pin Contacts. Highly conductive silver plating
is ideal for high current applications.
Socket contact with gold plating is used to improve protection from corrosive
environments. For Electric properties, please consult table on page 14.
Socket Crimp Contacts Table
Size
[AWG]
16S*
16
12
8
4
0
Wire Size
[AWG]
18-16
18-16
12
8
4
0
Finish
Silver
Gold
Silver
Gold
Silver
Gold
Silver
Silver
Silver
Socket Contact
Part Number
D-20-40552
D-21-40552
D-20-40556
D-21-40556
D-20-40560
D-21-40560
D-21-40793
D-21-113474-4S-1
D-21-113474-1S
Contact type
Spring clip
Spring clip
Spring clip
Hood
Hood
Hood
* S = short (see length contacts)
Other contact wire size on request.
Socket Contact Current Ratings and Resistance
Contact Size
AWG
16 – 16s
12
8
4
0
Max Rated Current [A]
IAW N.E.C. (1)
16
30
50
90
155
IAW VG95234 (2)
20
32
60
120
220
Max Contact
Resistance [mW]
6
3
1
0,5
0,3
(1) Non-circuit breaking contacts rated current as per N.E.C. (National Electrical Code) based on arcing
control. Use a cable of minimum rated temperature of 90°C.
(2) Values extrapolated from rated current chart of VG95234-1, at ambient temperature of 40°C.
© 2016 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 927-072 ITS-Ex
Dimensions in millimeters are subject to change without notice.
49
