User manual
UM EN THERMOMARK ROLL

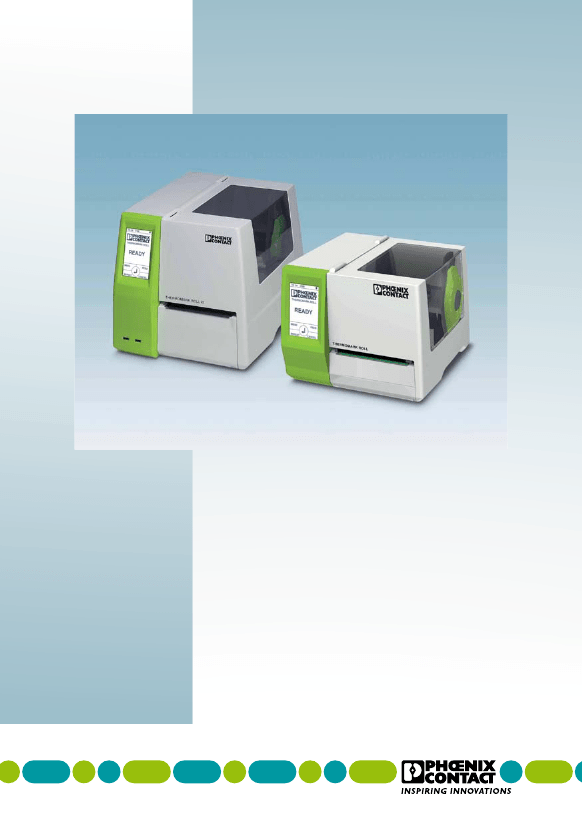

Thermal Transfer Printer for Labels and
Continuous Media
User manual
Thermal Transfer Printer for Labels and Continuous Media
2012-04-13
Designation:
Version:
Order No.:
UM EN THERMOMARK ROLL
03
–
This user manual is valid for:
Designation
Order no.
THERMOMARK ROLL
THERMOMARK ROLL AR
THERMOMARK ROLL X1
5146749
5146723
5146477
104611_en_03
PHOENIX CONTACT
i
3
General terms and conditions of use for technical documentation
Phoenix Contact reserves the right to alter, correct, and/or improve the technical doc-
umentation and the products described in the technical documentation at its own dis-
cretion and without giving prior notice, insofar as this is reasonable for the user. The
same applies to any technical changes that serve the purpose of technical progress.
The receipt of technical documentation (in particular user documentation) does not
constitute any further duty on the part of Phoenix Contact to furnish information on
modifications to products and/or technical documentation. You are responsible to
verify the suitability and intended use of the products in your specific application, in
particular with regard to observing the applicable standards and regulations. All infor-
mation made available in the technical data is supplied without any accompanying
guarantee, whether expressly mentioned, implied or tacitly assumed.
In general, the provisions of the current standard Terms and Conditions of
Phoenix Contact apply exclusively, in particular as concerns any warranty liability.
This manual, including all illustrations contained herein, is copyright protected. Any
changes to the contents or the publication of extracts of this document is prohibited.
Phoenix Contact reserves the right to register its own intellectual property rights for
the product identifications of Phoenix Contact products that are used here. Registra-
tion of such intellectual property rights by third parties is prohibited.
Other product identifications may be afforded legal protection, even where they may
not be indicated as such.
Internet
How to contact us
Up-to-date information on Phoenix Contact products and our Terms and
Conditions can be found on the Internet at:
www.phoenixcontact.com
Make sure you always use the latest documentation.
It can be downloaded at:
www.phoenixcontact.net/catalog
Subsidiaries
Published by
If there are any problems that cannot be solved using the documentation,
please contact your Phoenix Contact subsidiary.
Subsidiary contact information is available at
www.phoenixcontact.com.
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstraße 8
32825 Blomberg
GERMANY
Should you have any suggestions or recommendations for improvement of
the contents and layout of our manuals, please send your comments to:
tecdoc@phoenixcontact.com
104611_en_03
PHOENIX CONTACT
ii
4
THERMOMARK ROLL
Note on the print media
The result of the print depends essentially on the suitable combination of
material and print ribbon.
NOTE: Use suitable print media
A low-quality ink ribbon can lead to premature wear on the printhead and
result in a poor print image. Use only print media from Phoenix Contact.
You can find suitable print media in the Phoenix Contact catalog.
Change language of Touch Screen
The language of the Touch Screen is set to English by default. To select
a different language, proceed as follows:
•
•
•
•
•
•
•
Touch
Select
With
to open the menu.
then for the settings.
, you access the regional settings.
symbol.
Touch the
Use the horizontal arrows to select your language.
Confirm your selection with
Touch
to return to the menu.
.
iii
PHOENIX CONTACT
104611_en_03
5
Technical data
THERMOMARK ROLL
THERMOMARK ROLL AR
Thermal transfer, thermal direct
32 Bit/400 MHz
300 dpi x 300 dpi
(12 points/mm x 12 points/mm)
THERMOMARK ROLL X1
300 dpi x 300 dpi
(12 points/mm x 12 points/mm)
32 Bit/400 MHz
Resolution
Print mode
Material sensor
Position
Type
CPU
Thermal transfer, thermal direct
Center
Detection
Print speed
Print width
Print length
Gap sensor
Center
Label gap, black mark and punch-
hole mark
At least 5 mm, maximum 1000 mm
Maximum 104 mm
30 mm/s ... 125 mm/s
Gap sensor
Label gap, black mark and punch-
hole mark
At least 5 mm, maximum 1000 mm
Maximum 104 mm
30 mm/s ... 125 mm/s
Print medium
Outside diameter of the roll of la-
bels
Internal core diameter
Length
Maximum 152 mm
38.1 mm … 76 mm
Maximum 300 m
Maximum 205 mm
38.1 mm ... 76 mm
Maximum 300 m
Ink ribbon
Outside diameter of the ink ribbon
reel
Internal core diameter
Interfaces
Ink side
Maximum 68 mm
25.4 mm
Outside
USB 2.0, Full speed slave,
Ethernet 10/100Base-T
Maximum 68 mm
25.4 mm
Outside
USB 2.0, Full speed slave,
Ethernet 10/100Base-T
1 x USB master, 500 mA (back side)
Display and Operation
Voltage
Temperature
Operation
Bearings
Humidity
Transport
Operation
Bearings
Transport
Touch display with 160 x 255 pixels,
96.31 mm diagonal
Maximal 100 W
1 x USB master, 500 mA (back side)
Touch display with 160 x 255 pixels,
96.31 mm diagonal
Maximal 100 W
2 x USB master, 100 mA (front side)
Power
100 V AC ... 240 V AC, 50/60 Hz, PFC
100 V AC ... 240 V AC, 50/60 Hz, PFC
+5 °C ... +35 °C
0 °C ... +60 °C
-25 °C ... +60 °C
10 % ... 85 %, not condensing
20 % ... 80 %, not condensing
20 % ... 80 %, not condensing
+5 °C ... +35 °C
0 °C ... +60 °C
-25 °C ... +60 °C
10 % ... 85 %, not condensing
20 % ... 80 %, not condensing
20 % ... 80 %, not condensing
104611_en_03
PHOENIX CONTACT
iv
